PVL Series Solenoid Valve
Ordering Code
5 / 2 or 5 / 3 Pneumatic & Solenoid Power Valves
Stand - alone and without subbase Valve
Available in stand - alone and stacking versions, these 5 / 2 way are connected directly to the body .Extremely compact, the valve blocks are traversed by the pressure common and the two exhaust commons .They can easily install on plane .
The control function of the valves
1. Either by pneumatic piloting
2. By a piloting solenoid by an electrical signal
3. By auxiliary manual control for setting or adjustment
General Characteristics Of The Sliding Shaft Valve
| Model | PVL - 5S - 02 ( M ) | PV L- 5D - 02 ( M ) | PVL - 5 / 3 - 02 ( M ) |
|---|---|---|---|
| Permissible pressure | 3 ~ 9 bar ( 0.3 ~ 0.9 Mpa ) |
2 ~ 9 bar ( 0.2 ~ 0.9 Mpa ) |
3 ~ 9bar ( 0.3 ~ 0.9 Mpa ) |
| Flow rate | 1400 Nl / min | ||
| Operating temperature | - 15 ˚ C to + 60 ˚ C | ||
| Permissible fluids | Air or neutral gas 50 m lubricated or not | ||
| Mechanical life ( 6 bar with dry air at 20 ˚ C ) | 30 million ( 3x10 6) |
||
| Materials | Nylon - glass fiber impregnated | ||
5/2 Or 5/3 Pneumatic Valve And Solenoid Valve Joint 1/4 "
Electrical Piloting or Pneumatic Piloting System
P
Connector for pneumatic piloting
| Function | Reference | Weight Kg |
|---|---|---|
| Monosable Spring return |
PVL - 5S - 02 - ＊ - P | |
| 0.182 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL - 5D - 02 - ＊ - P | |
| 0.181 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL - 5 / 3＊ - 02 -＊ - P | C 0.251 |
| E 0.191 | ||
| P 0.192 |
P
Pneumatic drive
| Function | Connectors | Reference | Weight Kg |
|---|---|---|---|
| PVA - P115 | |||
| Gas guide block attached manual functions | M5 dental mouth | 0.008 | |
S
General type with connector
| Function | Reference | Weight Kg |
|---|---|---|
| Monosable Spring return |
PVL - 5S - 02-＊ - S - ＊ | |
| 0.280 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL - 5D - 02 - ＊ - S - * | |
| 0.380 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL - 5 / 3 ＊ - 02 - ＊ - S - ＊ | C 0.445 |
| E 0.385 | ||
| P 0.385 |
S
General electromagnetic drive
| Function | Voltage | Reference | Weight Kg |
|---|---|---|---|
| AMISCO | DC24 V | 0709SD02403ZN | 0.072 |
| AC115V | 0709SD11503ZN | 0.072 | |
| AC230V | 0709SD23003ZN | 0.072 |
N
Solenoid actuators with connector
| Function | Reference | Weight Kg |
|---|---|---|
| Monosable Spring return |
PVL - 5S - 02 -＊ - N - ＊ | |
| 0.225 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL - 5D - 02 - ＊ - N - ＊ | |
| 0.368 | ||
| Function | Reference | Weight Kg |
|---|---|---|
| Bistable Pressure / Pressure |
PVL- 5 / 3 ＊ - 02- ＊ - N - ＊ | C 0.340 |
| E 0.277 | ||
| P 0.278 |
N
Low power electromagnetic driver
| Function | Voltage | Reference | Weight Kg |
|---|---|---|---|
 |
DC24 V | 15S021A0241ZN | 0.051 |
| AC115V | 15S021A1151ZN | 0.051 | |
| AC230V | 15S021A2301ZN | 0.051 |
Head and tail gas group
| Function | Connectors | Reference | Weight Kg |
|---|---|---|---|
| Dual air supply | PVL - C1829 | ||
| G 1 / 4 BSPP | 0.320 | ||
| G 1 / 4 Straight Teeth |

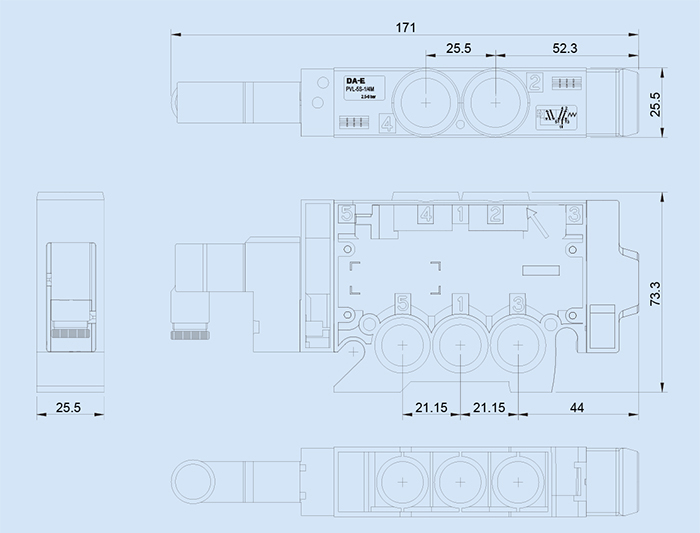

Mounting And Dimensions
PVL - 5S - 02 - * - P
PVL - 5S - 02 - * - S - *
PVL - 5S - 02 - * - N - *
PVL - 5D ( 5 / 3 ) - 02 - * - P
PVL - 5D ( 5 / 3 ) - 02 - * - S - *
PVL - 5D ( 5 / 3 ) - 02 - * - N - *
Modular Design
According to different needs to increase or decrease the number of valves and valve type selection with the use of a place
