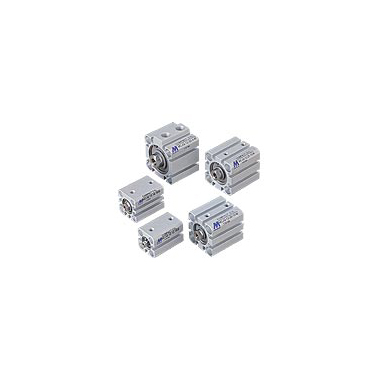

Thin ( Rule ) Pneumatic Cylinders - MCJQ
Feature
- Bores : φ 12 ~ 100 ( mm )
- The company is pursuing cost efficiency and is easy to install and use, and the design of the product.
- Installation of this series products, all use spigot tooth design installation, without any fixed stand, to save the configuration space requirements.
- Aluminum body using carefully selected materials, through hard anodizing; more wear and corrosion resistance, with the precision of assembly technologies; and be strictly full inspection, to be absolutely reliable quality.
- When extruded in the cylinder at a peripheral fitting groove reserve; so sensor when mounting and position adjustment are extremely simple.
- Fixed compact design, sensor fixed on the body is not prominent, even if additional sensor, sensor nor part of its space.
- Sensor can be freely selected fixed direction, φ 12, φ 16 can be fixed on three sides, φ 20 ~ φ 100 can be fixed on all sides.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 12 , 16 , 20 , 25 , 32 , 40 , 50 , 63 , 80 , 100 |
| Pipe diameter size | M 5 × 0.8 , Rc 1 / 8 , Rc 1 / 4 , Rc 3 / 8 |
| Fluid | Air |
| Working pressure range | 0.05 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range | 50 ~ 500 mm / sec |
| Sensor | RCE , RCE1 ( φ 12 ~ 40 mm ) RCB , RCE , RCE1 ( φ 50 ~ 100 mm ) |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD | ||
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC | ||
| Floating joints / MFC |  |
Eliminate interference due to link error between two shafts, produced. Accuracy can be processed with the appropriate member of the zoom. In line with small size, high tensile and compressive strength requirements. | ||
| Fisheye connector / PHS |  |
Yin thread link; genus Kan Rushi copper lining structure; butter with injection nozzle; handle the case of construction body material carbon steel; ball belongs to high carbon chromium bearing steel. | ||
