Joint Effort

Advantage

One-handed operation allows the tube quickly combined with joint
Easy to use in all of PC connectors have hexagonal design hexagonal wrench can be used in confined spaces
Reduction sturdy material ( Pom ) of the pressure ring can be easily pulled out of the tube
All connectors are resistant to treatment or fall plus O-ring
Plated copper body more increase service life

Application

Fluid / Air ( Not available for other gases or liquids )
Working pressure / 0 ~ 150 PSI / 0 ~ 9.9 kgf /cm2 ( 0 ~ 990 KPa )
Negative / - 29.5 in Hg / - 750 mm Hg ( - 750 Torr )
Operating temperature range / 32 ~ 140 ° F / 0 ~ 60 ° C

Place An Order

Proposed order or inquiry

Please indicate food items: Please specify the following items:
1. Model 2. Diameter 3. Teeth specifications

Size code teeth

01 ： 1 / 8 ” / N 01 : 1 / 8 ” NPT / G 01 : 1 / 8 ” BSPP
02 ： 1 / 4 ” / N 02 : 1 / 4 ” NPT / G 02 : 1 / 4 ” BSPP
03 ： 3 / 8 ” / N 03 : 3 / 8 ” NPT / G 03 : 3 / 8 ” BSPP
04 ： 1 / 2 ” / N 04 : 1 / 2 ” NPT / G 04 : 1 / 2 ” BSPP

Examples inquiry
PL-type joint effort
8 mm Diameter 1 / 4 ” PT tooth


Model Diameter Teeth specifications
PL 08 02
PC -type joint effort
1 / 4 ” Diameter 1 / 4 ” PT tooth



Model Diameter Teeth specifications
PC 1 / 4 N 02
SC series G type one touch fitting,
8 mm tube with 1 / 4 " BSPP thread



Model Diameter Teeth specifications
SC 08 G 02

Metric series

PC male straight

Model Ø D T
( Thread )		 L A B H 1 H 2 Ø P ORIFICE
PC 04 - 01 4 PT 1 / 8 20.5 8 15 10 3 10 3
PC 04 - 02 4 PT 1 / 4 19 10 15 14 3 10 3
PC 04 - 03 4 PT 3 / 8 20 11 15 17 3 10 3
PC 04 - 04 4 PT 1 / 2 24.5 14 15 21 3 10 3
PC 04 - M 5 4 M 5 x P 0.8 20.5 3.5 15 10 2 10 2
PC 04 - M 6 4 M 6 x P 1.0 20.5 4 15 10 2 10 3
PC 06 - 01 6 PT 1 / 8 21 8 15 12 4 12 4
PC 06 - 02 6 PT 1 / 4 23 10 15 14 4 12 4
PC 06 - 03 6 PT 3 / 8 21 11 15 17 4 12 4
PC 06 - 04 6 PT 1 / 2 25 14 15 21 4 12 4
PC 06 - M 5 6 M 5 x P 0.8 21 3.5 15 12 2 12 2
PC 06 - M 6 6 M 6 x P 1.0 21 4 15 12 2 12 3
PC 08 - 01 8 PT 1 / 8 26 8 18 14 5 14 5
PC 08 - 02 8 PT 1 / 4 25 10 18 14 5 14 6
PC 08 - 03 8 PT 3 / 8 22 11 18 17 5 14 6
PC 08 - 04 8 PT 1 / 2 26 14 18 21 5 14 6
PC 10 - 01 10 PT 1 / 8 30 8 22 17 5 17 5
PC 10 - 02 10 PT 1 / 4 31.5 10 22 17 6 17 6
PC 10 - 03 10 PT 3 / 8 29 11 22 17 8 17 8
PC 10 - 04 10 PT 1 / 2 27 14 22 21 8 17 8
PC 12 - 01 12 PT 1 / 8 31.5 8 22 21 5 20 5
PC 12 - 02 12 PT 1 / 4 33.5 10 22 21 6 20 6
PC 12 - 03 12 PT 3 / 8 31 11 22 21 8 20 8
PC 12 - 04 12 PT 1 / 2 32.5 14 22 21 8 20 8
PC 14 - 01 14 PT 1 / 8 31.5 8 24 22 5 21.8 5
PC 14 - 02 14 PT 1 / 4 33.5 10 24 22 6 21.8 6
PC 14 - 03 14 PT 3 / 8 34 11 24 22 8 21.8 8
PC 14 - 04 14 PT 1 / 2 32.5 14 24 22 10 21.8 10
PC 16 - 01 16 PT 1 / 8 33.5 8 24 24 5 24 5
PC 16 - 02 16 PT 1 / 4 35.5 10 24 24 6 24 6
PC 16 - 03 16 PT 3 / 8 36.5 11 24 24 8 24 8
PC 16 - 04 16 PT 1 / 2 36.5 14 24 24 10 24 10
PC 16 - 06 16 PT 3 / 4 33 17 27 24 10 24 10

POC Round male straight

Model Ø D T
( Thread )		 L A B H Ø P ORIFICE
POC 04 - 01 4 PT 1 / 8 20.5 8 15 3 10 3
POC 04 - 02 4 PT 1 / 4 19 10 15 3 14 3
POC 04 - 03 4 PT 3 / 8 19.5 11 15 3 17 3
POC 04 - M 5 4 M 5 x P 0.8 20.5 3.5 15 2 10 2
POC 04 - M 6 4 M 6 x P 1.0 20.5 4 15 2 10 2
POC 06 - 01 6 PT 1 / 8 21 8 15 4 12 4
POC 06 - 02 6 PT 1 / 4 23 10 15 4 14 4
POC 06 - 03 6 PT 3 / 8 21 11 15 4 17 4
POC 06 - 04 6 PT 1 / 2 25 14 15 4 21 4
POC 06 - M 5 6 M 5 x P 0.8 21 3.5 15 2 12 2
POC 06 - M 6 6 M 6 x P 1.0 21 4 15 2 12 2
POC 08 - 01 8 PT 1 / 8 26 8 18 5 14 5
POC 08 - 02 8 PT 1 / 4 25 10 18 5 14 5
POC 08 - 03 8 PT 3 / 8 22 11 18 5 17 5
POC 08 - 04 8 PT 1 / 2 26 14 18 5 21 5
POC 10 - 01 10 PT 1 / 8 30 8 22 5 17 5
POC 10 - 02 10 PT 1 / 4 31.5 10 22 6 17 6
POC 10 - 03 10 PT 3 / 8 29 11 22 8 17 8
POC 10 - 04 10 PT 1 / 2 27 14 22 8 21 8
POC 12 - 01 12 PT 1 / 8 31.5 8 22 5 21 5
POC 12 - 02 12 PT 1 / 4 33.5 10 22 6 21 6
POC 12 - 03 12 PT 3 / 8 31 11 22 8 21 8
POC 12 - 04 12 PT 1 / 2 32.5 14 22 8 21 8
POC 16 - 03 16 PT 3 / 8 36.5 11 24 8 24 8
POC 16 - 04 16 PT 1 / 2 36.5 14 24 10 24 10

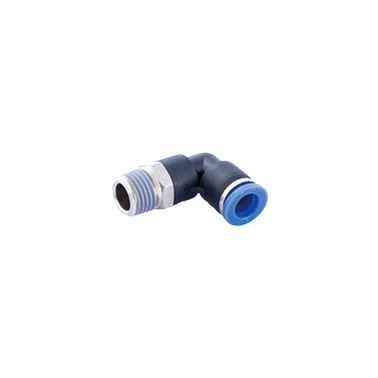

PL male elbow

Model Ø D T
( Thread )		 E L A B H Ø P d ORIFICE
PL 04 - 01 4 PT 1 / 8 23.5 30 8 15 10 11 6.6 2.5
PL 04 - 02 4 PT 1 / 4 23.5 33 10 15 14 11 9 2.5
PL 04 - 03 4 PT 3 / 8 23.5 34.5 11 15 17 11 11.8 2.5
PL 04 - M 5 4 M 5 x P 0.8 23.5 26.5 4 15 10 11 2.5 2.5
PL 04 - M 6 4 M 6 x P 1.0 23.5 26.5 4 15 10 11 3 2.5
PL 06 - 01 6 PT 1 / 8 24 31.5 8 15 12 13 6.6 2.5
PL 06 - 02 6 PT 1 / 4 24.5 34 10 15 14 13 9 4
PL 06 - 03 6 PT 3 / 8 24 35 11 15 17 13 11.8 4
PL 06 - 04 6 PT 1 / 2 24.5 38.5 14 15 21 13 14.9 4.5
PL 06 - M 5 6 M 5 x P 0.8 24 28 4 15 12 13 2.5 2.5
PL 06 - M 6 6 M 6 x P 1.0 24 28 4 15 12 13 3 2.5
PL 08 - 01 8 PT 1 / 8 29 35 8 18 14 14.4 6.6 4
PL 08 - 02 8 PT 1 / 4 29 37 10 18 14 14.4 9 4
PL 08 - 03 8 PT 3 / 8 29 38.5 11 18 17 14.4 11.8 4
PL 08 - 04 8 PT 1 / 2 29.5 42 14 18 21 14.4 14.9 4
PL 10 - 01 10 PT 1 / 8 36.5 42 8 22 17 18.4 6.6 6.5
PL 10 - 02 10 PT 1 / 4 36.5 44 10 22 17 18.4 9 6.5
PL 10 - 03 10 PT 3 / 8 36.5 45 11 22 17 18.4 11.8 6.5
PL 10 - 04 10 PT 1 / 2 36.5 48 14 22 21 18.4 14.9 7.5
PL 12 - 01 12 PT 1 / 8 39 44.5 8 22 19 21 6.6 6.5
PL 12 - 02 12 PT 1 / 4 39 46.5 10 22 19 21 9 6.5
PL 12 - 03 12 PT 3 / 8 39 47.5 11 22 19 21 11.8 7
PL 12 - 04 12 PT 1 / 2 39 51 14 22 21 21 14.9 7.5
PL 14 - 02 14 PT 1 / 4 39 47 10 24 19 23 9 6.5
PL 14 - 03 14 PT 3 / 8 39 49 11 24 19 23 11.8 7
PL 14 - 04 14 PT 1 / 2 39 52 14 24 21 23 14.9 7.5
PL 16 - 03 16 PT 3 / 8 41 52 11 24 19 26 11.8 11
PL 16 - 04 16 PT 1 / 2 41 55 14 24 21 26 14.9 14

PT male branch tee

Model Ø D T
( Thread )		 E L A B H Ø P d ORIFICE
PT 04 - 01 4 PT 1 / 8 37 30.5 8 15 10 11 6.6 2.5
PT 04 - 02 4 PT 1 / 4 37 32.5 10 15 14 11 9 2.5
PT 04 - 03 4 PT 3 / 8 37 33.5 11 15 17 11 11.8 2.5
PT 04 - M 5 4 M 5 x P 0.8 37 26.5 4 15 10 11 2.5 2.5
PT 04 - M 6 4 M 6 x P 1.0 37 26.5 4 15 10 11 3 2.5
PT 06 - 01 6 PT 1 / 8 38 32 8 15 12 13 6.6 2.5
PT 06 - 02 6 PT 1 / 4 38 34 10 15 14 13 9 4
PT 06 - 03 6 PT 3 / 8 38 35 11 15 17 13 11.8 4
PT 06 - 04 6 PT 1 / 2 38 38 14 15 21 13 14.9 2.5
PT 06 - M 5 6 M 5 x P 0.8 38 28 4 15 12 13 2.5 2.5
PT 06 - M 6 6 M 6 x P 1.0 38 28 4 15 12 13 3 2.5
PT 08 - 01 8 PT 1 / 8 44.5 35 8 18 14 14.4 6.6 4
PT 08 - 02 8 PT 1 / 4 44.5 37 10 18 14 14.4 9 4
PT 08 - 03 8 PT 3 / 8 44.5 38 11 18 17 14.4 11.8 4
PT 08 - 04 8 PT 1 / 2 44.5 41 14 18 21 14.4 14.9 4
PT 10 - 01 10 PT 1 / 8 56.5 42.5 8 22 17 18.4 6.6 6.5
PT 10 - 02 10 PT 1 / 4 56.5 44.5 10 22 17 18.4 9 6.5
PT 10 - 03 10 PT 3 / 8 56.5 45.5 11 22 17 18.4 11.8 6.5
PT 10 - 04 10 PT 1 / 2 56.5 48.5 14 22 21 18.4 14.9 6.5
PT 12 - 01 12 PT 1 / 8 58 48 8 22 19 21 6.6 6.5
PT 12 - 02 12 PT 1 / 4 58 47 10 22 19 21 9 6.5
PT 12 - 03 12 PT 3 / 8 58 48 11 22 19 21 11.8 6.5
PT 12 - 04 12 PT 1 / 2 58 51 14 22 21 21 14.9 6.5
PT 14 - 02 14 PT 1 / 4 60.5 48 10 24 19 23 9 6.5
PT 14 - 03 14 PT 3 / 8 60.5 48.5 11 24 19 23 11.8 6.5
PT 14 - 04 14 PT 1 / 2 60.5 52 14 24 21 23 14.9 6.5
PT 16 - 03 16 PT 3 / 8 61.5 55.5 11 24 19 26 11.8 11
PT 16 - 04 16 PT 1 / 2 61.5 58.5 14 24 21 26 14.9 14

PST male run tee

Model Ø D T
( Thread )		 L E A B H Ø P d ORIFICE
PST 04 - 01 4 PT 1 / 8 43 24 8 15 10 11 6.6 2.5
PST 04 - 02 4 PT 1 / 4 45 24 10 15 14 11 9 2.5
PST 04 - 03 4 PT 3 / 8 46 24 11 15 17 11 11.8 2.5
PST 04 - M 5 4 M 5 x P 0.8 39 24 4 15 10 11 2.5 2.5
PST 04 - M 6 4 M 6 x P 1.0 39 24 4 15 10 11 3 2.5
PST 06 - 01 6 PT 1 / 8 44 25.5 8 15 12 13 6.6 2.5
PST 06 - 02 6 PT 1 / 4 46.5 25.5 10 15 14 13 9 4
PST 06 - 03 6 PT 3 / 8 47.5 25.5 11 15 17 13 11.8 4
PST 06 - 04 6 PT 1 / 2 50.5 25.5 14 15 21 13 14.9 4.5
PST 06 - M 5 6 M 5 x P 0.8 41 25.5 4 15 12 13 2.5 2.5
PST 06 - M 6 6 M 6 x P 1.0 41 25.5 4 15 12 13 3 2.5
PST 08 - 01 8 PT 1 / 8 50.5 29.5 8 18 14 14.4 6.6 4
PST 08 - 02 8 PT 1 / 4 52.5 29.5 10 18 14 14.4 9 4
PST 08 - 03 8 PT 3 / 8 53.5 29.5 11 18 17 14.4 11.8 4
PST 08 - 04 8 PT 1 / 2 56.5 29.5 14 18 21 14.4 14.9 4
PST 10 - 01 10 PT 1 / 8 62 38 8 22 17 18.4 6.6 6.5
PST 10 - 02 10 PT 1 / 4 64 38 10 22 17 18.4 9 6.5
PST 10 - 03 10 PT 3 / 8 65 38 11 22 17 18.4 11.8 6.5
PST 10 - 04 10 PT 1 / 2 68 38 14 22 21 18.4 14.9 7.5
PST 12 - 01 12 PT 1 / 8 63.5 40 8 22 19 21 6.6 6.5
PST 12 - 02 12 PT 1 / 4 65.5 40 10 22 19 21 9 6.5
PST 12 - 03 12 PT 3 / 8 66.5 40 11 22 19 21 11.8 6.5
PST 12 - 04 12 PT 1 / 2 69.5 40 14 22 21 21 14.9 6.5
PST 14 - 02 14 PT 1 / 4 66 42 10 24 19 23 9 6.5
PST 14 - 03 14 PT 3 / 8 67 42 11 24 19 23 11.8 6.5
PST 14 - 04 14 PT 1 / 2 71.5 42 14 24 21 23 14.9 6.5

PWT male Y

Model Ø D T
( Thread )		 L E A B H Ø P d ORIFICE
PWT 04 - 01 4 PT 1 / 8 43 22 8 15 10 11 6.6 2.5
PWT 04 - 02 4 PT 1 / 4 45 22 10 15 14 11 9 2.5
PWT 04 - 03 4 PT 3 / 8 46 22 11 15 17 11 11.8 2.5
PWT 04 - M 5 4 M 5 x P 0.8 39 22 4 15 10 11 2.5 2.5
PWT 04 - M 6 4 M 6 x P 1.0 39 22 4 15 10 11 3 2.5
PWT 06 - 01 6 PT 1 / 8 45 26 8 15 12 13 6.6 2.5
PWT 06 - 02 6 PT 1 / 4 47 26 10 15 14 13 9 4
PWT 06 - 03 6 PT 3 / 8 48 26 11 15 17 13 11.8 4
PWT 06 - 04 6 PT 1 / 2 51 26 14 15 21 13 14.9 4.5
PWT 06 - M 5 6 M 5 x P 0.8 41 26 4 15 12 13 2.5 2.5
PWT 06 - M 6 6 M 6 x P 1.0 41 26 4 15 12 13 3 2.5
PWT 08 - 01 8 PT 1 / 8 47 30 8 18 14 14.4 6.6 4
PWT 08 - 02 8 PT 1 / 4 49 30 10 18 14 14.4 9 4
PWT 08 - 03 8 PT 3 / 8 50 30 11 18 17 14.4 11.8 4
PWT 08 - 04 8 PT 1 / 2 53 30 14 18 21 14.4 14.9 4
PWT 10 - 01 10 PT 1 / 8 57 37 8 22 17 18.4 6.6 6.5
PWT 10 - 02 10 PT 1 / 4 59 37 10 22 17 18.4 9 6.5
PWT 10 - 03 10 PT 3 / 8 60 37 11 22 17 18.4 11.8 6.5
PWT 10 - 04 10 PT 1 / 2 63 37 14 22 21 18.4 14.9 7.5
PWT 12 - 01 12 PT 1 / 8 60 42.5 8 22 19 21 6.6 6.5
PWT 12 - 02 12 PT 1 / 4 62 42.5 10 22 19 21 9 6.5
PWT 12 - 03 12 PT 3 / 8 63 42.5 11 22 19 21 11.8 6.5
PWT 12 - 04 12 PT 1 / 2 66 42.5 14 22 21 21 14.9 7.5
PWT 16 - 03 16 PT 3 / 8 65.5 51.5 11 24 19 25.8 11.8 6.5
PWT 16 - 04 16 PT 1 / 2 69 51.5 14 24 21 25.8 14.9 7.5

PLL extended male elbow

Model Ø D T
( Thread )		 E L A B H Ø P d ORIFICE
PLL 04 - 01 4 PT 1 / 8 23.5 40.5 8 15 10 11 6.6 2.5
PLL 04 - 02 4 PT 1 / 4 23.5 42.5 10 15 14 11 9 2.5
PLL 04 - 03 4 PT 3 / 8 23.5 43.5 11 15 17 11 11.8 2.5
PLL 04 - M 5 4 M 5 x P 0.8 23.5 36.5 4 15 10 11 2.5 2.5
PLL 04 - M 6 4 M 6 x P 1.0 23.5 36.5 4 15 10 11 3 2.5
PLL 06 - 01 6 PT 1 / 8 25 44 8 15 12 13 6.6 2.5
PLL 06 - 02 6 PT 1 / 4 25 46 10 15 14 13 9 4
PLL 06 - 03 6 PT 3 / 8 25 47 11 15 17 13 11.8 4
PLL 06 - 04 6 PT 1 / 2 25 50 14 15 21 13 14.9 4.5
PLL 06 - M 5 6 M 5 x P 0.8 25 40 4 15 12 13 2.5 2.5
PLL 06 - M 6 6 M 6 x P 1.0 25 40 4 15 12 13 3 2.5
PLL 08 - 01 8 PT 1 / 8 30 49 8 18 14 14.4 6.6 4
PLL 08 - 02 8 PT 1 / 4 30 51 10 18 14 14.4 9 4
PLL 08 - 03 8 PT 3 / 8 30 52 11 18 17 14.4 11.8 4
PLL 08 - 04 8 PT 1 / 2 30 55 14 18 21 14.4 14.9 4
PLL 10 - 01 10 PT 1 / 8 36 59 8 22 17 18.4 6.6 6.5
PLL 10 - 02 10 PT 1 / 4 36 61 10 22 17 18.4 9 6.5
PLL 10 - 03 10 PT 3 / 8 36 62 11 22 17 18.4 11.8 6.5
PLL 10 - 04 10 PT 1 / 2 36 65 14 22 21 18.4 14.9 7.5
PLL 12 - 02 12 PT 1 / 4 38.5 67 10 24 19 21 9 6.5
PLL 12 - 03 12 PT 3 / 8 38.5 67.5 11 24 19 21 11.8 6.5
PLL 12 - 04 12 PT 1 / 2 38.5 71 14 24 21 21 14.9 7.5

PIG

Model Ø D 1 Ø D 2 L A B ORIFICE
PIG 0604 6 4 36 17 19 2.5
PIG 0804 8 4 37.5 18.5 19 2.0
PIG 0806 8 6 39 18.5 20.5 3.5
PIG 1006 10 6 41.5 21 20.5 3.5
PIG 1008 10 8 43.0 21.0 22.0 5.0
PIG 1208 12 8 44.5 22.5 22.0 5.0
PIG 1210 12 10 48.0 22.5 25.5 6.0
PIG 1612 16 12 54 26.5 27.5 8.5

PLF extended female elbow

Model Ø D T
( Thread )		 L E A B H
( Hax )		 Ø P ORIFICE
PLF 04 - 01 4 PT 1 / 8 28.5 23.5 8 15 14 11 2.5
PLF 04 - 01 4 PT 1 / 4 31 23.5 10 15 17 11 2.5
PLF 04 - M 5 4 M 5 x P 0.8 24.5 23.5 7 15 10 11 2.5
PLF 04 - M 6 4 M 6 x P 1.0 24.5 23.5 7 15 10 11 2.5
PLF 06 - 01 6 PT 1 / 8 29.5 25 8 15 14 13 4.5
PLF 06 - 02 6 PT 1 / 4 32 25 10 15 17 13 4.5
PLF 06 - 03 6 PT 3 / 8 33.5 25 11 15 21 13 4.5
PLF 06 - 04 6 PT 1 / 2 36.5 25 14 15 24 13 4.5
PLF 06 - M 5 6 M 5 x P 0.8 25.5 25 7 15 12 13 4
PLF 06 - M 6 6 M 6 x P 1.0 25.5 25 7 15 12 13 4.5
PLF 08 - 01 8 PT 1 / 8 33 29.5 8 18 14 14.4 7
PLF 08 - 02 8 PT 1 / 4 35.5 29.5 10 18 17 14.4 7
PLF 08 - 03 8 PT 3 / 8 37 29.5 11 18 21 14.4 7
PLF 08 - 04 8 PT 1 / 2 40 29.5 14 18 24 14.4 7
PLF 10 - 01 10 PT 1 / 8 36 36 8 22 17 18.4 9.5
PLF 10 - 02 10 PT 1 / 4 41 36 10 22 17 18.4 9.5
PLF 10 - 03 10 PT 3 / 8 43 36 11 22 21 18.4 9.5
PLF 10 - 04 10 PT 1 / 2 46 36 14 22 24 18.4 9.5
PLF 12 - 01 12 PT 1 / 8 39 38.5 8 22 19 21 9.5
PLF 12 - 02 12 PT 1 / 4 44.5 38.5 10 22 19 21 9.5
PLF 12 - 03 12 PT 3 / 8 46 38.5 11 22 21 21 9.5
PLF 12 - 04 12 PT 1 / 2 49 38.5 14 22 24 21 9.5

PUC union straight

Model Ø D E C B Ø P ORIFICE
PUC 04 4 33 3.2 15 11 3
PUC 06 6 34.5 3.2 15 13 5
PUC 08 8 38.5 3.2 18 14.5 6
PUC 10 10 48.5 4.2 22 18.5 8
PUC 12 12 49 4.2 22 21 10
PUC 14 14 51.5 4.5 24 23 12
PUC 16 16 63.5 5.2 24 26 13

PUT union tee

Model Ø D E L M 1 M 2 B C Ø P ORIFICE
PUT 04 4 36.5 24 7 14 15 3.2 11 3
PUT 06 6 37.5 25.5 8 16 15 3.2 13 5
PUT 08 8 44.5 29.5 9 18 18 4.2 14.5 6
PUT 10 10 57 37 12 24 22 4.2 18.5 8
PUT 12 12 58 39 13.5 27 22 4.2 21 10
PUT 14 14 60.7 42.5 13.5 27 24 4.2 23 12
PUT 16 16 64 45 14 28 24 4.2 26 12.5

PGT reducer tee

Model Ø D 1 Ø D 2 Ø P 1 Ø P 2 L E C B 1 B 2 M 1 M 2 ORIFICE
PGT 0406 4 6 11 13 24.5 37.5 3.2 15 15 6.9 13.8 3
PGT 0408 4 8 13 14.5 28 41 3.2 15 18 8.3 16.6 3
PGT 0604 6 4 13 11 25.5 38 3.2 15 15 8 13.8 3
PGT 0608 6 8 13 14.5 28 41 3.2 15 18 8.3 16.6 3
PGT 0610 6 10 13 18.5 34 44.5 4.2 15 22 8.4 22 5
PGT 0804 8 4 14.5 13 29.5 43.5 3.2 18 15 9 16.6 5
PGT 0806 8 6 14.5 13 29.5 43.5 3.2 18 15 9 16.6 5
PGT 0810 8 10 14.4 18.5 34.5 48 4.2 18 22 9.2 22 6
PGT 0812 8 12 14.4 21 35.2 48.5 4.2 18 22 9.2 24.6 7
PGT 1006 10 6 18.5 13 31.5 56 4.2 22 15 11 16.8 5
PGT 1008 10 8 18.5 14.4 32 56 4.2 22 18 11 18.4 6
PGT 1012 10 12 18.4 21 38.2 58 4.2 22 22 11 24.6 8
PGT 1208 12 8 21 14.4 35 56 4.2 22 18 12.3 18.4 7
PGT 1210 12 10 21 18.4 39 57.5 4.2 22 22 12.3 18.4 8
PGT1 412 14 12 23 23 41 60.5 4.2 24 22 14.5 26.5 10
PGT 16 - 12 16 12 26 21 44.5 65 4.2 24 22 14.6 24.6 12
PGT 16 - 14 16 14 26 26 46 65 4.2 24 24 14 28 12

PG reducer

Model Ø D 1 Ø D 2 Ø P 1 Ø P 2 E B 1 B 2 ORIFICE
PG 0604 6 4 13 11 34 15 15 3
PG 0804 8 4 14.5 13 36.5 18 15 3
PG 0806 8 6 14.5 13 36.5 18 15 4
PG 1006 10 6 18.5 14.5 43 22 15 5
PG 1008 10 8 18.5 14.5 43 22 18 5
PG 1208 12 8 21 20.5 47 22 18 7
PG 1210 12 10 21 20.5 49 22 22 8
PG 1412 14 12 23 23 51 24 22 10
PG 1612 16 12 26 26 64 24 22 8
PG 1614 16 14 26 26 65 24 24 10

PKG reducer triple branch union

Model Ø D 1 Ø D 2 L E B 1 B 2 Ø P 1 Ø P 2 M 1 M 2 C
PKG 0404 4 4 59 27 15 15 14.3 13 9 41.5 3.2
PKG 0606 6 6 59.5 27 15 15 14.3 13 9 41.5 3.2
PKG 0808 8 8 79.5 33 18 18 18 14.5 12 47.8 4.2
PKG 1010 10 10 90.9 37.5 22 22 18.5 18.5 12 56.5 3.5
PKG 1212 12 12 99.4 39.5 22 22 21 21 15.5 67.5 4.5
PKG 0604 6 4 59.5 27 15 15 14.3 13 9 41.5 3.2
PKG 0804 8 4 61 27 18 15 14.3 13 9 41.5 3.2
PKG 0806 8 6 61 27 18 15 14.3 13 9 41.5 3.2
PKG 1006 10 6 82.5 32.5 22 15 18.5 14.5 12 47.8 4.2
PKG 1008 10 8 82.5 32.5 22 18 18.5 14.5 12 47.8 4.2
PKG 1208 12 8 91.8 37 22 18 21 18.4 15.5 59.5 4.5
PKG 1210 12 10 91.8 38 22 22 21 18.4 15.5 59.5 4.5

PUL union elbow

Model Ø D L B C Ø P ORIFICE
PUL 04 4 24 15 3.2 11 3
PUL 06 6 25 15 3.2 13 5
PUL 08 8 29 18 3.2 14.4 6
PUL 10 10 37 22 4.2 18.4 8
PUL 12 12 40 22 4.2 21 10
PUL 14 14 41.5 24 4.2 23.5 12
PUL 16 16 45.5 24 5.2 26 14

PY union y

Model Ø D L E B C Ø P ORIFICE
PY 04 4 35.5 22 15 3.2 11 3
PY 06 6 37 26 15 3.2 13 5
PY 08 8 39.5 30 18 3.2 14.4 6
PY 10 10 50.5 37 22 4.2 18.4 8
PY 12 12 52.5 42 22 4.2 21 10
PY 16 16 55.5 51.5 24 4.2 26 12.5

PW reducer y

Model Ø D 1 Ø D 2 L E B 1 B 2 C Ø P 1 Ø P 2 ORIFICE
PW 0604 6 4 36 22 15 15 3.2 13 11 3.3
PW 0804 8 4 37 26 18 15 3.2 14.5 13 3.3
PW 0806 8 6 37 26 18 15 3.2 14.5 13 4
PW1006 10 6 43.5 29 22 15 3.2 18.5 14.5 5
PW 1008 10 8 44 29 22 18 3.2 18.5 14.5 5
PW 1208 12 8 51 36.5 22 18 4.2 21 18.5 6.4
PW 1210 12 10 52 36.5 22 22 4.2 21 18.5 6.4
PW 1612 16 12 54.5 51.5 24 22 4.2 26 26 8
PW 1614 16 14 55 51.5 24 24 4.2 26 26 8

PZA union cross

Model Ø D Ø P M 1 E B ORIFICE
PZA 04 4 11 7.2 36.5 15 3
PZA 06 6 13 7.8 38 15 5
PZA 08 8 15 9.1 45 18 6
PZA 10 10 18.5 11.8 57 22 8
PZA 12 12 21 14 59 22 10

PP plug

Model Ø D Ø P L A
PP 04 4 5 28 15
PP 06 6 7 33 17
PP 08 8 9 36 17
PP 10 10 11 42.5 22
PP 12 12 13 43 22
PP 16 16 17 49 24.5

PCF female straight

Model Ø D T L A B H Ø P ORIFICE
PCF 04 - M 5 4 M 5 x 0.8 21 5 15 10 10 3
PCF 04 - 01 4 PT 1 / 8 21.5 7.5 15 14 10 3
PCF 04 - 02 4 PT 1 / 4 26.5 10 15 17 10 3
PCF 06 - M 5 6 M 5 x 0.8 20.5 5 15 12 12 4.5
PCF 06 - 01 6 PT 1 / 8 25 7.5 15 14 12 4.5
PCF 06 - 02 6 PT 1 / 4 27 10 15 17 12 4.5
PCF 06 - 03 6 PT 3 / 8 28 11 15 20 12 4.5
PCF 06 - 04 6 PT 1 / 2 30 13 15 24 12 4.5
PCF 08 - 01 8 PT 1 / 8 26 7.5 18 14 14 6.5
PCF 08 - 02 8 PT 1 / 4 28.5 10 18 17 14 6.5
PCF 08 - 03 8 PT 3 / 8 30 11 18 20 14 6.5
PCF 08 - 04 8 PT 1 / 2 32 13 18 24 14 6.5
PCF 10 - 01 10 PT 1 / 8 30 7.5 22 17 17 8
PCF 10 - 02 10 PT 1 / 4 32 10 22 17 17 8
PCF 10 - 03 10 PT 3 / 8 33 11 22 20 17 8
PCF 10 - 04 10 PT 1 / 2 35 13 22 24 17 8
PCF 12 - 02 12 PT 1 / 4 35 10 22 21 20 10
PCF 12 - 03 12 PT 3 / 8 36 11 22 21 20 10
PCF 12 - 04 12 PT 1 / 2 37.5 13 22 24 20 10
PCF 16 - 03 16 PT 3 / 8 36.5 11 24 24 24 14
PCF 16 - 04 16 PT 1 / 2 36.5 13 24 24 24 14

PMF bulkhead female straight

Model Ø D T 1
( Thread )		 T 2 Ø P L H 1 H 2 B ORIFICE
PMF 04 - 01 4 PT 1 / 8 M 12 x P 1.0 10 24 14 14 15 3
PMF 04 - 02 4 PT 1 / 4 M 12 x P 1.0 10 26.5 17 14 15 3
PMF 06 - 01 6 PT 1 / 8 M 14 x P 1.0 12 25 17 17 15 4.5
PMF 06 - 02 6 PT 1 / 4 M 14 x P 1.0 12 27 17 17 15 4.5
PMF 06 - 03 6 PT 3 / 8 M 14 x P 1.0 12 28 20 17 15 4.5
PMF 08 - 01 8 PT 1 / 8 M 16 x P 1.0 14 27 19 19 18 6.5
PMF 08 - 02 8 PT 1 / 4 M 16 x P 1.0 14 29 19 19 18 6.5
PMF 08 - 03 8 PT 3 / 8 M 16 x P 1.0 14 29.5 20 19 18 6.5
PMF 08 - 04 8 PT 1 / 2 M 16 x P 1.0 14 31.5 24 19 18 6.5
PMF 10 - 01 10 PT 1 / 8 M 20 x P 1.0 17 30.5 24 24 22 8
PMF 10 - 02 10 PT 1 / 4 M 20 x P 1.0 17 33 24 24 22 8
PMF 10 - 03 10 PT 3 / 8 M 20 x P 1.0 17 34 24 24 22 8
PMF 10 - 04 10 PT 1 / 2 M 20 x P 1.0 17 35 24 24 22 8
PMF 12 - 02 12 PT 1 / 4 M 22 x P 1.0 20 33 27 27 22 10
PMF 12 - 03 12 PT 3 / 8 M 22 x P 1.0 20 34 27 27 22 10
PMF 12 - 04 12 PT 1 / 2 M 22 x P 1.0 20 36 27 27 22 10

PPF cap

Model Ø D Ø P L B
PPF 04 4 11 18 16.8
PPF 06 6 13 19 17.8
PPF 08 8 14.5 21 18.7
PPF 10 10 18.5 23 19.6
PPF 12 12 21 25 21.9
PPF 16 16 26 27.5 24

PMM bulkhead union

Model Ø D T L H B ORIFICE
PMM 04 4 M 12 x P 1.0 30.5 14 15 3
PMM 06 6 M 14 x P 1.0 32 17 15 5
PMM 08 8 M 16 x P 1.0 35 19 18 6
PMM 10 10 M 20 x P 1.0 42 24 22 8
PMM 12 12 M 22 x P 1.0 45 27 22 10

PLJ plug - in elbow

Model Ø D 1 Ø D 2 Ø P E L B15 ORIFICE
PLJ 04 4 4 11 23 38 15 2
PLJ 06 6 6 13 24 41 15 4
PLJ 08 8 8 14.5 29.5 46.5 18 6
PLJ 10 10 10 18.5 36 55 22 7
PLJ 12 12 12 21 39 58 22 9
PLJ 16 16 16 25.5 45 72 24 12
PLJ 0604 6 4 11 23 39.5 15 2
PLJ 0806 8 6 13 24 43.5 15 4
PLJ 1008 10 8 14.5 29.5 49 18 6
PLJ 1210 12 10 18.5 36 59.5 22 7

PLM bulkhead union elbow

Model Ø D 1 Ø D 2 Ø P T L E A B 1 B 2 J H 1
( Hex )		 H 2
( Hex )		 ORIFICE
PLM 04 4 4 11 M 12 x P 1.0 27.7 18.8 6.5 15 15 3.4 14 14 3
PLM 06 6 6 13 M 14 x P 1.0 31.7 20 9 15 15 3.9 17 17 4.5
PLM 08 8 8 14.4 M 16 x P 1.0 35.4 22.5 9 18 18 4.5 19 19 6
PLM 10 10 10 18.4 M 20 x P 1.0 40.5 27.5 8.5 22 22 5 24 24 8
PLM 12 12 12 21 M 22 x P 1.0 46.5 29 12.5 22 22 5 27 27 10

PH male banjo

Model Ø D T
( Thread )		 E L A B H Ø P d ORIFICE
PH 04 - 01 4 PT 1 / 8 29 23.6 7 15 12 11 6.2 2.5
PH 04 - 02 4 PT 1 / 4 33 26.5 9.5 15 14 13 8.2 2.5
PH 04 - M 5 4 M 5 x 0.8 25 17.5 4 15 8 11 2.4 2.5
PH 04 - M 6 4 M 6 x 0.8 25 17.5 4 15 8 11 3 2.5
PH 06 - 01 6 PT 1 / 8 30 24 7 15 12 13 6.2 4
PH 06 - 02 6 PT 1 / 4 34 26.5 9.5 15 14 13 8.2 4
PH 06 - 03 6 PT 3 / 8 38 32 10.5 15 19 13 11.5 4
PH 06 - M 5 6 M 5 x 0.8 26.5 17.5 4 15 8 13 2.4 4
PH 06 - M 6 6 M 6 x 0.8 26.5 17.5 4 15 8 13 3 4
PH 08 - 01 8 PT 1 / 8 32 24 7 18 12 14.5 6.2 5
PH 08 - 02 8 PT 1 / 4 37 26.5 9.5 18 14 14.5 8.2 5
PH 08 - 03 8 PT 3 / 8 40 32 10.5 18 19 14.5 11.5 5
PH 08 - 04 8 PT 1 / 2 46 39.1 14 18 24 14.5 15 5
PH 10 - 01 10 PT 1 / 8 37.5 24 7 22 12 18.5 6.2 5
PH 10 - 02 10 PT 1 / 4 41 26.5 9.5 22 14 18.5 8.2 8
PH 10 - 03 10 PT 3 / 8 42 32 10.5 22 19 18.5 11.5 8
PH 10 - 04 10 PT 1 / 2 50 39.1 14 22 24 18.5 15 8
PH 12 - 02 12 PT 1 / 4 42.5 26.5 9.5 22 14 21 8.2 5
PH 12 - 03 12 PT 3 / 8 46 32 10.5 22 19 21 11.5 8
PH 12 - 04 12 PT 1 / 2 50 39.1 14 22 24 21 15 10

PHF female banjo

Model Ø D Ø P T 1 T 2 L E A 1 A 2 B H
( Hex )		 ORIFICE
PHF 04 - M 5 4 11 M 5 x 0.8 M 5 x 0.8 20 25 4 5 15 8 1.5
PHF 04 - M 6 4 11 M 6 x 0.8 M 6 x 0.8 20.8 25 4 5 15 8 2
PHF 04 - 01 4 11 PT 1 / 8 PT 1 / 8 28 29.5 7.5 6.5 15 14 3
PHF 04 - 02 4 11 PT 1 / 4 PT 1 / 4 33 33 9.5 8.5 15 17 3.2
PHF 06 - M 5 6 13 M 5 x 0.8 M 5 x 0.8 20 26.5 4 5 15 8 1.5
PHF 06 - M 6 6 13 M 6 x 0.8 M 6 x 0.8 20.8 26.5 4 5 15 8 2
PHF 06 - 01 6 13 PT 1 / 8 PT 1 / 8 28 30 7.5 6.5 15 14 3
PHF 06 - 02 6 13 PT 1 / 4 PT 1 / 4 33 34 9.5 8.5 15 17 4
PHF 06 - 03 6 13 PT 3 / 8 PT 3 / 8 38.9 38 10.5 9.5 15 21 5
PHF 06 - 04 6 13 PT 1 / 2 PT 1 / 2 46.6 46 14 11.5 15 24 5
PHF 08 - 01 8 14.5 PT 1 / 8 PT 1 / 8 28 32.5 7.5 6.5 18 14 3
PHF 08 - 02 8 14.5 PT 1 / 4 PT 1 / 4 33 37.5 9.5 8.5 18 17 4
PHF 08 - 03 8 14.5 PT 3 / 8 PT 3 / 8 38.9 40 10.5 9.5 18 21 5
PHF 08 - 04 8 14.5 PT 1 / 2 PT 1 / 2 46.6 46 14 11.5 18 24 6
PHF 10 - 01 10 18.5 PT 1 / 8 PT 1 / 8 28 37 7.5 6.5 22 14 3
PHF 10 - 02 10 18.5 PT 1 / 4 PT 1 / 4 33 41 9.5 8.5 22 17 4
PHF 10 - 03 10 18.5 PT 3 / 8 PT 3 / 8 38.9 42 10.5 9.5 22 21 5
PHF 10 - 04 10 18.5 PT 1 / 2 PT 1 / 2 46.6 49.5 14 11.5 22 24 6
PHF 12 - 02 12 21 PT 1 / 4 PT 1 / 4 33 42.5 9.5 8.5 22 17 4
PHF 12 - 03 12 21 PT 3 / 8 PT 3 / 8 38.9 46 10.5 9.5 22 21 5
PHF 12 - 04 12 21 PT 1 / 2 PT 1 / 2 46.6 50 14 11.5 22 24 6

PGJ plug - in reducer

Model Ø D 1 A L Ø P Ø D 2 B ORIFICE
PGJ 06 - 04 6 22 38.5 11 4 15 2.8
PGJ 08 - 04 8 25 40 11 4 15 2.8
PGJ 08 - 06 8 25 41 13 6 15 5
PGJ 10 - 06 10 26.5 41 13 6 15 5
PGJ 10 - 08 10 26.5 45.5 14.5 8 18 7
PGJ 12 - 06 12 26.5 41 13 6 15 5
PGJ 12 - 08 12 26.5 43 14.5 8 18 7
PGJ 12 - 10 12 26.5 51 18.5 10 22 9

PKD male reducer triple branch

Model Ø D 1 Ø D 2 T L E B 1 B 2 Ø P 1 Ø P 2 M 1 M 2 C A H
PKD 04 - 01 4 4 PT 1 / 8 68 27 15 15 14.3 13 9 41.5 3.2 8 10
PKD 0604 - 01 6 4 PT 1 / 8 68 27 15 15 14.3 13 9 41.5 3.2 8 12
PKD 0804 - 01 8 4 PT 1 / 8 68.5 27 18 15 14.3 13 9 41.5 3.2 8 14
PKD 0804 - 02 8 4 PT 1 / 4 70.5 27 18 15 14.3 13 9 41.5 3.2 10 14
PKD 06 - 01 6 6 PT 1 / 8 68 27 15 15 14.3 13 9 41.5 3.2 8 12
PKD 06 - 02 6 6 PT 1 / 4 70.5 27 15 15 14.3 13 9 41.5 3.2 10 14
PKD 0806 - 01 8 6 PT 1 / 8 68 27 18 15 14.3 13 9 41.5 3.2 8 14
PKD 0806 - 02 8 6 PT 1 / 4 70.5 27 18 15 14.3 13 9 41.5 3.2 10 14
PKD 08 - 02 8 8 PT 1 / 4 88.5 33 18 18 18 14.5 12 47.8 4.2 10 14
PKD 08 - 03 8 8 PT 3 / 8 89.3 33 18 18 18 14.5 12 47.8 4.2 11 17
PKD 1006 - 02 10 8 PT 1 / 4 89.5 33 22 18 18 14.5 12 47.8 4.2 10 17
PKD 1006 - 03 10 8 PT 3 / 8 90.3 33 22 18 18 14.5 12 47.8 4.2 11 17
PKD 1008 - 02 10 8 PT 1 / 4 89.5 33 22 18 18 14.5 12 47.8 4.2 10 17
PKD 1008 - 03 10 8 PT 3 / 8 90.3 33 22 18 18 14.5 12 47.8 4.2 11 17
PKD 10 - 02 10 10 PT 1 / 4 98.7 37.5 22 22 18.4 18.4 12 56.5 3.5 10 17
PKD 10 - 03 10 10 PT 3 / 8 100 37.5 22 22 18.4 18.4 12 56.5 3.5 11 17
PKD 10 - 04 10 10 PT 1 / 2 104 37.5 22 22 18.4 18.4 12 56.5 3.5 14 21
PKD 1208 - 03 12 8 PT 3 / 8 100 37 22 18 21 18.4 15.5 59.5 4.5 11 19
PKD 1208 - 04 12 8 PT 1 / 2 104 37 22 18 21 18.4 15.5 59.5 4.5 14 21
PKD 1210 - 03 12 10 PT 3 / 8 100 38 22 18 21 18.4 15.5 59.5 4.5 11 19
PKD 1210 - 04 12 10 PT 1 / 2 104 38 22 18 21 18.4 15.5 59.5 4.5 14 21
PKD 12 - 03 12 12 PT 3 / 8 105 39.7 22 22 21 21 15.5 67.5 4.5 11 19
PKD 12 - 04 12 12 PT 1 / 2 108 39.7 22 22 21 21 15.5 67.5 4.5 14 21

PWJ plug - in y

Model Ø D 1 Ø D 2 L A E Ø P B
PWJ 0604 6 4 52.5 21 22 11
PWJ 0806 8 6 55 21 26 13
PWJ 1008 10 8 62.5 25 29.5 14.5
PWJ 1210 12 10 72 26 37 18.5

PA

Model Ø D Ø P T L N E A B H
( Hex )		 ORIFICE
PA 04 - M 5 4 11 M 5 * 0.8 p 18.2 22.0 27.0 4.0 15.4 8 1.5
PA 06 - 01 6 13 R 1 / 8 25.0 25.6 31.0 8.0 15.9 12 3.0
PA 08 - 02 8 14.6 R 1 / 4 28.8 28.8 37.5 10.0 18.3 15 4.5
PA 10 - 02 10 18 R 1 / 4 28.8 36.4 40.4 10.0 21.8 15 4.5
PA 10 - 03 10 18 R 3 / 8 32.7 36.4 44.4 11.0 21.8 19 4.3
PA 12 - 03 12 20 R 3 / 8 32.7 42.0 45.2 11.0 22.2 19 4.3
PA 12 - 04 12 20 R 1 / 2 39.4 42.0 51.2 14.0 22.2 24 6.0

PAF

Model Ø D Ø P T 1 T 2 L N E A 1 A 2 B H
( Hex )		 ORIFICE
PAF 04 - M 5 4 11 M 5 * 0.8 p M 5 * 0.8 p 20.0 21.0 25.1 3.6 7.0 16.3 8 1.5
PAF 06 - 01 6 13 R 1 / 8 R 1 / 8 30.2 25.0 31.2 8.0 8.0 17.6 14 3.0
PAF 08 - 02 8 14.6 R 1 / 4 R 1 / 4 35.5 29.6 36.8 10.0 10.0 18.7 17 4.0
PAF 10 - 02 10 18 R 1 / 4 R 1 / 4 35.5 35.0 38.8 10.0 10.0 19.6 17 4.0
PAF10 - 03 10 18 R 3 / 8 R 3 / 8 41.2 35.0 42.2 11.0 11.0 19.6 21 5.0
PAF 12 - 03 12 20 R 3 / 8 R 3 / 8 41.2 41.0 45.9 11.0 11.0 21.9 21 5.0
PAF 12 - 04 12 20 R 1 / 2 R 1 / 2 50.0 41.0 50.1 14.0 14.0 21.9 24 6.0

PKJ reducer triple branch union

Model Ø D 1 Ø D 2 Ø J L E A M 1 M2 Ø P 1 Ø P 2 C
PKJ 04 4 4 4 76 27 20.5 9 41.5 14.3 13 3.2
PKJ 0604 6 4 6 77.5 27 22 9 41.5 14.3 13 3.2
PKJ 06 6 6 6 77.5 27 22 9 41.5 14.3 13 3.2
PKJ 0804 8 4 8 80 27 24 9 41.5 14.3 13 3.2
PKJ 0806 8 6 8 80 27 24 9 41.5 14.3 13 3.2
PKJ 08 8 8 8 98.5 33 24 12 47.8 18 14.5 4.2
PKJ 1006 10 6 10 101 32.5 25.5 12 47.8 18 14.5 4.2
PKJ 1008 10 8 10 101 32.5 25.5 12 47.8 18 14.5 4.2
PKJ 10 10 10 10 110.5 37.5 25.5 12 56.5 18.5 18.5 3.5
PKJ 1208 12 8 12 113.5 37 27 15.5 59.5 21 18.4 4.5
PKJ 1210 12 10 12 113.5 38 27 15.5 59.5 21 18.4 4.5
PKJ 12 12 12 12 121 39.5 27 15.5 67.5 21 21 4.5

PYJ plug - in J

Model Ø D 1 Ø D 2 L A E Ø P B
PYJ 04 4 4 52 20.5 22 11 15
PYJ 0604 6 4 54 22 22 11 15
PYJ 06 6 6 54.5 22 26 13 15
PYJ 0806 8 6 56.5 24 26 13 15
PYJ 08 8 8 59 24 29.5 14.5 18
PYJ 1008 10 8 64 25.5 29.5 14.5 18
PYJ 10 10 10 69.5 25.5 37 18.5 22
PYJ 1210 12 10 73.5 27 37 18.5 22
PYJ 12 12 12 74 27 42 21 22

Online Inquiry
