ES Series Float Level Switch

Feature

  • Compact structure. Easy to install and use. Dependable output performance.
  • Choice of various floating ball materials: stainless steel.
  • The ES series float level switch uses easyto-install level controller. It does not have a complex circuit and is not interfered. When a correct material is selected, it can be used for fluid under various pressure or temperature conditions.

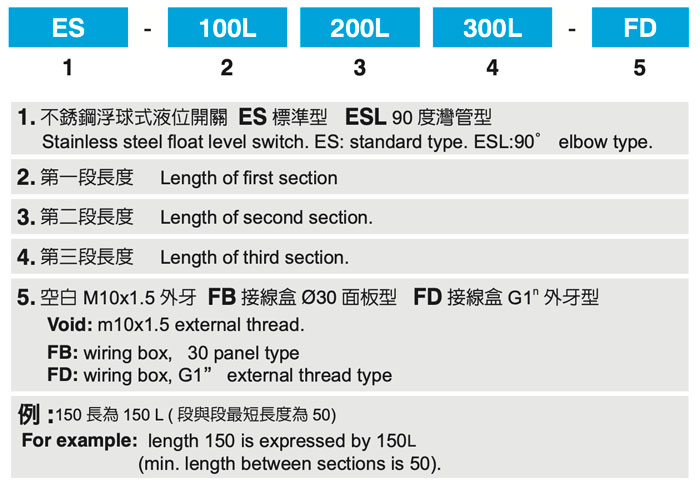

Ordering Code

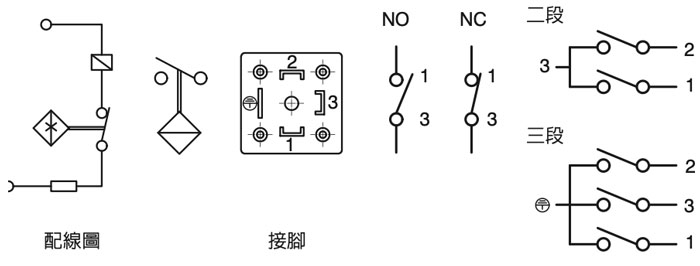

Wiring Diagram

Dimensions

Specification

Type ES Series
Induction Magnetic
Loading Voltage DC 24V AC 110V AC 220V
Loading Current 45mA-MAX 35mA-MAX 25mA-MAX
Working Temperature -10°C ~ 70°C
