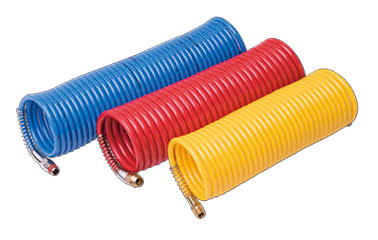

PA6 Recoil Tube ( CPA6 )
Feature
- Made of PA6 ( Polyamide 6 ), offering low moisture absorption and excellent dimensional stability.
- Provides high abrasion resistance and good chemical resistance for industrial pneumatic applications.
- Maintains dimensional stability under repeated extension, retraction, and pressure.
- Can be extended and returned as required by the application.

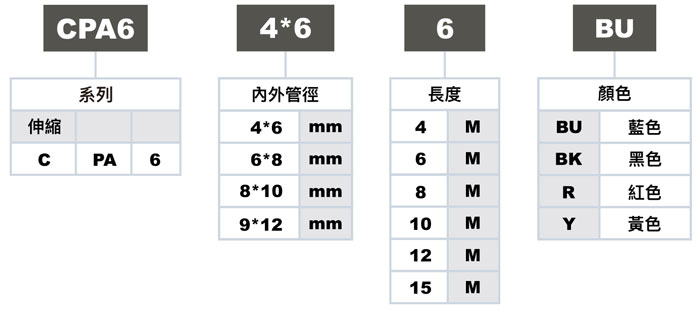

Ordering Code

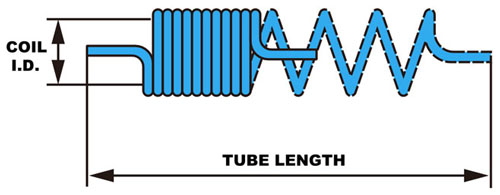

Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Coil I.D. |
Working Pressure at 23°C |
Fitting (PT/G) |
Length (m) |
| CPA6-4*6 |
4 mm |
6 mm |
60 mm |
20 bar |
1/4" Male |
4 / 6 / 8 |
| CPA6-6*8 |
6 mm |
8 mm |
75 mm |
16 bar |
1/4" Male |
4 / 6 / 8 / 10 / 12 / 15 |
| CPA6-8*10 |
8 mm |
10 mm |
75 mm |
15 bar |
1/4" Male / 3/8" Male |
4 / 6 / 8 / 10 / 12 / 15 |
| CPA6-9*12 |
9 mm |
12 mm |
75 mm |
16 bar |
1/4" Male / 3/8" Male |
6 / 8 / 10 / 12 / 15 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Coil I.D. |
Working Pressure at 75°F |
Fitting (NPT) |
Length (ft) |
| CPA6-31614 |
3/16" |
1/4" |
2" |
250 psi |
1/4" Male |
12 / 15 / 20 |
| CPA6-14516 |
1/4" |
5/16" |
3" |
220 psi |
1/4" Male |
12 / 25 / 30 / 50 |
| CPA6-51638 |
5/16" |
3/8" |
3" |
175 psi |
1/4" Male |
12 / 25 / 30 / 50 |
| CPA6-381532 |
3/8" |
15/32" |
3" |
240 psi |
1/4" Male / 3/8" Male |
12 / 25 / 30 / 50 |
| CPA6-1258 |
1/2" |
5/8" |
4" |
210 psi |
1/2" Male |
12 / 25 / 30 / 50 |
