Tubing

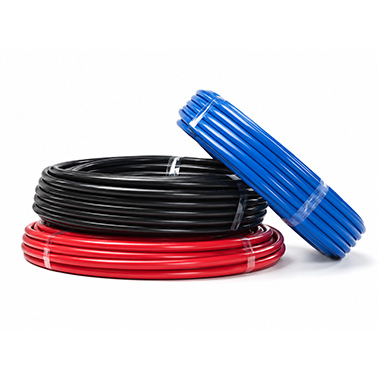

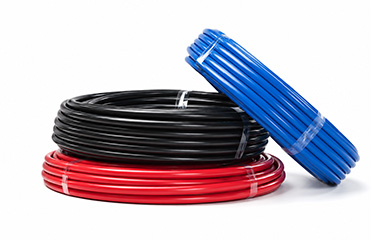

DIN Air Brake Tubing ( DIN )

Feature

  • Maintains dimensional stability and resists deformation caused by pressure fluctuations.
  • Manufactured in accordance with DIN 74324, with the tubing construction and pressure performance designed to meet the standard requirements, ensuring stable and consistent physical and mechanical properties within the specified pressure and temperature ranges.

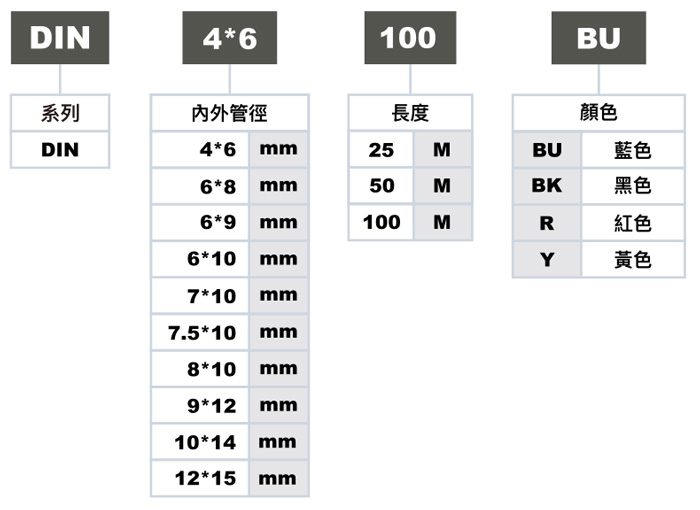

Ordering Code

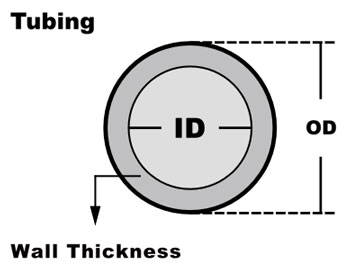

Dimensions

Metric Size Specification

Type Tube I.D. Tube O.D. Wall Thickness Working Pressure at 23°C Burst Pressure at 23°C Weight (g/m) Length (m)
DIN-4*6 4 mm 6 mm 1 mm 36 bar 108 bar 16.1 25 / 50 / 100
DIN-6*8 6 mm 8 mm 1 mm 25 bar 75 bar 22.5 25 / 50 / 100
DIN-6*9 6 mm 9 mm 1.5 mm 36 bar 108 bar 36.2 25 / 50 / 100
DIN-6*10 6 mm 10 mm 2 mm 45 bar 135 bar 51.5 25 / 50 / 100
DIN-7*10 7 mm 10 mm 1.5 mm 31 bar 93 bar 41 25 / 50 / 100
DIN-7.5*10 7.5 mm 10 mm 1.25 mm 25 bar 75 bar 35.2 25 / 50 / 100
DIN-8*10 8 mm 10 mm 1 mm 20 bar 60 bar 29 25 / 50 / 100
DIN-9*12 9 mm 12 mm 1.5 mm 25 bar 75 bar 50.7 25 / 50 / 100
DIN-10*14 10 mm 14 mm 2 mm 30 bar 90 bar 77.2 25 / 50 / 100
DIN-12*15 12 mm 15 mm 1.5 mm 20 bar 60 bar 65.2 25 / 50 / 100
DIN-12*16 12 mm 16 mm 2 mm 25 bar 75 bar 90.1 25 / 50 / 100
DIN-14*18 14 mm 18 mm 2 mm 75 bar 66 bar 103 25 / 50 / 100
