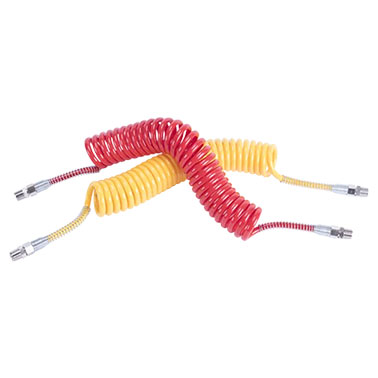

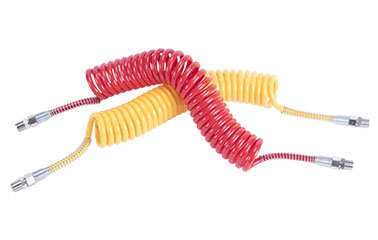

DIN Air Brake Coil Hose ( CDIN )
Feature
- Maintains dimensional stability and resists deformation caused by pressure fluctuations.
- Manufactured in accordance with DIN 74324, with the tubing construction and pressure performance designed to meet the standard requirements, ensuring stable and consistent physical and mechanical properties within the specified pressure and temperature ranges.
- Spiral design, suitable for repeated extension and retraction in air brake line applications.

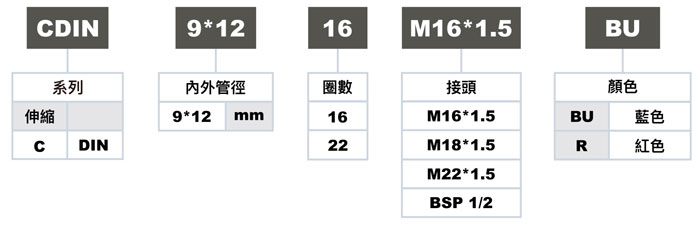

Ordering Code

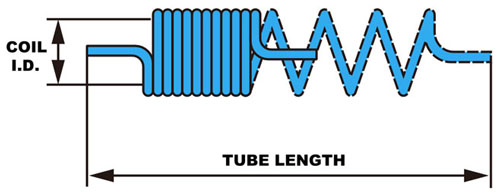

Dimensions
Metric Size Specification
| Type |
Tube I.D. |
Tube O.D. |
Coil I.D. |
Number of Coils |
End Tail Length |
Working Length |
Fitting |
Tail Type |
| CDIN-2216 |
9 mm |
12 mm |
76 mm |
22 |
100 / 100 mm |
3.35 m |
M16*1.5 |
b / d |
| CDIN-2218 |
9 mm |
12 mm |
76 mm |
22 |
100 / 100 mm |
3.35 m |
M18*1.5 |
b / d |
| CDIN-2222 |
9 mm |
12 mm |
76 mm |
22 |
100 / 100 mm |
3.35 m |
M22*1.5 |
b / d |
| CDIN-2212 |
9 mm |
12 mm |
76 mm |
22 |
100 / 100 mm |
3.35 m |
BSP 1/2 |
b / d |
| CDIN-1616 |
9 mm |
12 mm |
76 mm |
16 |
100 / 900 mm |
3.35 m |
M16*1.5 |
a / c |
| CDIN-1618 |
9 mm |
12 mm |
76 mm |
16 |
100 / 900 mm |
3.35 m |
M18*1.5 |
a / c |
| CDIN-1622 |
9 mm |
12 mm |
76 mm |
16 |
100 / 900 mm |
3.35 m |
M22*1.5 |
a / c |
| CDIN-1612 |
9 mm |
12 mm |
76 mm |
16 |
100 / 900 mm |
3.35 m |
BSP 1/2 |
a / c |
