Auxiliary Components

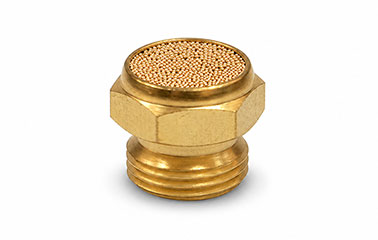

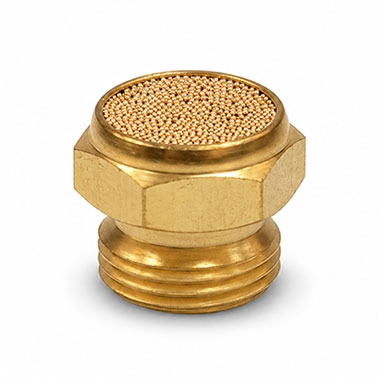

S Brass Flat-Head Silencer

Feature

  • Direct threaded installation for easy replacement and maintenance.
  • Available in various thread sizes for different pneumatic applications.
  • Made of brass for excellent durability, heat resistance, and mechanical strength.

Ordering Code

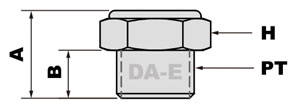

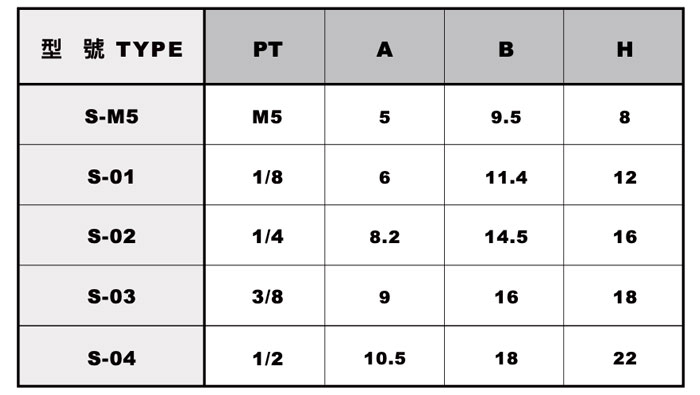

Dimensions

Specification

Type Material Applicable Fluid Pressure Range Proof Pressure Temperature Range
S-M5 Brass Air 0-9 kgf/cm² 13 kgf/cm² 0~60°C / 32~140°F
S-01
S-02
S-03
S-04
