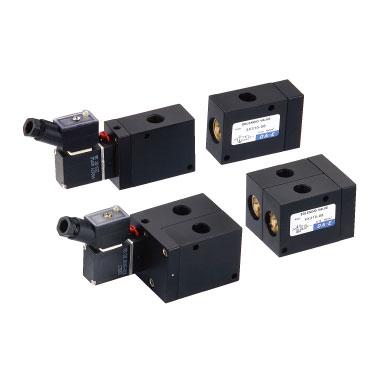

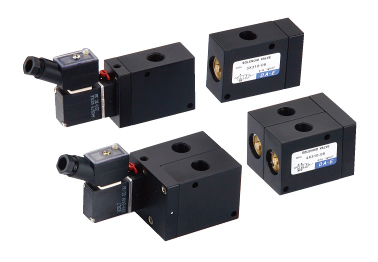

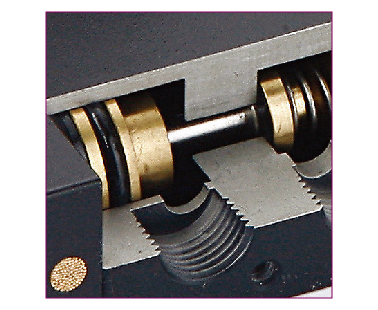

3 D 300 (3 X 300) Series Solenoid Valve
Feature
- German burkert use imported solenoid valve.
- AC and DC coil design using long power.
- Low power consumption, fast response, high flow, long life.
- Use the special structure design and manufacturing, super-resistant environment.
- External boot design, can be used as a stress-free move.
- For a variety of gas / liquid and other places.

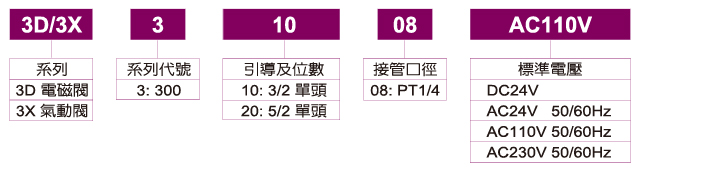

Ordering Code

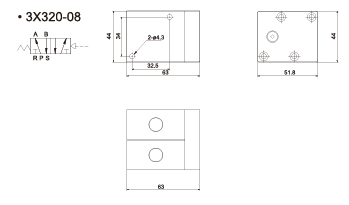

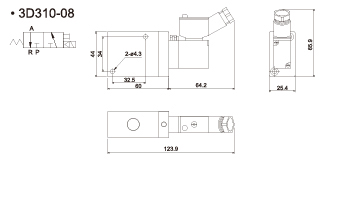

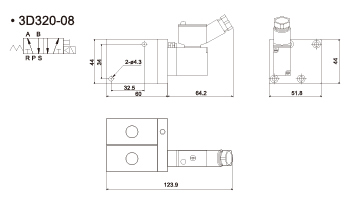

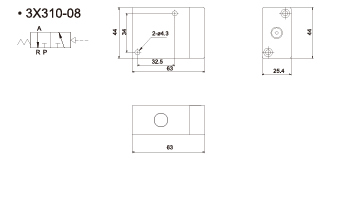

Dimensions
Specification
| Usually flag |
3 D 310 - 08 |
3 D 320 - 08 |
3 X 310 - 08 |
3 X 320 - 08 |
| Number of positions |
Three two |
Five two |
Three two |
Five two |
| Port size |
G 1 / 4 " |
| Effective area |
50 mm 2（ CV = 2.79 ） |
| Known as flow |
2790 NI / min |
| Fluid |
Compressed air / liquid |
| Pressure range |
0 ~ 10 bar |
0 ~ 10 kgf / cm 2 |
| Operating temperature |
-5 ~ 60 ° C （ 41 ~ 140 ° F ） |
-5 ~ 60 ° C （ 41 ~ 140 ° F ） |
| The voltage difference |
± 10 ° |
± 10 ° |
| Duty cycle |
100 ％ |
100 ％ |
| Insulation class |
Class F |
Class F |
| Protection class |
IP 65 |
IP 65 |
| Weight |
250 g |
450 g |
200 g |
400 g |
