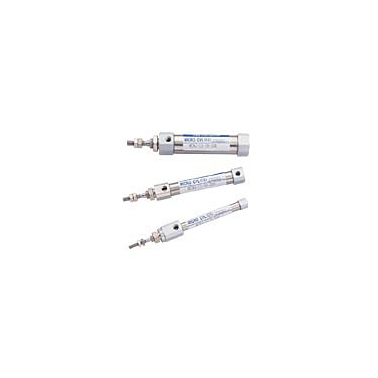

Pen-Type Pneumatic Cylinder - MCMJ
Feature
- Bores : φ 6 , 10 , 16 ( mm )
- Free to oil: use oil-alloy special bearing bush, the piston rod without to oil.
- High quality; durable good: pneumatic cylinder with advanced stainless steel, wear and corrosion resistance.
- Diversification bracket: a variety of stationary and non-stationary bracket available.
Ordering Code
Detailed Specifications
| Bores ( mm ) | 6 , 10 , 16 |
| Pipe diameter size | M 5 × 0.8 |
| Fluid | Air |
| Maximum working pressure | 0.7 MPa |
| Minimum working pressure | Single action: the introduction of type 0.15 ~ 0.25 MPa, extrusion-type 0.15 ~ 0.2 MPa
Double acting: 0.06 ~ 0.12 MPa |
| Withstanding pressure | 1 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Use speed range | 50 ~ 500 mm / sec |
| Sensor | RCM , RCS |
| Sensor ties | BJ 6 ~ BJ 16 BM 10 ~ BM 16 |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCM |  |
RCM ( Reed ) 、 RNM ( No contacts NPN ) 、 RPM ( No contacts PNP ) , Applicable cylinder model : MCMA 、 MCMB 、 MCKMB 、 MCMBL 、 MCMI 、 MCBMI 、 MCMJ | ||
| Sensor / RCS |  |
RCS ( Reed ) 、 RNS ( No contacts NPN ) 、 RPS ( No contacts PNP ) , Applicable cylinder model : MCMA 、 MCMI 、 MCMJ | ||
