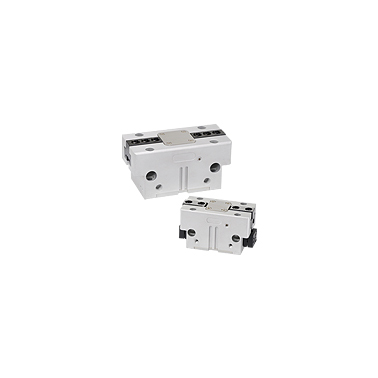

Slim Parallel Robot - MCHS
Feature
- Cylinder specification: φ 50 ~ 300.
- Compact size design, ensure that there is minimum interference, and robust t-rail design, to ensure accurate clamp the workpiece.
- Up to the maximum torque for long Jaws design.
- Oval piston drive design ensures maximum clamping force.
- Backplane supply: free line direct connection or screw connections air supply channel, to ensure that all kinds of automation systems jieke elasticity of supply compressed air.
- Optional: dust cover modules, high temperature, corrosion resistance, please lingqia business people ask, also with mechanical gripping force safety device.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Cylinder specification | 50 , 66 , 80 , 100 , 125 , 160 , 200 , 300 |
| Single claw stroke ( mm ) | 4 ~ 30 |
| Jaws closing force | 170 ~ 6675 N |
| Jaws opening force | 185 ~ 6830 N |
| Fluid | Air |
| Working pressure range | 0.3 ~ 0.8 MPa |
| Ambient temperature | ＋5 ℃ ~ ＋ 80 ℃ |
| Compressed air consumption | 4.1 ~ 980 cm 3 |
| To oil | No need to oil |
| Repeat accuracy | 0.01 , 0.02 , 0.04 ± mm |
| Sensor | RDF , RDFV |
| Proximity sensor | RDP8 ( 2-wire ), RNP8 ( 3-wire ) |
| Accessories | Sensor mounting block ， find the heart bush |
| Weight | 0.14 ~ 14 kg |
| Recommend workpiece weight | 0.85 ~ 32 kg |
