MSBD Blocking Cylinder
Feature
- Bores: φ 20 ~ 80 ( mm ), double acting attached spring, wheel attachment blocking buffer, working pressure range: 0.2 ~ 1 MPa, Withstanding pressure: 1.5 MPa, ambient temperature: -5 ℃ ~ + 60 ℃ ( Do not freeze ) full seriesAre attached magnetic.

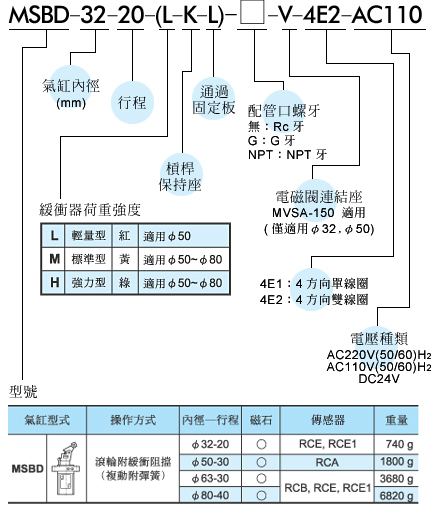

Ordering Code
Detailed Specifications
| Operation type | Double action attached spring 、 wheel attachment blocking buffer |
| Actuator bore - stroke | φ 32 - 20 , φ 50 - 30 , φ 63 - 30 , φ 80 - 40 |
| Fluid | Air |
| Working pressure range | 0.2 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR bumper |
| Magnet | Are attached magnetic |
| Sensor | RCA for φ 50 , RCB |
| Sensor holder | HS for φ 50 |
| Weight | 740 g , 1800 g , 3680 g , 6820 g |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCA |  |
RCA ( Reed ) 、RNA ( No contacts NPN ) 、RPA ( No contactsPNP ) , Applicable cylinder model : MCQA 、MCQV2 、MCQV 、MCMA 、MCMB 、MCKMB 、MCMBL 、MCMI 、MCCG 、MCCN 、MCKA 、MSB * 。 | ||
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD | ||
