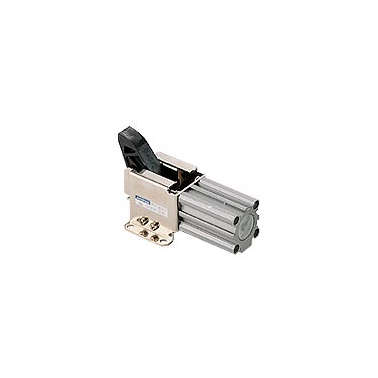

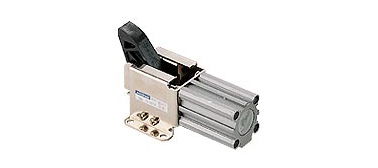

MSL * Series - MSLP
Feature
- Bores: φ 32 mm, working pressure range: 0.2 ~ 1 MPa, withstanding pressure: 1.5 MPa, cushioning device: NBR cushion pads, are attached magnetically.

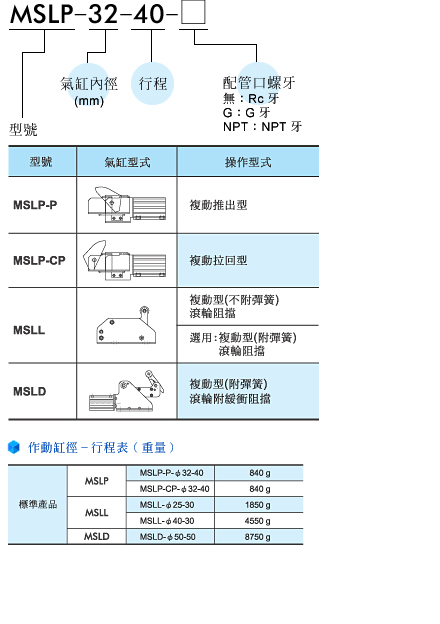

Ordering Code
Detailed Specifications
| Operation type | Double action - Direct barrier |
| Actuator bore - stroke | φ 32 - 40 |
| Fluid | Air |
| Working pressure range | 0.2 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR bumper |
| Magnet | Are attached magnetic |
| Sensor | RCB |
| Weight | 840 g |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD | ||
