Parts And Accessories

Standard Connections

Order No.

 Type

 Tube Dia. ( Ø D )

  Metric system ( MM )
Code 3 4 6 8 10 12 16
Size ( Dia ) Ø 3 Ø 4 Ø 6 Ø 8 Ø 10 Ø 12 Ø 16
 Thread Size ( Ø D )

  Metric Thread BSPT Thread BSPP Thread
Code M 3 M 5 M 6 01 02 03 04 01 G 02 G 03 G 04 G
Size M 3 x 0.5 M 5 x 0.8 M 6 x 1.0 PT 1 / 8 PT 1 / 4 PT 3 / 8 PT 1 / 2 G 1 / 8 G 1 / 4 G 3 / 8 G 1 / 2
Release Ring
No code : Release Ring ( Polyacetal )
NI : Release Ring ( Metallic body )

 Body Color

Code No code W BU
Color Black Ivory Blue

Construction

Package : 10 pcs in a bag

* This Quick-fitting joint is used in pneumatic piping. ( Use with water is possible depending on the conditions. )
* The Tube Fitting comes in a wide variety of Models to meet all your needs in pneumatic piping.
* Even after installation , the direction of the tubing can be changed freely.

Specifications

Fluid admitted Air , Vacuum , Water ( conditional )
Service pressure range 0 ~ 9 kgf / cm 2 ( 0 ~ 900 kPa )
Negative pressure - 750 mmHg ( 10 Torr )
Service temperature range 0 ~ 60 ° C

Conditions of Water

* Service temperature range : 0 ~ 60 ° C
* Operating pressure : 0 ~ 3.2 kgf / cm 2
* Be sure to install the insert ring.

Tube Fitting ( Black )

PC
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 3.2 3
PC 4 - M 6 3.9 M 6 X 1.0 10 12.5 18.1 3 4.6 3
PC 4 - 01 7 PT 1 / 8 10 12.8 16.3 3 5.6 3
PC 4 - 02 9.6 PT 1 / 4 14 12.9 17.7 3 12.8 3
PC 6 - M 5 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 4.6 2
PC 6 - M 6 3.7 M 6 X 1.0 10 14.3 18.5 3 4.8 3
PC 6 - 01 7 PT 1 / 8 10 15.8 19.3 4 5.6 4
PC 6 - 02 9.6 PT 1 / 4 14 13.9 18.7 4 11.6 4
PC 6 - 03 9.6 PT 3 / 8 17 14.9 19.7 4 22.8 4
PC 8 - 01 8 13.6 7 PT 1 / 8 14 18.5 24 27.5 5 12 5
PC 8 - 02 9.6 PT 1 / 4 14 20.3 24.2 6 13.2 6
PC 8 - 03 9.6 PT 3 / 8 17 19.4 24.2 6 22.2 6
PC 8 - 04 12 PT 1 / 2 21 19.2 25.2 6 40.4 6
PC 10 - 01 10 16.7 7 PT 1 / 8 17 20.6 26.1 29.6 5 19.4 5
PC 10 - 02 9.6 PT 1 / 4 17 20.3 24.3 29.1 7 20 7
PC 10 - 03 9.6 PT 3 / 8 17 15.7 21 25.8 8 21.2 8
PC 10 - 04 12 PT 1 / 2 21 20.6 19.9 25.9 8 37 8
PC 12 - 02 12 19.6 9.6 PT 1 / 4 21 23.2 30 34.8 – 35 7
PC 12 - 03 9.6 PT 3 / 8 21 27.4 32.2 – 32.4 9
PC 12 - 04 12 PT 1 / 2 21 26.2 32.2 – 40.2 9

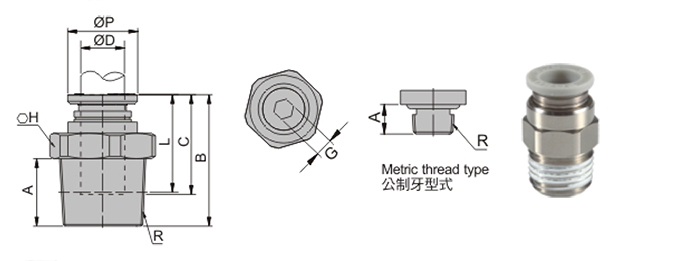

POC
Hex. Holed Straight

Unit : m / m

Model Tube dia. ØD ØP R H E F G Mass (g) Orifice
POC 3 - M 3 - NI 3 8 M 3 X 0.5 13.5 3 1.5 8 3.6 1.5
POC 3 - M 5 - NI M 5 X 0.8 3.5 2 2
POC 4 - M 3 - NI 4 8 M 3 X 0.5 14 3 1.5 8 2.8 1.5

PCF - G
Female Straight

Unit : m / m

Model Tube dia. ØD A R B C H Mass (g) Orifice
PCF 4 - M 5 4 5.5 M 5 X 0.8 19.4 12.4 8 4.8 3
PCF 4 - 01 G 8.5 G 1 / 8 22.4 12.4 13 10.2 3
PCF 4 - 02 G 11 G 1 / 4 24.9 12.4 17 18.2 3
PCF 6 - 01 G 6 8.5 G 1 / 8 24.2 14.2 13 11.4 4.8
PCF 6 - 02 G 11 G 1 / 4 26.7 14.2 17 19 4.8
PCF 8 - 01 G 8 9 G 1 / 8 29 18.5 14 17.4 6.8
PCF 8 - 02 G 11 G 1 / 4 31 18.5 17 24.2 6.8
PCF 8 - 03 G 11 G 3 / 8 31 18.5 21 32.2 6.8
PCF 10 - 02 G 10 11 G 1 / 4 33.1 20.6 17 27.8 8.5
PCF 10 - 03 G 11 G 3 / 8 33.1 20.6 21 37.1 8.5
PCF 10 - 04 G 15 G 1 / 2 36.8 20.3 24 45.8 8.5
PCF 12 - 03 G 12 11 G 3 / 8 35.7 23.2 21 47 10.5
PCF 12 - 04 G 15 G 1 / 2 39.7 24.1 24 55.4 10.5

PC - G
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 3.2 3
PC 4 - M 6 3.9 M 6 X 1.0 10 12.4 12.5 18.1 3 4.6 3
PC 4 - 01 G 7 G 1 / 8 10 10.2 13.1 16.8 3 3.2 3
PC 4 - 02 G 9.5 G 1 / 4 14 12.4 12.9 17.6 3 13.4 3
PC 6 - M 5 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 4.6 2
PC 6 - M 6 3.7 M 6 X 1.0 10 14.2 14.3 18.5 3 4.8 3
PC 6 - 01 G 7.5 G 1 / 8 10 14.2 16 19.8 4 4.4 4
PC 6 - 02 G 8.5 G 1 / 4 14 14.2 13.3 17.6 4 6.4 4
PC 6 - 03 G 9.6 G 3 / 8 17 14.2 14.9 19.7 4 24 4
PC 8 - 01 G 8 13.6 7.5 G 1 / 8 14 18.5 24.2 28 5 14 5
PC 8 - 02 G 8.5 G 1 / 4 14 18.5 18.8 23.1 6 12.8 6
PC 8 - 03 G 9.6 G 3 / 8 17 18.5 19.4 24.2 6 22.6 6
PC 10 - 02 G 10 16.7 9.5 G 1 / 4 17 20.6 24.6 29.3 7 20.4 7
PC 10 - 03 G 9.6 G 3 / 8 17 20.6 21 25.8 8 21 8
PC 10 - 04 G 11 G 1 / 2 21 20.6 19.4 24.9 8 36.4 8
PC 12 - 02 G 12 19.6 9.5 G 1 / 4 21 23.2 29.9 34.7 – 35.6 7
PC 12 - 03 G 11 G 3 / 8 21 23.2 25.7 31.2 – 37.8 9
PC 12 - 04 G 11 G 1 / 2 21 23.2 25.7 31.2 – 49 9

PU
Union Straight

Unit : m / m

Model Tube dia. ØD C B ØP Mass (g) Orifice
PU 4 4 13.2 27.8 8 2.6 3.3
PU 6 6 13.8 30.4 10 4.2 4.7
PU 8 8 19 39 13.6 8.2 6.7
PU 10 10 20.4 42.8 16.7 13.6 8.5
PU 12 12 22.6 47 19.6 18.8 10.5

PU - NI
Union Straight

Unit : m / m

Model Tube dia. ØD C B ØP Mass (g) Orifice
PU 4 - NI 4 12.8 27 8 3.5 3.3
PU 6 - NI 6 13.8 29.6 10 5 4.7
PU 8 - NI 8 18.6 38.2 13.6 10.5 6.7
PU 10 - NI 10 20 42 16.7 17.4 8.5
PU 12 - NI 12 22.2 46.2 19.6 26.2 10.5
PU 16 - NI -ED 16 22 45.8 23 64.4 14.2

Note : " ED " means metallic body

PG
Different Diam. Union Straight

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C B ØP 1 ØP 2 Mass (g) Orifice
PG 6 - 4 6 4 13.2 27.8 10 8 2.6 3
PG 8 - 6 8 6 13.8 30.4 13.6 10 4.2 4.5
PG 10 - 8 10 8 19 39 16.7 13.6 8.2 6
PG 12 - 10 12 10 20.4 42.8 19.6 16.7 13.6 8.5

PG - NI
Different Diam. Union Straight

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C B ØP 1 ØP 2 Mass (g) Orifice
PG 6 - 4 - NI 6 4 12.8 27 10 8 3.5 3
PG 8 - 6 - NI 8 6 13.8 29.6 13.6 10 5 4.5
PG 10 - 8 - NI 10 8 18.6 38.2 16.7 13.6 10.5 6
PG 12 - 10 - NI 12 10 20 42 19.6 16.7 17.4 8.5

PL
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 4 - M 3 4 3 13.6 17 8 13.7 15.5 8 M 3 X 0.5 3 1.1
PL 4 - M 5 4 13.3 17 13.7 15.5 8 M 5 X 0.8 3.2 2
PL 4 - M 6 4 16.2 20.5 13.7 15.5 10 M 6 X 1.0 4.6 2.5
PL 4 - 01 9.6 20 24 13.7 15.5 10 PT 1 / 8 6.4 4
PL 4 - 02 7 17.2 21 13.7 15.5 14 PT 1 / 4 15.2 4
PL 6 - M 5 6 4 14.1 19 10 13.8 16.2 8 M 5 X 0.8 4 2
PL 6 - M 6 4 15.7 20.6 13.8 16.5 10 M 6 X 1.0 5.4 2.5
PL 6 - 01 7 18.3 23 13.9 16.5 10 PT 1 / 8 7.4 4
PL 6 - 02 9.4 21.1 26 14 15.7 14 PT 1 / 4 16.2 4
PL 6 - 03 9.8 21.2 26 14 16.1 17 PT 3 / 8 19.6 4
PL 8 - 01 8 7 21.5 28 13.6 20.2 22.6 10 PT 1 / 8 9.8 5.4
PL 8 - 02 9.5 22 28.5 20 22.5 14 PT 1 / 4 16 5.4
PL 8 - 03 9.3 22.3 29 20.1 22.5 17 PT 3 / 8 20.6 5.4
PL 8 - 04 11.8 25.2 31.5 20.1 22.3 21 PT 1 / 2 33.8 5.4
PL 10 - 01 10 6.9 23 31 16.7 24.3 27.7 10 PT 1 / 8 17 5
PL 10 - 02 9.6 25.2 33 24.1 27.6 14 PT 1 / 4 18.4 5
PL 10 - 03 9.4 24.9 33 24.2 27.6 17 PT 3 / 8 23.6 5
PL 10 - 04 12 27 35 24.3 27.5 21 PT 1 / 2 34.8 5
PL 12 - 02 12 12 23.2 32.5 19.6 24.7 28.2 14 PT 1 / 4 21.4 5
PL 12 - 03 9.6 26.6 35 24.9 28.9 17 PT 3 / 8 26.6 8
PL 12 - 04 9.6 26 35 25 28.8 21 PT 1 / 2 37.8 8

PL - NI
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 3 - M 3 - NI 3 3 15.2 19.5 7 12.7 15 8 M 3 X 0.5 3.8 1.1
PL 3 - M 5 - NI 3.2 13.3 17.2 8 14.5 8 M 5 X 0.8 3.8 2
PL 3 - M 6 - NI 4 16.2 20.5 12.7 15 10 M 6 X 1.0 5.6 2
PL 4 - M 3 - NI 4 3.5 13.6 17 8 13.6 15 8 M 3 X 0.5 3.9 1.1
PL 4 - M 5 - NI 4 13.3 17 13.6 15 8 M 5 X 0.8 4.1 2
PL 4 - M 6 - NI 4 16.2 20.5 13.6 15 10 M 6 X 1.0 5 2.5
PL 4 - 01 - NI 9.6 20 24 13.6 15 10 PT 1 / 8 7.3 4
PL 4 - 02 - NI 7 17.2 21 13.6 15 14 PT 1 / 4 16.1 4
PL 6 - M 5 - NI 6 4 14.1 19 10 13.7 15.7 8 M 5 X 0.8 4.8 2
PL 6 - M 6 - NI 6.8 15.7 20.6 13.7 15.6 10 M 6 X 1.0 6.2 2.5
PL 6 - 01 - NI 7 18.3 23 13.7 15.6 10 PT 1 / 8 8.2 4
PL 6 - 02 -NI 9.4 21.1 26 13.9 15.2 14 PT 1 / 4 17 4
PL 6 - 03 - NI 9.8 21.2 26 13.9 15.6 17 PT 3 / 8 20.4 4
PL 8 - 01 - NI 8 7 21.5 28 13.6 20.1 22.1 10 PT 1 / 8 12.1 5.4
PL 8 - 02 - NI 9.5 22 28.5 19.9 22 14 PT 1 / 4 18.3 5.4
PL 8 - 03 - NI 9.3 22.3 29 20 22 17 PT 3 / 8 22.9 5.4
PL 8 - 04 - NI 11.8 25.2 31.5 20 21.8 21 PT 1 / 2 36.1 5.4
PL 10 - 01 - NI 10 6.9 23 31 16.7 24.2 27.2 10 PT 1 / 8 20.8 5
PL 10 - 02 - NI 9.6 25.2 33 24 27.1 14 PT 1 / 4 22.2 5
PL 10 - 03 - NI 9.4 24.9 33 24.1 27.1 17 PT 3 / 8 27.4 5
PL 10 - 04 - NI 12 27 35 24.2 27 21 PT 1 / 2 38.6 5
PL 12 - 02 - NI 12 12 23.2 32.5 19.6 24.6 27.7 14 PT 1 / 4 28.8 5
PL 12 - 03 - NI 9.6 26.6 35 24.8 28.4 17 PT 3 / 8 34 8
PL 12 - 04 - NI 9.6 26 35 24.9 28.3 21 PT 1 / 2 45.2 8
PL 16 - 03 - NI 16 9.6 30.8 43.5 23 22.8 31.6 21 PT 3 / 8 41.4 11.7
PL 16 - 04 - NI 12 30.5 43.2 22.8 31.6 21 PT 1 / 2 46.6 11.7

PL - G
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 4 - M 3 4 3 13.6 17 8 13.7 15.5 8 M 3 X 0.5 3 1.1
PL 4 - M 5 4 13.3 17 13.7 15.5 8 M 5 X 0.8 3.2 2
PL 4 - M 6 4 16.2 20.5 13.7 15.5 10 M 6 X 1.0 4.6 2.5
PL 4 - 01 - G 7.5 17.5 21.8 13.2 15.5 10 G 1 / 8 6.4 4
PL 4 - 02 - G 8.5 19 23.3 13.2 15.5 14 G 1 / 4 14 4
PL 4 - 03 - G 8.5 19.5 23.3 13.2 15.5 17 G 3 / 8 20 4
PL 6 - M 5 6 4 14.1 19 10 13.8 16.2 8 M 5 X 0.8 4 2
PL 6 - M 6 4 15.7 20.6 13.8 16.5 10 M 6 X 1.0 5.4 2.5
PL 6 - 01 - G 7.5 18.8 24.4 13.9 16.5 10 G 1 / 8 7.4 4
PL 6 - 02 - G 8.5 20.1 25 13.9 17.2 14 G 1 / 4 6.2 4
PL 6 - 03 - G 8.5 20.2 25 13.9 17.2 17 G 3 / 8 18.4 4
PL 8 - 01 - G 8 7.5 22.1 29 13.6 15.6 23.3 10 G 1 / 8 9.8 5.4
PL 8 - 02 - G 8.5 20.6 29 15.6 23.3 14 G 1 / 4 14.8 5.4
PL 8 - 03 - G 8.5 21.3 29 15.6 23.3 17 G 3 / 8 19.4 5.4
PL 8 - 04 - G 10 23.3 30 15.6 23.3 21 G 1 / 2 30.4 5.4
PL 10 - 02 - G 10 10 25.1 34.1 16.7 21.3 27.9 14 G 1 / 4 17.6 5
PL 10 - 03 - G 8.5 23.7 32.7 21.3 27.9 17 G 3 / 8 24 5
PL 10 - 04 - G 10 25.1 34.1 21.3 27.9 21 G 1 / 2 31.8 5
PL 12 - 02 - G 12 10 29.7 37.1 19.6 23.5 29.7 14 G 1 / 4 20.6 5
PL 12 - 03 - G 8.5 25.5 35.7 23.5 29.7 17 G 3 / 8 27 8
PL 12 - 04 - G 10 26.9 37.2 23.5 29.7 21 G 1 / 2 34.8 8

PL - G + NI
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 3 - M 3 - NI 3 3 15.2 19.5 7 12.7 15 8 M 3 X 0.5 3.8 1.1
PL 3 - M 5 - NI 3.2 13.3 17.2 8 14.5 8 M 5 X 0.8 3.8 2
PL 3 - M 6 - NI 4 16.2 20.5 12.7 15 10 M 6 X 1.0 5.6 2
PL 4 - M 3 - NI 4 3.5 13.6 17 8 13.6 15 8 M 3 X 0.5 3.9 1.1
PL 4 - M 5 - NI 4 13.3 17 13.6 15 8 M 5 X 0.8 4.1 2
PL 4 - M 6 - NI 4 16.2 20.5 13.6 15 10 M 6 X 1.0 5 2.5
PL 4 - 01 - NI 7.5 17.5 21.8 12.9 15.2 10 G 1 / 8 7.3 4
PL 4 - 02 G - NI 8.5 19 23.3 12.9 15.2 14 G 1 / 4 14.9 4
PL 4 - 03 G - NI 8.5 19.5 23.3 12.9 15.2 17 G 3 / 8 20.9 4
PL 6 - M 5 - NI 6 4 14.1 19 10 13.7 15.7 8 M 5 X 0.8 4.8 2
PL 6 - M 6 - NI 6.8 15.7 20.6 13.7 15.6 10 M 6 X 1.0 6.2 2.5
PL 6 - 01 G - NI 7.5 18.8 24.4 13.8 17.2 10 G 1 / 8 8.2 4
PL 6 - 02 G - NI 8.5 20.1 25 13.8 17.2 14 G 1 / 4 7 4
PL 6 - 03 G - NI 8.5 20.2 25 13.8 17.2 17 G 3 / 8 19.2 4
PL 8 - 01 G - NI 8 7.5 22.1 29 13.6 15.6 23.3 10 G 1 / 8 12.1 5.4
PL 8 - 02 G - NI 8.5 20.6 29 15.6 23.3 14 G 1 / 4 17.1 5.4
PL 8 - 03 G - NI 8.5 21.3 29 15.6 23.3 17 G 3 / 8 21.7 5.4
PL 8 - 04 G - NI 10 23.3 30 15.6 23.3 21 G 1 / 2 32.7 5.4
PL 10 - 02 G - NI 10 10 25.1 34.1 16.7 19.8 26.9 14 G 1 / 4 21.4 5
PL 10 - 03 G - NI 8.5 23.7 32.7 19.8 26.9 17 G 3 / 8 27.8 5
PL 10 - 04 G- NI 10 25.1 34.1 19.8 26.9 21 G 1 / 2 35.6 5
PL 12 - 02 G - NI 12 10 29.7 37.1 19.6 22 28.2 14 G 1 / 4 28 5
PL 12 - 03 G - NI 8.5 25.5 35.7 22 28.2 17 G 3 / 8 34.4 8
PL 12 - 04 G - NI 10 26.9 37.2 22 28.2 21 G 1 / 2 42.2 8

PLL
Long Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLL 4 - M 5 4 3.3 23.2 27.5 8 13.7 15.5 8 M 5 X 0.8 2
PLL 4 - 01 13.5 28.4 32.7 13.7 15.5 10 PT 1 / 8 4
PLL 4 - 02 16.1 31.6 35.9 13.7 15.5 14 PT 1 / 4 4
PLL 6 - M 5 6 3.3 24.5 30.1 10 13.8 16.2 8 M 5 X 0.8 2
PLL 6 - 01 13.5 29.7 35.3 13.9 16.5 10 PT 1 / 8 4
PLL 6 - 02 16.1 32.9 38.5 14 15.7 14 PT 1 / 4 4
PLL 8 - 01 8 14.5 37 44.4 13.6 20.2 22.6 10 PT 1 / 8 5
PLL 8 - 02 18.1 38.1 45.5 20 22.5 14 PT 1 / 4 5
PLL 8 - 03 16.6 37.6 45 20.1 22.5 17 PT 3 / 8 5
PLL 10 - 02 10 19.6 45.2 54.2 16.7 24.1 27.6 15 PT 1 / 4 8
PLL 10 - 03 19.6 45.3 54.3 24.2 27.6 17 PT 3 / 8 9.8
PLL 10 - 04 22 47.6 56.6 24.3 27.5 21 PT 1 / 2 9.8
PLL 12 - 02 12 19.6 47 57.3 19.7 24.8 28.9 15 PT 1 / 4 8
PLL 12 - 03 19.6 47.1 57.4 24.9 28.9 17 PT 3 / 8 9.2
PLL 12 - 04 22 49.4 59.6 25 28.8 21 PT 1 / 2 9.2

PLL + NI
Long Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLL 4 - M 5 - NI 4 3.3 23.2 27.5 8 13.4 15.2 8 M 5 X 0.8 2
PLL 4 - 01 - NI 13.5 28.4 32.7 13.4 15.2 10 PT 1 / 8 4
PLL 4 - 02 - NI 16.1 31.6 35.9 13.4 15.2 14 PT 1 / 4 4
PLL 6 - M 5 - NI 6 3.3 24.5 30.1 10 13.3 16 8 M 5 X 0.8 2
PLL 6 - 01 - NI 13.5 29.7 35.3 13.4 16 10 PT 1 / 8 4
PLL 6 - 02 - NI 16.1 32.9 38.5 13.5 16 14 PT 1 / 4 4
PLL 8 - 01 - NI 8 14.5 37 44.4 13.6 19.2 21.5 10 PT 1 / 8 5
PLL 8 - 02 - NI 18.1 38.1 45.5 19 21.5 14 PT 1 / 4 5
PLL 8 - 03 - NI 16.6 37.6 45 19.1 21.5 17 PT 3 / 8 5
PLL 10 - 02 - NI 10 19.6 45.2 54.2 16.7 23.1 26.6 15 PT 1 / 4 8
PLL 10 - 03 - NI 19.6 45.3 54.3 23.2 26.6 17 PT 3 / 8 9.8
PLL 10 - 04 - NI 22 47.6 56.6 23.3 26.6 21 PT 1 / 2 9.8
PLL 12 - 02 - NI 12 19.6 47 57.3 19.6 23.3 27.2 15 PT 1 / 4 8
PLL 12 - 03 - NI 19.6 47.1 57.4 23.3 27.2 17 PT 3 / 8 9.2
PLL 12 - 04 - NI 22 49.4 59.6 23.3 27.2 21 PT 1 / 2 9.2

PV
Union Elbow

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PV 4 4 15.5 8 8 2.6 4.1
PV 6 6 19.3 14 10 4.4 4.7
PV 8 8 23 18.8 13.6 8.4 6.6
PV 10 10 25.6 20.6 16.7 14.2 8.5
PV 12 12 30.3 22.8 19.6 20.2 10.5

PV - NI
Union Elbow

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PV 4 - NI 4 15.1 8 8 3.5 4.1
PV 6 - NI 6 18.9 14 10 5.2 4.7
PV 8 - NI 8 22.6 18.8 13.6 10.7 6.6
PV 10 - NI 10 25.2 20.6 16.7 18 8.5
PV 12 - NI 12 29.9 22.8 19.6 27.6 10.5

PLF - G
Female Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLF 4 - M 5 4 4 13.8 18 8 13.7 15.5 8 M 5 X 0.8 4
PLF 4 - 01 G 9.6 18.6 22.9 13.7 15.5 13 G 1 / 8 4
PLF 4 - 02 G 7 21.1 25.4 13.7 15.5 17 G 1 / 4 4
PLF 6 - M 5 6 4 15 20.6 10 13.8 16.2 8 M 5 X 0.8 4
PLF 6 - 01 G 7 19.9 25.5 13.9 16.5 13 G 1 / 8 4
PLF 6 - 02 G 9.4 22.4 28 14 15.7 17 G 1 / 4 4
PLF 8 - 01 G 8 7 21.4 28.8 13.6 20.2 22.6 13 G 1 / 8 5.4
PLF 8 - 02 G 9.5 23.9 31.3 20 22.5 17 G 1 / 4 5.4
PLF 8 - 03 G 9.3 23.9 31.3 20.1 22.5 21 G 3 / 8 5.4
PLF 10 - 02 G 10 9.6 25.6 34.6 16.7 24.1 27.6 17 G 1 / 4 9.8
PLF 10 - 03 G 9.4 25.6 34.6 24.2 27.6 21 G 3 / 8 9.8
PLF 10 - 04 G 12 29.6 38.6 24.3 27.5 24 G 1 / 2 9.8
PLF 12 - 02 G 12 12 27.4 37.6 19.6 24.7 28.2 17 G 1 / 4 9.2
PLF 12 - 03 G 9.6 27.4 37.6 24.9 28.9 21 G 3 / 8 9.2
PLF 12 - 04 G 9.6 31.4 41.6 25 28.8 24 G 1 / 2 9.2

PLF - G + NI
Female Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLF 4 - M 5 - NI 4 4 13.8 18 8 13.4 15.2 8 M 5 X 0.8 4
PLF 4 - 01 G - NI 9.6 18.6 22.9 13.4 15.2 13 G 1 / 8 4
PLF 4 - 02 G - NI 7 21.1 25.4 13.4 15.2 17 G 1 / 4 4
PLF 6 - M 5 - NI 6 4 15 20.6 10 13.3 15.7 8 M 5 X 0.8 4
PLF 6 - 01 G - NI 7 19.9 25.5 13.4 16 13 G 1 / 8 4
PLF 6 - 02 G - NI 9.4 22.4 28 13.5 15.2 17 G 1 / 4 4
PLF 8 - 01 G - NI 8 7 21.4 28.8 13.6 19.2 21.6 13 G 1 / 8 5.4
PLF 8 - 02 G - NI 9.5 23.9 31.3 19 21.5 17 G 1 / 4 5.4
PLF 8 - 03 G - NI 9.3 23.9 31.3 19.1 21.5 21 G 3 / 8 5.4
PLF 10 - 02 G - NI 10 9.6 25.6 34.6 16.7 23.1 26.6 17 G 1 / 4 9.8
PLF 10 - 03 G - NI 9.4 25.6 34.6 23.2 26.6 21 G 3 / 8 9.8
PLF 10 - 04 G - NI 12 29.6 38.6 23.3 26.6 24 G 1 / 2 9.8
PLF 12 - 02 G - NI 12 12 27.4 37.6 19.6 23.1 26.6 17 G 1 / 4 9.2
PLF 12 - 03 G - NI 9.6 27.4 37.6 23.3 27.3 21 G 3 / 8 9.2
PLF 12 - 04 G - NI 9.6 31.4 41.6 23.4 27.2 24 G 1 / 2 9.2

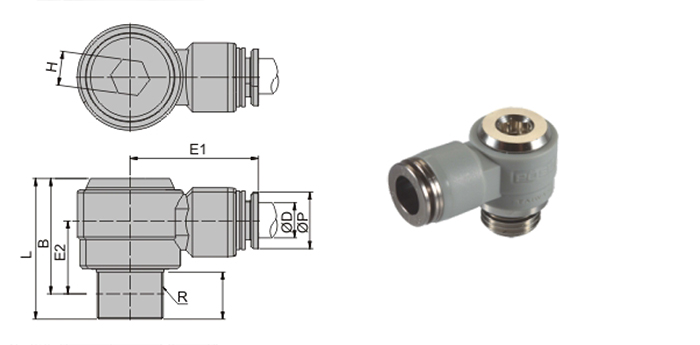

POL
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 4 8 6 PT 1 / 8 18 21 5 20.4 10.6 11.6 3
POL 4 - 02 8.9 PT 1 / 4 20.3 24.8 6 22.4 12.9 20.4 4
POL 6 - 01 6 10 6 PT 1 / 8 18 21 5 20.6 10.6 10.4 3
POL 6 - 02 8.9 PT 1 / 4 20.3 24.8 6 22.6 12.9 19.4 4
POL 6 - 03 8.7 PT 3 / 8 24 30.5 8 24.1 14.8 33.6 5
POL 8 - 01 8 13.6 6 PT 1 / 8 17.9 21 5 25.4 10.6 12.2 3
POL 8 - 02 8.9 PT 1 / 4 20.3 24.8 6 27.4 12.4 21.4 4
POL 8 - 03 10 PT 3 / 8 25.4 30.5 8 29.7 15.2 35.6 5
POL 8 - 04 13.2 PT 1 / 2 31 37.5 10 33.4 17.6 50 7
POL 10 - 02 10 16.7 8.9 PT 1 / 4 20.3 24.8 6 31.6 12.6 24.2 4
POL 10 - 03 10.2 PT 3 / 8 25.3 30.5 8 32 15.1 38.2 5
POL 10 - 04 13.2 PT 1 / 2 30.9 37.5 10 33.4 17.6 57 7
POL 12 - 03 12 19.6 10.1 PT 3 / 8 25.4 30.5 8 34 14.8 59.8 5
POL 12 - 04 12.9 PT 1 / 2 31 37.5 10 36.5 18.3 62.6 7

POL - NI
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 - NI 4 8 6 PT 1 / 8 18 21 5 20.1 10.6 12 3
POL 4 - 02 - NI 8.9 PT 1 / 4 20.3 24.8 6 22.1 12.9 21 4
POL 6 - 01 - NI 6 10 6 PT 1 / 8 18 21 5 20.2 10.6 11.2 3
POL 6 - 02 - NI 8.9 PT 1 / 4 20.3 24.8 6 22.2 12.9 20.2 4
POL 6 - 03 - NI 8.7 PT 3 / 8 24 30.5 8 24 14.8 34.4 5
POL 8 - 01 - NI 8 13.6 6 PT 1 / 8 17.9 21 5 24.4 10.6 14.5 3
POL 8 - 02 - NI 8.9 PT 1 / 4 20.3 24.8 6 26.4 12.4 23.7 4
POL 8 - 03 - NI 10 PT 3 / 8 25.4 30.5 8 28.7 15.2 37.9 5
POL 8 - 04 - NI 13.2 PT 1 / 2 31 37.5 10 33.4 17.6 50 7
POL 10 - 02 - NI 10 16.7 8.9 PT 1 / 4 20.3 24.8 6 30.6 12.6 28 4
POL 10 - 03 - NI 10.2 PT 3 / 8 25.3 30.5 8 31 15.1 42 5
POL 10 - 04 - NI 13.2 PT 1 / 2 30.9 37.5 10 32.5 17.6 60.8 7
POL 12 - 03 - NI 12 19.6 10.1 PT 3 / 8 25.4 30.5 8 33.1 14.8 67.2 5
POL 12 - 04 - NI 12.9 PT 1 / 2 31 37.5 10 35.5 18.3 70 7

POL - G
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 G 4 8 5 G 1 / 8 19.4 21.9 5 20.4 12 11.6 3
POL 4 - 02 G 7.1 G 1 / 4 21.4 25 6 22.4 14 20 4
POL 6 - 01 G 6 10 7 G 1 / 8 18.5 21.9 5 20.6 11 10.6 3
POL 6 - 02 G 9.1 G 1 / 4 20.4 25 6 22.6 13 19.2 4
POL 6 - 03 G 10 G 3 / 8 25.4 30.5 8 23.4 13.2 32.4 5
POL 8 - 01 G 8 13.6 7 G 1 / 8 18.4 21.9 5 25.4 11.1 12.4 3
POL 8 - 02 G 9.1 G 1 / 4 20.4 25 6 27.4 12.5 21.2 4
POL 8 - 03 G 10 G 3 / 8 25.4 30.5 8 29.7 15.2 34.3 5
POL 8 - 04 G 13.2 G 1 / 2 31 37.5 10 33.4 17.6 50 7
POL 10 - 02 G 10 16.7 9.1 G 1 / 4 20.4 25 6 31.6 12.7 24 4
POL 10 - 03 G 10.2 G 3 / 8 25.3 30.5 8 32 15.1 37 5
POL 10 - 04 G 11.2 G 1 / 2 29.9 35.5 10 33.4 16.6 54.4 7
POL 12 - 03 G 12 19.6 10.1 G 3 / 8 25.4 30.5 8 34 14.8 58.6 5
POL 12 - 04 G 10.9 G 1 / 2 30 35.5 10 36.5 17.3 60 7

POL - G + NI
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 G - NI 4 8 5 G 1 / 8 19.4 21.9 5 20.1 12 12.2 3
POL 4 - 02 G - NI 7.1 G 1 / 4 21.4 25 6 22.1 14 20.6 4
POL 6 - 01 G - NI 6 10 7 G 1 / 8 18.5 21.9 5 20.2 11 11.4 3
POL 6 - 02 G - NI 9.1 G 1 / 4 20.4 25 6 22.2 13 20 4
POL 6 - 03 G - NI 10 G 3 / 8 25.4 30.5 8 23.1 13.2 33.2 5
POL 8 - 01 G - NI 8 13.6 7 G 1 / 8 18.4 21.9 5 24.4 11.1 14.7 3
POL 8 - 02 G - NI 9.1 G 1 / 4 20.4 25 6 26.4 12.5 23.5 4
POL 8 - 03 G - NI 10 G 3 / 8 25.4 30.5 8 28.7 15.2 36.7 5
POL 8 - 04 G - NI 13.2 G 1 / 2 31 37.5 10 33.4 17.6 50 7
POL 10 - 02 G - NI 10 16.7 9.1 G 1 / 4 20.4 25 6 30.6 12.7 27.6 4
POL 10 - 03 G - NI 10.2 G 3 / 8 25.3 30.5 8 31 15.1 40.8 5
POL 10 - 04 G - NI 11.2 G 1 / 2 29.9 35.5 10 32.5 16.6 58.2 7
POL 12 - 03 G - NI 12 19.6 10.1 G 3 / 8 25.4 30.5 8 33.1 14.8 66 5
POL 12 - 04 G - NI 10.9 G 1 / 2 30 35.5 10 35.5 17.3 67.4 7

PE
Union Tee

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PE 4 4 15.4 12.5 8 3.8 4.1
PE 6 6 16.3 13.1 10 6.4 6.1
PE 8 8 23 18.8 13.6 12.4 8.2
PE 10 10 26.2 19.6 16.7 20.8 10.3
PE 12 12 30.1 22.5 19.6 29 12.2

PE - NI
Union Tee

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PE 4 - NI 4 14 13.8 8 4.7 4.1
PE 6 - NI 6 17.7 14.4 10 7.2 6.1
PE 8 - NI 8 21.6 20.1 13.6 14.7 8.2
PE 10 - NI 10 24.8 20.9 16.7 24.6 10.3
PE 12 - NI 12 28.7 23.8 19.6 36.4 12.2
PE 16 - NI 16 33.9 22 23 44.5 14

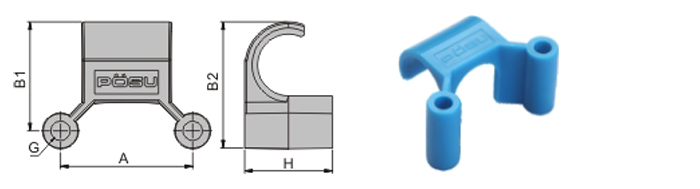

EB
T Bracket

Unit : m / m

Model A B 1 B 2 G H
EB 4 15.5 12 15 3 8.4
EB 6 18 14.5 17.5 3 10.4
EB 8 22 18.2 21.2 3 14.6
EB 10 26 21.4 25 3 17.6
EB 12 28.5 23.9 27.4 3 20.3

PE + EB
Union Tee + Bracket

Unit : m / m

Model Tube dia. ØD ØP C E B 1 B 2 G H
PE 4 - EB 4 4 8 13.2 15.9 15.5 7.7 3 9.2
PE 6 - EB 6 6 10 13.9 17.7 18 9 3 10.4
PE 8 - EB 8 8 13.6 18.8 23.5 22 11 3 14.7
PE 10 - EB 10 10 16.7 20.7 26.8 26 12.9 3 18.2
PE 12 - EB 12 12 19.6 23.5 31.4 28.5 14.2 3 21.5

PEG
Different Diam. Union Tee

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 E C ØP 1 ØP 2 Orifice
PEG 6 - 4 4 6 15.4 12.5 8 10 3
PEG 8 - 6 6 8 16.3 13.1 10 13.6 4.5
PEG 10 - 8 8 10 23 18.8 13.6 16.7 6
PEG 12 - 10 10 12 26.2 19.6 16.7 19.6 8.5

PEG - NI
Different Diam. Union Tee

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 E C ØP 1 ØP 2 Orifice
PEG 6 - 4 - NI 4 6 15.1 12.2 8 10 3
PEG 8 - 6 - NI 6 8 24.9 12.6 10 13.6 4.5
PEG 10 - 8 - NI 8 10 23.9 17.8 13.6 16.7 6
PEG 12 - 10 - NI 10 12 24.6 18.6 16.7 19.6 8.5

PY
Union Y

Unit : m / m

Model Tube dia. ØD C J B ØP Mass (g) Orifice
PY 4 4 18.2 9 31.5 8 8 4
PY 6 6 21.9 12 36.2 10 10 7
PY 8 8 27 15.5 46.8 13.6 13.6 13.8
PY 10 10 32.6 19 52.9 16.7 16.7 22.4
PY 12 12 38.4 21 61 19.6 19.6 31.6

PY - NI
Union Y

Unit : m / m

Model Tube dia. ØD C J B ØP Mass (g) Orifice
PY 4 - NI 4 17.8 9 30.7 8 8 4.9
PY 6 - NI 6 21.5 12 35.4 10 10 7.8
PY 8 - NI 8 26.6 15.5 46 13.6 13.6 16.1
PY 10 - NI 10 32.2 19 52.1 16.7 16.7 26.2
PY 12 - NI 12 38 21 60.2 19.6 19.6 39
PY 16 - NI 16 38 24.8 60.2 23 47.5 16.2

YB
Y Bracket

Unit : m / m

Model A B 1 B 2 G H
YB 4 16 9.8 12.9 3 8.4
YB 6 19 10.2 13.2 3 11
YB 8 22 14.1 17.2 3 14.5
YB 10 26 16.3 20 3 17.6
YB 12 29 19.3 22.8 3 20.2

PT + YB
Union Y + Bracket

Unit : m / m

Model Tube dia. ØD ØP E 1 E 2 H 1 H 2 B J C G
PY 4 + YB 4 4 8 16 8.4 22.5 9.3 31.8 9.6 13.2 3
PY 6 + YB 6 6 10 19 11 24 11.2 35.2 12.3 13.9 3
PY 8 + YB 8 8 13.6 22 14.5 32.7 14.4 47.1 16 18.8 3
PY 10 + YB 10 10 16.7 26 17.6 37.2 16.3 53.5 19.3 20.7 3
PY 12 + YB 12 12 19.6 29 20.2 43.2 19.7 62.9 22.1 23.6 3

PW
Different Diam. Union Y

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C J B ØP 1 ØP 2 Orifice
PW 6 - 4 4 6 13.9 12.3 35.1 8 10 3
PW 8 - 6 6 8 18 16 46.6 10 13.6 4.5
PW 10 - 8 8 10 20.7 19.3 53.1 13.6 16.7 6
PW 12 - 10 10 12 23.5 22.1 62.2 16.7 19.6 8.5

PW - NI
Different Diam. Union Y

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C J B ØP 1 ØP 2 Orifice
PW 6 - 4 - NI 4 6 13.4 12.3 34.3 8 10 3
PW 8 - 6 - NI 6 8 17 16 45.2 10 13.6 4.5
PW 10 - 8 - NI 8 10 19.7 19.3 51.2 13.6 16.7 6
PW 12 - 10 - NI 10 12 21.9 22.1 59.7 16.7 19.6 8.5

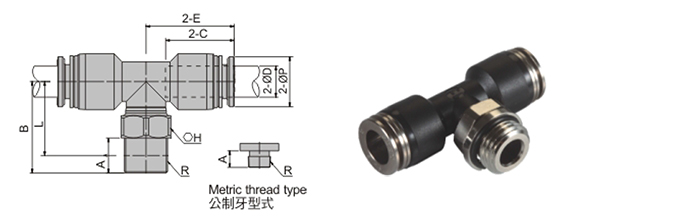

PB
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 4 - M 3 4 15.8 14.2 8 3 M 3 X 0.5 8 15.2 13.7 3.2 1.1
PB 4 - M 5 4.8 M 5 X 0.8 8 15.7 13.6 4.8 2
PB 4 - M 6 4 M 6 X 1.0 10 16.2 14.2 4.4 2.5
PB 4 - 01 7 PT 1 / 8 10 17.4 13.1 7.6 4.2
PB 4 - 02 9.6 PT 1 / 4 14 20 15 16.4 4.2
PB 4 - 03 9.6 PT 3 / 8 17 20 15 19.5 4.2
PB 6 - M 5 6 17.7 13.8 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 7 PT 1 / 8 10 18.3 14.6 9.6 4
PB 6 - 02 9.6 PT 1 / 4 14 21.6 17 18.4 4
PB 6 - 03 9.6 PT 3 / 8 17 21.7 17 21.6 4
PB 8 - 01 8 23.2 14.7 13.6 7 PT 1 / 8 10 21.5 18 13.6 5.4
PB 8 - 02 7 PT 1 / 4 10 21.8 18.6 19.8 5.4
PB 8 - 03 9.6 PT 3 / 8 14 22.3 17.2 24.6 5.4
PB 8 - 04 9.6 PT 1 / 2 17 22.7 18.1 38 5.4
PB 10 - 01 10 26.8 16 16.7 9.6 PT 1 / 8 15 22.9 20.7 23.8 5
PB 10 - 02 9.6 PT 1 / 4 15 24.7 19.2 25.4 5
PB 10 - 03 9.6 PT 3 / 8 17 24.7 19.3 30.4 5
PB 10 - 04 9.6 PT 1 / 2 21 27 19.6 42 5
PB 12 - 02 12 29.9 19.5 19.6 9.6 PT 1 / 4 15 27.4 21.3 34 8
PB 12 - 03 9.6 PT 3 / 8 17 27.4 21.4 36 8
PB 12 - 04 12 PT 1 / 2 21 29.4 23.1 47.2 8

PB - NI
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 3 - M 3 - NI 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.3 1.1
PB 3 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.8 3.3 2
PB 3 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.2 2
PB 4 - M 3 - NI 4 15.7 14.1 8 3 M 3 X 0.5 8 15.2 14.2 3.2 1.1
PB 4 - M 5 - NI 4.8 M 5 X 0.8 8 15.7 13.6 4.6 2
PB 4 - M 6 - NI 4 M 6 X 1.0 10 16.2 13.7 4.4 2.5
PB 4 - 01 - NI 7 PT 1 / 8 10 17.4 13.1 8.5 4.2
PB 4 - 02 - NI 9.6 PT 1 / 4 14 20 15 17.3 4.2
PB 4 - 03 - NI 9.6 PT 3 / 8 17 20 15 19.5 4.2
PB 6 - M 5 - NI 6 17.5 13.7 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 - NI 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 - NI 7 PT 1 / 8 10 18.3 14.6 10.4 4
PB 6 - 02 - NI 9.6 PT 1 / 4 14 21.6 17 19.2 4
PB 6 - 03 - NI 9.6 PT 3 / 8 17 21.7 17 20.6 4
PB 8 - 01 - NI 8 23.1 14.6 13.6 7 PT 1 / 8 10 21.5 18 13.1 5.4
PB 8 - 02 - NI 7 PT 1 / 4 10 21.8 18.6 15.9 5.4
PB 8 - 03 - NI 9.6 PT 3 / 8 14 22.3 17.2 22.1 5.4
PB 8 - 04 - NI 9.6 PT 1 / 2 17 22.7 18.1 26.9 5.4
PB 10 - 01 - NI 10 26.6 15.7 16.7 9.6 PT 1 / 8 15 22.9 20.7 23.5 5
PB 10 - 02 - NI 9.6 PT 1 / 4 15 24.7 19.2 34.2 5
PB 10 - 03 - NI 9.6 PT 3 / 8 17 24.7 19.3 45.8 5
PB 10 - 04 - NI 9.6 PT 1 / 2 21 27 19.6 45.8 5
PB 12 - 02 - NI 12 29.8 19.3 19.6 9.6 PT 1 / 4 15 27.4 21.3 42 8
PB 12 - 03 - NI 9.6 PT 3 / 8 17 27.4 21.4 43.4 8
PB 12 - 04 - NI 12 PT 1 / 2 21 29.4 23.1 54.6 8

PB - G
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 4 - M 3 4 15.8 14.2 8 3 M 3 X 0.5 8 15.2 13.7 3.2 1.1
PB 4 - M 5 4.8 M 5 X 0.8 8 15.7 13.6 4.8 2
PB 4 - M 6 4 M 6 X 1.0 10 16.2 14.2 4.4 2.5
PB 4 - 01 G 15.9 13.2 7.5 G 1 / 8 10 17.5 13.7 7.6 4.2
PB 4 - 02 G 8.5 G 1 / 4 14 19 14.7 15.2 4.2
PB 4 - 03 G 8.5 G 3 / 8 17 20.4 19.4 18.4 4.2
PB 6 - M 5 6 17.7 13.8 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 G 7.5 G 1 / 8 10 18.8 15 9.6 4
PB 6 - 02 G 8.5 G 1 / 4 14 20.4 18.2 17.2 4
PB 6 - 03 G 8.5 G 3 / 8 17 20.8 17.9 20.4 4
PB 8 - 01 G 8 23.2 14.7 13.6 7.5 G 1 / 8 10 22 18.7 12.4 5.4
PB 8 - 02 G 8.5 G 1 / 4 14 21 18.4 18.6 5.4
PB 8 - 03 G 8.5 G 3 / 8 17 21.8 19.7 21.2 5.4
PB 8 - 04 G 10 G 1 / 2 21 23.6 20 34.4 5.4
PB 10 - 02 G 10 26.2 20.9 16.7 8.5 G 1 / 4 15 23.9 20.5 24.4 5
PB 10 - 03 G 8.5 G 3 / 8 17 23.8 20.4 29 5
PB 10 - 04 G 10 G 1 / 2 21 25.1 20.1 39 5
PB 12 - 03 G 12 29.9 19.45 19.6 8.5 G 3 / 8 17 25.6 22.5 36.4 8
PB 12 - 04 G 10 G 1 / 2 21 27 23 44.2 8

PB - G + NI
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 3 - M 3 - NI 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.3 1.1
PB 3 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.8 3.3 2
PB 3 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.2 2
PB 4 - M 3 - NI 4 15.7 14.1 8 3 M 3 X 0.5 8 15.2 14.2 3.2 1.1
PB 4 - M 5 - NI 4.8 M 5 X 0.8 8 15.7 13.6 4.6 2
PB 4 - M 6 - NI 4 M 6 X 1.0 10 16.2 13.7 4.4 2.5
PB 4 - 01 G - NI 15.6 12.9 7.5 G 1 / 8 10 17.5 13.7 8.5 4.2
PB 4 - 02 G - NI 8.5 G 1 / 4 14 19 14.7 16.1 4.2
PB 4 - 03 G - NI 8.5 G 3 / 8 17 20.4 19.4 17.8 4.2
PB 6 - M 5 - NI 6 17.4 13.7 10 4.8 M 5 X 0.8 8 15.5 17 6.6 2
PB 6 - M 6 - NI 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 G - NI 7.5 G 1 / 8 10 18.8 15 10.4 4
PB 6 - 02 G - NI 8.5 G 1 / 4 14 20.4 18.2 19.5 4
PB 6 - 03 G - NI 8.5 G 3 / 8 17 20.8 17.9 21.2 4
PB 8 - 01 G - NI 8 23.1 14.6 13.6 7.5 G 1 / 8 10 22 18.7 14.7 5.4
PB 8 - 02 G - NI 8.5 G 1 / 4 14 21 18.4 14.7 5.4
PB 8 - 03 G - NI 8.5 G 3 / 8 17 21.8 19.7 20.9 5.4
PB 8 - 04 G - NI 10 G 1 / 2 21 23.6 20 23.5 5.4
PB 10 - 02 G - NI 10 26.1 20.8 16.7 8.5 G 1 / 4 15 23.9 20.5 28.2 5
PB 10 - 03 G - NI 8.5 G 3 / 8 17 23.8 20.4 32.8 5
PB 10 - 04 G - NI 10 G 1 / 2 21 23.6 20 42.8 5
PB 12 - 03 G - NI 12 29.8 19.3 19.6 8.5 G 3 / 8 17 25.6 22.5 43.8 8
PB 12 - 04 G - NI 10 G 1 / 2 21 27 23 51.6 8

PD
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 4 - M 3 4 15.9 13.2 8 4 M 3 X 0.5 8 16.2 14.2 3.2 1.1
PD 4 - M 5 3.3 M 5 X 0.8 8 15.5 13.8 4.8 2
PD 4 - M 6 4 M 6 X 1.0 10 16.2 14.2 4.5 2.5
PD 4 - 01 7 PT 1 / 8 10 17.2 13.7 7.6 4
PD 4 - 02 9.6 PT 1 / 4 14 20.2 15.2 16.6 4
PD 4 - 03 9.6 PT 3 / 8 17 20.2 15.2 19.6 4
PD 6 - M 5 6 18.1 9.8 10 4.8 M 5 X 0.8 8 16.5 15.7 6.6 2
PD 6 - M 6 13.9 4 M 6 X 1.0 10 17.5 15.5 5.5 2.5
PD 6 - 01 14.3 7 PT 1 / 8 10 18.4 14.4 9.6 4
PD 6 - 02 9.6 PT 1 / 4 14 21.7 16.9 18.2 4
PD 6 - 03 9.6 PT 3 / 8 17 21.2 16.8 22 4
PD 8 - 01 8 23.3 15.6 13.6 7 PT 1 / 8 10 21.4 17.5 14 5
PD 8 - 02 9.6 PT 1 / 4 14 22.2 16.5 20 5.4
PD 8 - 03 9.6 PT 3 / 8 17 22.1 17.9 24.8 5.4
PD 8 - 04 7 PT 1 / 2 21 22.2 17.8 38.6 5.4
PD 10 - 01 10 26.6 17.5 16.7 7 PT 1 / 8 15 24.7 19.5 24.4 5
PD 10 - 02 9.6 PT 1 / 4 15 24.5 19.6 25.8 8
PD 10 - 03 20.7 12 PT 3 / 8 17 27.5 21.3 30.8 9.76
PD 10 - 04 12.5 PT 1 / 2 21 27.5 21.1 42 9.76
PD 12 - 02 12 31.4 23.5 19.6 9.6 PT 1 / 4 15 26.5 21.3 31.6 5
PD 12 - 03 9.6 PT 3 / 8 17 26.5 21.5 36.6 6.5
PD 12 - 04 12 PT 1 / 2 21 26.5 21.7 47.8 6.5

PD - NI
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 3 - M 3 - NI 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.6 1.1
PD 3 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.8 3.6 2
PD 3 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.4 2
PD 4 - M 3 - NI 4 15.3 12.8 8 4 M 3 X 0.5 8 16.2 14.2 4.1 1.1
PD 4 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.7 5.7 2
PD 4 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.4 2.5
PD 4 - 01 - NI 7 PT 1 / 8 10 17.2 13.7 8.5 4
PD 4 - 02 - NI 9.6 PT 1 / 4 14 20.2 15.2 17.5 4
PD 4 - 03 - NI 9.6 PT 3 / 8 17 20.2 15.2 20.5 4
PD 6 - M 5 - NI 6 17.6 9.36 10 4.8 M 5 X 0.8 8 16.5 15.7 7.4 2
PD 6 - M 6 - NI 13.5 4 M 6 X 1.0 10 17.5 15.5 6.3 2.5
PD 6 - 01 - NI 13.9 7 PT 1 / 8 10 18.4 14.4 10.4 4
PD 6 - 02 - NI 9.6 PT 1 / 4 14 21.7 16.9 19 4
PD 6 - 03 - NI 9.6 PT 3 / 8 17 21.2 16.8 22.8 4
PD 8 - 01 - NI 8 22.8 15.2 13.6 7 PT 1 / 8 10 21.4 17.5 16.3 5
PD 8 - 02 - NI 9.6 PT 1 / 4 14 22.2 16.5 22.3 5.4
PD 8 - 03 - NI 9.6 PT 3 / 8 17 22.1 17.9 27.1 5.4
PD 8 - 04 - NI 26.1 17.1 7 PT 1 / 2 21 22.2 17.8 40.9 5.4
PD 10 - 01 - NI 10 26.1 17.1 16.7 7 PT 1 / 8 15 24.7 19.5 28.2 5
PD 10 - 02 - NI 20.3 9.6 PT 1 / 4 15 24.5 19.6 29.6 8
PD 10 - 03 - NI 12 PT 3 / 8 17 27.5 21.3 34.6 9.76
PD 10 - 04 - NI 12.5 PT 1 / 2 21 27.5 21.1 45.8 9.76
PD 12 - 02 - NI 12 29.9 22 19.6 9.6 PT 1 / 4 15 26.5 21.3 39 5
PD 12 - 03 - NI 9.6 PT 3 / 8 17 26.5 21.5 44 6.5
PD 12 - 04 - NI 12 PT 1 / 2 21 26.5 21.7 55.2 6.5

PD - G
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 4 - M 3 4 15.7 12.7 8 4 M 3 X 0.5 8 16.2 14.2 3.2 1.1
PD 4 - M 5 3.3 M 5 X 0.8 8 15.5 13.8 4.8 2
PD 4 - M 6 4 M 6 X 1.0 10 16.2 14.2 4.5 2.5
PD 4 - 01 G 4 G 1 / 8 10 17.7 15.7 7.6 4
PD 4 - 02 G 5 G 1 / 4 14 19.1 16.4 15.4 4
PD 4 - 03 G 5 G 3 / 8 17 19.1 16.4 18.4 4
PD 6 - M 5 6 18.1 9.76 10 4.8 M 5 X 0.8 8 16.5 15.7 6.6 2
PD 6 - M 6 13.9 4 M 6 X 1.0 10 17.5 15.5 5.5 2.5
PD 6 - 01 G 14.3 4 G 1 / 8 10 18.9 16.4 9.6 4
PD 6 - 02 G 5 G 1 / 4 14 20.5 18.1 17 4
PD 6 - 03 G 5 G 3 / 8 17 20.1 18 20.8 4
PD 8 - 01 G 8 23.3 15.6 13.6 4 G 1 / 8 10 21.9 19.5 18.6 5
PD 8 - 02 G 5 G 1 / 4 14 21.1 17.7 18.8 5.4
PD 8 - 03 G 5 G 3 / 8 17 21 19.1 23.6 5.4
PD 8 - 04 G 10 G 1 / 2 21 23.5 18.5 35.2 5.4
PD 10 - 02 G 10 26.8 17.5 16.7 5 G 1 / 4 14 23.4 18.1 25 8
PD 10 - 03 G 7.2 G 3 / 8 17 25.5 21.6 31.2 9.76
PD 10 - 04 G 20.7 10 G 1 / 2 21 25.1 20.1 39 9.76
PD 12 - 02 G 12 31.4 23.5 19.6 10 G 1 / 4 14 26.9 21.9 30.8 5
PD 12 - 03 G 8.5 G 3 / 8 17 25.5 21.3 35.2 6.5
PD 12 - 04 G 10 G 1 / 2 21 26.9 21.9 44.8 6.5

PD - G + NI
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 3 - M 3 - NI 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.6 1.1
PD 3 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.8 3.6 2
PD 3 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.4 2
PD 4 - M 3 - NI 4 15.3 12.3 8 4 M 3 X 0.5 8 16.2 14.2 4.1 1.1
PD 4 - M 5 - NI 3.3 M 5 X 0.8 8 15.5 13.7 5.7 2
PD 4 - M 6 - NI 4 M 6 X 1.0 10 16.2 14.2 5.4 2.5
PD 4 - 01 G - NI 4 G 1 / 8 10 17.7 15.7 8.5 4
PD 4 - 02 G - NI 5 G 1 / 4 14 19.1 16.4 16.3 4
PD 4 - 03 G - NI 4 G 3 / 8 17 19.1 16.4 20.1 4
PD 6 - M 5 G - NI 6 17.7 9.36 10 4.8 M 5 X 0.8 8 16.5 15.7 7.4 2
PD 6 - M 6 G - NI 13.5 4 M 6 X 1.0 10 17.5 15.5 6.3 2.5
PD 6 - 01 G - NI 13.9 4 G 1 / 8 10 18.9 16.4 10.4 4
PD 6 - 02 G - NI 5 G 1 / 4 14 20.5 18.1 17.8 4
PD 6 - 03 G - NI 5 G 3 / 8 17 20.1 18 21.6 4
PD 8 - 01 G - NI 8 22.6 15.2 13.6 4 G 1 / 8 10 21.9 19.5 20.9 5
PD 8 - 02 G - NI 5 G 1 / 4 14 21.1 17.7 21.1 5.4
PD 8 - 03 G - NI 5 G 3 / 8 17 21 19.1 25.9 5.4
PD 8 - 04 G - NI 17.8 10 G 1 / 2 21 23.5 18.5 37.5 5.4
PD 10 - 02 G - NI 10 26.2 17.5 16.7 5 G 1 / 4 17 23.4 18.1 28.8 8
PD 10 - 03 G - NI 7.2 G 3 / 8 21 25.5 21.6 35 9.76
PD 10 - 04 G - NI 19.8 10 G 1 / 2 21 25.1 20.1 42.8 9.76
PD 12 - 02 G - NI 12 29.9 22 19.6 10 G 1 / 4 14 26.9 21.9 38.2 5
PD 12 - 03 G - NI 8.5 G 3 / 8 17 25.5 21.3 42.6 6.5
PD 12 - 04 G - NI 10 G 1 / 2 21 26.9 21.9 52.2 6.5

PX
Branch Y

Unit : m / m

Model Tube dia. ØD ØP A R H B J Orifice
PX 4 - M 5 4 8 3.5 M 5 X 0.8 10 38.2 9.6 2
PX 4 - 01 7 PT 1 / 8 10 39.9 2
PX 4 - 02 9.6 PT 1 / 4 14 43 2
PX 6 - M 5 6 10 3.5 M 5 X 0.8 12 41.2 12.3 2
PX 6 - 01 7 PT 1 / 8 12 43.4 4.5
PX 6 - 02 9.6 PT 1 / 4 14 46 4.5
PX 6 - 03 9.6 PT 3 / 8 17 46 4.5
PX 8 - 01 8 13.6 7 PT 1 / 8 15 54.8 16 5
PX 8 - 02 9.6 PT 1 / 4 15 57.4 6.2
PX 8 - 03 9.6 PT 3 / 8 17 56.4 6.2
PX 10 - 02 10 16.7 9.6 PT 1 / 4 19 62.9 19.3 8
PX 10 - 03 9.6 PT 3 / 8 19 62.9 8
PX 10 - 04 12 PT 1 / 2 21 65.3 8
PX 12 - 02 12 19.6 9.6 PT 1 / 4 21 73 22.1 8
PX 12 - 03 9.6 PT 3 / 8 21 73 10
PX 12 - 04 12 PT 1 / 2 21 74.5 10

PX - NI
Branch Y

Unit : m / m

Model Tube dia. ØD ØP A R H B J Orifice
PX 4 - M 5 - NI 4 8 3.5 M 5 X 0.8 10 37.9 9.6 2
PX 4 - 01 - NI 7 PT 1 / 8 10 39.6 2
PX 4 - 02 - NI 9.6 PT 1 / 4 14 42.7 2
PX 6 - M 5 - NI 6 10 3.5 M 5 X 0.8 12 40.7 12.3 2
PX 6 - 01 - NI 7 PT 1 / 8 12 42.9 4.5
PX 6 - 02 - NI 9.6 PT 1 / 4 14 45.5 4.5
PX 6 - 03 - NI 9.6 PT 3 / 8 17 45.5 4.5
PX 8 - 01 - NI 8 13.6 7 PT 1 / 8 15 53.8 16 5
PX 8 - 02 - NI 9.6 PT 1 / 4 15 56.4 6.2
PX 8 - 03 - NI 9.6 PT 3 / 8 17 55.4 6.2
PX 10 - 02 - NI 10 16.7 9.6 PT 1 / 4 19 61.9 19.3 8
PX 10 - 03 - NI 9.6 PT 3 / 8 19 61.9 8
PX 10 - 04 - NI 12 PT 1 / 2 21 64.3 8
PX 12 - 02 - NI 12 19.6 9.6 PT 1 / 4 21 71.4 22.1 8
PX 12 - 03 - NI 9.6 PT 3 / 8 21 71.4 10
PX 12 - 04 - NI 12 PT 1 / 2 21 72.9 10

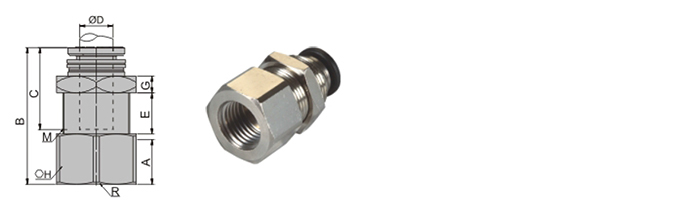

PM
Bulkhead Union

Unit : m / m

Model Tube dia. ØD M A B ØP C E H G Mass (g) Orifice
PM 4 4 M 10 X 1.0 8.2 26.9 8 12.4 2.4 10 4 8.8 3
PM 6 6 M 12 X 1.0 9.3 30.3 10 14.6 5.4 14 4 9.4 4.8
PM 8 8 M 16 X 1.0 10.4 39.9 13.6 18.7 9 19 4 18.6 6.8
PM 10 10 M 20 X 1.0 11.8 43.8 16.7 20.6 12 24 5 36.6 8.5
PM 12 12 M 22 X 1.0 12.1 48.9 19.6 23.5 15.9 27 5 48.8 10.5

PM - NI
Bulkhead Union

Unit : m / m

Model Tube dia. ØD M A B ØP C E H G Mass (g) Orifice
PM 4 - NI 4 M 10 X 1.0 7 24.6 8 11.2 2.4 10 4 9.7 3
PM 6 - NI 6 M 12 X 1.0 8.1 28 10 13.4 5.4 14 4 10.2 4.8
PM 8 - NI 8 M 16 X 1.0 9.3 37.6 13.6 17.5 9 19 4 20.9 6.8
PM 10 - NI 10 M 20 X 1.0 10.6 41.5 16.7 19.6 12 24 5 40.4 8.5
PM 12 - NI 12 M 22 X 1.0 10.9 46.6 19.6 22.3 15.9 27 5 56.2 10.5

PMF - G
Bulkhead Female Straight

Unit : m / m

Model Tube dia. ØD A E G B C M H R Mass (g) Orifice
PMF 4 - 01 G 4 8 5.9 4 25.2 12.4 M 12 X 1.0 14 G 1 / 8 18.8 3
PMF 6 - 01 G 6 9 7.8 4 28.8 14.3 M 14 X 1.0 17 G 1 / 8 29.5 4.8
PMF 6 - 02 G 10 7.8 29.8 G 1 / 4 29
PMF 8 - 01 G 8 9 9.8 4 31.6 18.3 M 16 X 1.0 17 G 1 / 8 30.8 6.8
PMF 8 - 02 G 10 9.8 32.6 19 G 1 / 4 38.2
PMF 8 - 03 G 11 9.8 33.6 21 G 3 / 8 51.2
PMF 10 - 02 G 10 10 11.8 5 36 20.9 M 20 X 1.0 21 G 1 / 4 59 8.5
PMF 10 - 03 G 10 11.8 36 24 G 3 / 8 68
PMF 12 - 03 G 12 10 13.8 5 38.7 24.3 M 22 X 1.0 24 G 3 / 8 73.1 10.5
PMF 12 - 04 G 14 13.8 42.7 G 1 / 2 71.8

PHW
Double Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHW 4 - 01 4 PT 1 / 8 8 43 39 16 8 15 14 22.5 14 14 38.4 3
PHW 4 - 02 PT 1 / 4 10 46 40 17 57.8 3
PHW 4 - 03 PT 3 / 8 12 48 41.5 18.5 17 62.2 3
PHW 6 - 01 6 PT 1 / 8 8 43 39 16 10 17 14 24.5 14 14 35.8 4.6
PHW 6 - 02 PT 1 / 4 10 46 40 17 57.4 4.6
PHW 6 - 03 PT 3 / 8 12 48 41.5 18.5 17 77.6 4.6
PHW 8 - 01 8 PT 1 / 8 8 46 42 17.5 13.6 18.5 15 28.5 17 17 39.8 5.1
PHW 8 - 02 PT 1 / 4 10 49 43 18.5 63.4 5.1
PHW 8 - 03 PT 3 / 8 12 50 43.5 19 67.4 5.1
PHW 8 - 04 PT 1 / 2 15 55 47 22.5 22 102.4 5.1
PHW 10 - 02 10 PT 1 / 4 10 57.5 51.5 22 16.7 20.5 18 33 22 22 73.6 6.5
PHW 10 - 03 PT 3 / 8 12 58.5 52 22.5 86.8 6.5
PHW 10 - 04 PT 1 / 2 15 61.5 53.5 24 107.8 6.5
PHW 12 - 03 12 PT 3 / 8 12 68 61.5 27 19.6 23.5 21 38.5 27 27 132.4 7.7
PHW 12 - 04 PT 1 / 2 15 71 63 28.5 156.2 7.7

PHT
Triple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHT 4 - 01 4 PT 1 / 8 8 57 53 16 8 15 14 22.5 14 14 48.8 3
PHT 4 - 02 PT 1 / 4 11 60 54 17 73.4 3
PHT 4 - 03 PT 3 / 8 12 62 55.5 18.5 17 74.6 3
PHT 6 - 01 6 PT 1 / 8 8 57 53 16 10 17 14 24.5 14 14 45 4.6
PHT 6 - 02 PT 1 / 4 11 60 54 17 74.8 4.6
PHT 6 - 03 PT 3 / 8 12 62 55.5 18.5 17 103.4 4.6
PHT 8 - 01 8 PT 1 / 8 8 61 57 17.5 13.6 18.5 15 28.5 17 17 51 5.1
PHT 8 - 02 PT 1 / 4 11 64 58 18.5 81.4 5.1
PHT 8 - 03 PT 3 / 8 12 65 58.5 19 85.4 5.1
PHT 8 - 04 PT 1 / 2 15 70 62 22.5 22 126.8 5.1
PHT 10 - 02 10 PT 1 / 4 11 75.5 69.5 22 16.7 20.5 18 33 22 22 101.4 6.5
PHT 10 - 03 PT 3 / 8 12 76.5 70 22.5 117.2 6.5
PHT 10 - 04 PT 1 / 2 15 79.5 71.5 24 138.4 6.5
PHT 12 - 03 12 PT 3 / 8 12 89 82.5 27 19.6 23.5 21 38.5 27 27 132.8 7.7
PHT 12 - 04 PT 1 / 2 15 92 84 28.5 209 7.7

PHU
Quardruple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHU 4 - 01 4 PT 1 / 8 7 78.6 75.1 16 8 15 14 22.5 14 14 59.2 3
PHU 4 - 02 PT 1 / 4 9.6 84 79.2 17 90.8 3
PHU 4 - 03 PT 3 / 8 9.6 102.1 97.3 18.5 17 92 3
PHU 6 - 01 6 PT 1 / 8 7 78.6 75.1 16 10 17 14 24.5 14 14 54.2 4.6
PHU 6 - 02 PT 1 / 4 9.6 84 79.2 17 92.2 4.6
PHU 6 - 03 PT 3 / 8 9.6 102.1 97.3 18.5 17 129.2 4.6
PHU 8 - 01 8 PT 1 / 8 7 78.3 74.8 17.5 13.6 18.5 17 28.5 17 17 62.2 5.1
PHU 8 - 02 PT 1 / 4 9.6 84 79.2 18.5 99.4 5.1
PHU 8 - 03 PT 3 / 8 9.4 102.4 97.7 19 104.4 5.1
PHU 8 - 04 PT 1 / 2 12 120.7 114.7 22.5 22 154.4 5.1
PHU 10 - 02 10 PT 1 / 4 9.6 94.2 89.4 22 16.7 20.5 22 33 22 22 127.6 6.5
PHU 10 - 03 PT 3 / 8 9.6 102 97.2 22.5 147.6 6.5
PHU 10 - 04 PT 1 / 2 12 120.7 114.7 24 168.8 6.5
PHU 12 - 03 12 PT 3 / 8 9.6 105.5 100.7 27 19.6 23.5 27 38.5 27 27 168.4 7.7
PHU 12 - 04 PT 1 / 2 12 117.5 111.5 28.5 261 7.7

PHR
Quintuple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHR 4 - 01 4 PT 1 / 8 7 93.7 90.2 16 8 15 14 22.5 14 14 69.6 3
PHR 4 - 02 PT 1 / 4 9.6 100 95.2 17 108.2 3
PHR 4 - 03 PT 3 / 8 9.6 122.4 117.6 18.5 17 109.4 3
PHR 6 - 01 6 PT 1 / 8 7 93.7 90.2 16 10 17 14 24.5 14 14 63.4 4.6
PHR 6 - 02 PT 1 / 4 9.6 100 95.2 17 109.6 4.6
PHR 6 - 03 PT 3 / 8 9.6 122.4 117.6 18.5 17 155 4.6
PHR 8 - 01 8 PT 1 / 8 7 93.3 89.8 17.5 13.6 18.5 17 28.5 17 17 73.4 5.1
PHR 8 - 02 PT 1 / 4 9.6 100 95.2 18.5 117.4 5.1
PHR 8 - 03 PT 3 / 8 9.4 122.8 118.1 19 123.4 5.1
PHR 8 - 04 PT 1 / 2 12 145 139 22.5 22 182 5.1
PHR 10 - 02 10 PT 1 / 4 9.6 112.6 107.8 22 16.7 20.5 22 33 22 22 153.8 6.5
PHR 10 - 03 PT 3 / 8 9.6 122.2 117.4 22.5 178 6.5
PHR 10 - 04 PT 1 / 2 12 145 139 24 199.2 6.5
PHR 12 - 03 12 PT 3 / 8 9.6 126.6 121.8 27 19.6 23.5 27 38.5 27 27 204 7.7
PHR 12 - 04 PT 1 / 2 12 142 136 28.5 313 7.7

Tube Fitting ( Ivory )

PC
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 - W 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 3.2 3
PC 4 - M 6 - W 3.9 M 6 X 1.0 10 12.5 18.1 3 4.6 3
PC 4 - 01 - W 7 PT 1 / 8 10 12.8 16.3 3 5.6 3
PC 4 - 02 - W 9.6 PT 1 / 4 14 12.9 17.7 3 12.8 3
PC 6 - M 5 - W 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 4.6 2
PC 6 - M 6 - W 3.7 M 6 X 1.0 10 14.3 18.5 3 4.8 3
PC 6 - 01 - W 7 PT 1 / 8 10 15.8 19.3 4 5.6 4
PC 6 - 02 - W 9.6 PT 1 / 4 14 13.9 18.7 4 11.6 4
PC 6 - 03 - W 9.6 PT 3 / 8 17 14.9 19.7 4 22.8 4
PC 8 - 01 - W 8 13.6 7 PT 1 / 8 14 18.5 24 27.5 5 12 5
PC 8 - 02 - W 9.6 PT 1 / 4 14 20.3 24.2 6 13.2 6
PC 8 - 03 - W 9.6 PT 3 / 8 17 19.4 24.2 6 22.2 6
PC 8 - 04 - W 12 PT 1 / 2 21 19.2 25.2 6 40.4 6
PC 10 - 01 - W 10 16.7 7 PT 1 / 8 17 20.6 26.1 29.6 5 19.4 5
PC 10 - 02 - W 9.6 PT 1 / 4 17 20.3 24.3 29.1 7 20 7
PC 10 - 03 - W 9.6 PT 3 / 8 17 15.7 21 25.8 8 21.2 8
PC 10 - 04 - W 12 PT 1 / 2 21 20.6 19.9 25.9 8 37 8
PC 12 - 02 - W 12 19.6 9.6 PT 1 / 4 21 23.2 30 34.8 – 35 7
PC 12 - 03 - W 9.6 PT 3 / 8 21 27.4 32.2 – 32.4 9
PC 12 - 04 - W 12 PT 1 / 2 21 26.2 32.2 – 40.2 9

PC - NI
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 - NI 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 4.1 3
PC 4 - M 6 - NI 3.9 M 6 X 1.0 10 12.5 18.1 3 5.5 3
PC 4 - 01 - NI 7 PT 1 / 8 10 12.8 16.3 3 7 3
PC 4 - 02 - NI 9.6 PT 1 / 4 14 12.9 17.7 3 13.7 3
PC 6 - M 5 - NI 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 5.4 2
PC 6 - M 6 - NI 3.7 M 6 X 1.0 10 14.3 18.5 3 5.6 3
PC 6 - 01 - NI 7 PT 1 / 8 10 15.8 19.3 4 6.4 4
PC 6 - 02 - NI 9.6 PT 1 / 4 14 13.9 18.7 4 12.4 4
PC 6 - 03 - NI 9.6 PT 3 / 8 17 14.9 19.7 4 23.6 4
PC 8 - 01 - NI 8 13.6 7 PT 1 / 8 14 18.5 24 27.5 5 14.3 5
PC 8 - 02 - NI 9.6 PT 1 / 4 14 20.3 24.2 6 15.5 6
PC 8 - 03 - NI 9.6 PT 3 / 8 17 19.4 24.2 6 24.5 6
PC 8 - 04 - NI 12 PT 1 / 2 21 19.2 25.2 6 42.7 6
PC 10 - 01 - NI 10 16.7 7 PT 1 / 8 17 20.6 26.1 29.6 5 23.2 5
PC 10 - 02 - NI 9.6 PT 1 / 4 17 20.3 24.3 29.1 7 23.8 7
PC 10 - 03 - NI 9.6 PT 3 / 8 17 15.7 21 25.8 8 25 8
PC 10 - 04 - NI 12 PT 1 / 2 21 20.6 19.9 25.9 8 40.8 8
PC 12 - 02 - NI 12 19.6 9.6 PT 1 / 4 21 23.2 30 34.8 – 42 7
PC 12 - 03 - NI 9.6 PT 3 / 8 21 27.4 32.2 – 39.8 9
PC 12 - 04 - NI 12 PT 1 / 2 21 26.2 32.2 – 47.6 9
PC 16 - 03 - NI 16 23 9.6 PT 3 / 8 24 23.6 32.9 35.9 – 54.6 11
PC 16 - 04 - NI 12 PT 1 / 2 24 31.2 37.2 – 60.2 13

PC - G
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 - W 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 3.2 3
PC 4 - M 6 - W 3.9 M 6 X 1.0 10 12.5 18.1 3 4.6 3
PC 4 - 01 G - W 7 G 1 / 8 10 13.1 16.8 3 3.2 3
PC 4 - 02 G - W 9.5 G 1 / 4 14 12.9 17.6 3 13.4 3
PC 6 - M 5 - W 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 4.6 2
PC 6 - M 6 - W 3.7 M 6 X 1.0 10 14.3 18.5 3 4.8 3
PC 6 - 01 G - W 7.5 G 1 / 8 10 16 19.8 4 4.4 4
PC 6 - 02 G - W 8.5 G 1 / 4 14 13.3 17.6 4 6.4 4
PC 6 - 03 G - W 9.6 G 3 / 8 17 14.9 19.7 4 24 4
PC 8 - 01 G - W 8 13.6 7.5 G 1 / 8 14 18.5 24.2 28 5 14 5
PC 8 - 02 G - W 8.5 G 1 / 4 14 18.8 23.1 6 12.8 6
PC 8 - 03 G - W 9.6 G 3 / 8 17 19.4 24.2 6 22.6 6
PC 10 - 02 G - W 10 16.7 9.5 G 1 / 4 17 20.6 24.6 29.3 7 20.4 7
PC 10 - 03 G - W 9.6 G 3 / 8 17 21 25.8 8 21 8
PC 10 - 04 G - W 11 G 1 / 2 21 19.4 24.9 8 36.4 8
PC 12 - 02 G - W 12 19.6 9.5 G 1 / 4 21 23.2 29.9 34.7 – 35.6 7
PC 12 - 03 G - W 11 G 3 / 8 21 25.7 31.2 – 37.8 9
PC 12 - 04 G - W 11 G 1 / 2 21 25.7 31.2 – 49 9

PC - G + NI
Straight

Unit : m / m

Model Tube dia. ØD ØP A R H L C B G Mass (g) Orifice
PC 4 - M 5 - NI 4 8 3.5 M 5 X 0.8 8 12.4 15.9 17.6 3 4.1 3
PC 4 - M 6 - NI 3.9 M 6 X 1.0 10 12.5 18.1 3 5.5 3
PC 4 - 01 G - NI 7 G 1 / 8 10 13.1 16.8 3 4.1 3
PC 4 - 02 G - NI 9.5 G 1 / 4 14 12.9 17.6 3 14.3 3
PC 6 - M 5 - NI 6 10 3.5 M 5 X 0.8 8 14.2 17.6 19.4 2 5.4 2
PC 6 - M 6 - NI 3.7 M 6 X 1.0 10 14.3 18.5 3 5.6 3
PC 6 - 01 G - NI 7.5 G 1 / 8 10 16 19.8 4 5.2 4
PC 6 - 02 G - NI 8.5 G 1 / 4 14 13.3 17.6 4 7.2 4
PC 6 - 03 G - NI 9.6 G 3 / 8 17 14.9 19.7 4 24.8 4
PC 8 - 01 G - NI 8 13.6 7.5 G 1 / 8 14 18.5 24.2 28 5 16.3 5
PC 8 - 02 G - NI 8.5 G 1 / 4 14 18.8 23.1 6 15.2 6
PC 8 - 03 G - NI 9.6 G 3 / 8 17 19.4 24.2 6 24.9 6
PC 10 - 02 G - NI 10 16.7 9.5 G 1 / 4 17 20.6 24.6 29.3 7 24.2 7
PC 10 - 03 G - NI 9.6 G 3 / 8 17 21 25.8 8 24.8 8
PC 10 - 04 G - NI 11 G 1 / 2 21 19.4 24.9 8 40.2 8
PC 12 - 02 G - NI 12 19.6 9.5 G 1 / 4 21 23.2 29.9 34.7 – 43 7
PC 12 - 03 G - NI 11 G 3 / 8 21 25.7 31.2 – 45.2 9
PC 12 - 04 G - NI 11 G 1 / 2 21 25.7 31.2 – 56.4 9

POC
Hex. Holed Straight

Unit : m / m

Model Tube dia. ØD ØP R H E F G Mass (g) Orifice
POC 3 - M 3 - NI 3 8 M 3 X 0.5 13.5 3 1.5 8 3.6 1.5
POC 3 - M 5 - NI M 5 X 0.8 3.5 2 2
POC 4 - M 3 - NI 4 8 M 3 X 0.5 14 3 1.5 8 2.8 1.5

PCF - G
Female Straight

Unit : m / m

Model Tube dia. ØD A R B C H Mass (g) Orifice
PCF 4 - M 5 - W 4 5.5 M 5 19.4 12.4 8 4.8 3
PCF 4 - 01 G - W 8.5 G 1 / 8 22.4 13 10.2 3
PCF 4 - 02 G - W 11 G 1 / 4 24.9 17 18.2 3
PCF 6 - 01 G - W 6 8.5 G 1 / 8 24.2 14.2 13 11.4 4.8
PCF 6 - 02 G - W 11 G 1 / 4 26.7 17 19 4.8
PCF 8 - 01 G - W 8 9 G 1 / 8 29 18.5 14 17.4 6.8
PCF 8 - 02 G - W 11 G 1 / 4 31 17 24.2 6.8
PCF 8 - 03 G - W 11 G 3 / 8 31 21 32.2 6.8
PCF 10 - 02 G - W 10 11 G 1 / 4 33.1 20.6 17 27.8 8.5
PCF 10 - 03 G - W 11 G 3 / 8 33.1 21 37.1 8.5
PCF 10 - 04 G - W 15 G 1 / 2 36.8 20.3 24 45.8 8.5
PCF 12 - 03 G - W 12 11 G 3 / 8 35.7 23.2 21 47 10.5
PCF 12 - 04 G - W 15 G 1 / 2 39.7 24.1 24 55.4 10.5

PCF - G + NI
Female Straight

Unit : m / m

Model Tube dia. ØD A R B C H Mass (g) Orifice
PCF 4 - M 5 - NI 4 5.5 M 5 19.4 12.4 8 5.4 3
PCF 4 - 01 G - NI 8.5 G 1 / 8 22.4 13 10.8 3
PCF 4 - 02 G - NI 11 G 1 / 4 24.9 17 18.8 3
PCF 6 - 01 G - NI 6 8.5 G 1 / 8 24.2 14.2 13 11.8 4.8
PCF 6 - 02 G - NI 11 G 1 / 4 26.7 17 19.4 4.8
PCF 8 - 01 G - NI 8 9 G 1 / 8 29 18.5 14 18.6 6.8
PCF 8 - 02 G - NI 11 G 1 / 4 31 17 25.4 6.8
PCF 8 - 03 G - NI 11 G 3 / 8 31 21 33.4 6.8
PCF 10 - 02 G - NI 10 11 G 1 / 4 33.1 20.6 17 29.8 8.5
PCF 10 - 03 G - NI 11 G 3 / 8 33.1 21 39.6 8.5
PCF 10 - 04 G - NI 15 G 1 / 2 36.8 20.3 24 47.8 8.5
PCF 12 - 03 G - NI 12 11 G 3 / 8 35.7 23.2 21 50.8 10.5
PCF 12 - 04 G - NI 15 G 1 / 2 39.7 24.1 24 59 10.5

PU
Union Straight

Unit : m / m

Model Tube dia. ØD C B ØP Mass (g) Orifice
PU 4 - W 4 13.2 27.8 8 2.6 3.3
PU 6 - W 6 13.8 30.4 10 4.2 4.7
PU 8 - W 8 19 39 13.6 8.2 6.7
PU 10 - W 10 20.4 42.8 16.7 13.6 8.5
PU 12 - W 12 22.6 47 19.6 18.8 10.5

PU - NI
Union Straight

Unit : m / m

Model Tube dia. ØD C B ØP Mass (g) Orifice
PU 4 - NI - W 4 12.8 27 8 3.5 3.3
PU 6 - NI - W 6 13.8 29.6 10 5 4.7
PU 8 - NI - W 8 18.6 38.2 13.6 10.5 6.7
PU 10 - NI - W 10 20 42 16.7 17.4 8.5
PU 12 - NI - W 12 22.2 46.2 19.6 26.2 10.5

PG
Different Diam. Union Straight

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C B ØP 1 ØP 2 Mass (g) Orifice
PG 6 - 4 - W 6 4 13.2 27.8 10 8 2.6 3
PG 8 - 6 - W 8 6 13.8 30.4 13.6 10 4.2 4.5
PG 10 - 8 - W 10 8 19 39 16.7 13.6 8.2 6
PG 12 - 10 - W 12 10 20.4 42.8 19.6 16.7 13.6 8.5

PG - NI
Different Diam. Union Straight

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C B ØP 1 ØP 2 Mass (g) Orifice
PG 6 - 4 - NI - W 6 4 12.8 27 10 8 3.5 3
PG 8 - 6 - NI - W 8 6 13.8 29.6 13.6 10 5 4.5
PG 10 - 8 - NI - W 10 8 18.6 38.2 16.7 13.6 10.5 6
PG 12 - 10 - NI - W 12 10 20 42 19.6 16.7 17.4 8.5

PL
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 4 - M 3 - W 4 3 13.6 17 8 13.7 15.5 15.5 M 3 X 0.5 3 1.1
PL 4 - M 5 - W 4 13.3 17 13.7 15.5 15.5 M 5 X 0.8 3.2 2
PL 4 - M 6 - W 4 16.2 20.5 13.7 15.5 15.5 M 6 X 1.0 4.6 2.5
PL 4 - 01 - W 9.6 20 24 13.7 15.5 15.5 PT 1 / 8 6.4 4
PL 4 - 02 - W 7 17.2 21 13.7 15.5 15.5 PT 1 / 4 15.2 4
PL 6 - M 5 - W 6 4 14.1 19 10 13.8 16.2 16.2 M 5 X 0.8 4 2
PL 6 - M 6 - W 4 15.7 20.6 13.8 16.5 16.5 M 6 X 1.0 5.4 2.5
PL 6 - 01 - W 7 18.3 23 13.9 16.5 16.5 PT 1 / 8 7.4 4
PL 6 - 02 - W 9.4 21.1 26 14 15.7 15.7 PT 1 / 4 16.2 4
PL 6 - 03 - W 9.8 21.2 26 14 16.1 16.1 PT 3 / 8 19.6 4
PL 8 - 01 - W 8 7 21.5 28 13.6 20.2 22.6 22.6 PT 1 / 8 9.8 5.4
PL 8 - 02 - W 9.5 22 28.5 20 22.5 22.5 PT 1 / 4 16 5.4
PL 8 - 03 - W 9.3 22.3 29 20.1 22.5 22.5 PT 3 / 8 20.6 5.4
PL 8 - 04 - W 11.8 25.2 31.5 20.1 22.3 22.3 PT 1 / 2 33.8 5.4
PL 10 - 01 - W 10 6.9 23 31 16.7 24.3 27.7 27.7 PT 1 / 8 17 5
PL 10 - 02 - W 9.6 25.2 33 24.1 27.6 27.6 PT 1 / 4 18.4 5
PL 10 - 03 - W 9.4 24.9 33 24.2 27.6 27.6 PT 3 / 8 23.6 5
PL 10 - 04 - W 12 27 35 24.3 27.5 27.5 PT 1 / 2 34.8 5
PL 12 - 02 - W 12 12 23.2 32.5 19.6 24.7 28.2 28.2 PT 1 / 4 21.4 5
PL 12 - 03 - W 9.6 26.6 35 24.9 28.9 28.9 PT 3 / 8 26.6 8
PL 12 - 04 - W 9.6 26 35 25 28.8 28.8 PT 1 / 2 37.8 8

PL - NI
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 3 - M 3 - NI - W 3 3 15.2 19.5 8 12.7 15 8 M 3 X 0.5 3.8 1.1
PL 3 - M 5 - NI - W 3.2 13.3 17.2 8 14.5 8 M 5 X 0.8 3.8 2
PL 3 - M 6 - NI - W 4 16.2 20.5 12.7 15 10 M 6 X 1.0 5.6 2
PL 4 - M 3 - NI - W 4 3.5 13.6 17 8 13.6 15 8 M 3 X 0.5 3.9 1.1
PL 4 - M 5 - NI - W 4 13.3 17 13.6 15 8 M 5 X 0.8 4.1 2
PL 4 - M 6 - NI - W 4 16.2 20.5 13.6 15 10 M 6 X 1.0 5 2.5
PL 4 - 01 - NI - W 9.6 20 24 13.6 15 10 PT 1 / 8 7.3 4
PL 4 - 02 - NI - W 7 17.2 21 13.6 15 14 PT 1 / 4 16.1 4
PL 6 - M 5 - NI - W 6 4 14.1 19 10 13.7 15.7 8 M 5 X 0.8 4.8 2
PL 6 - M 6 - NI - W 6.8 15.7 20.6 13.7 15.6 10 M 6 X 1.0 6.2 2.5
PL 6 - 01 - NI - W 7 18.3 23 13.7 15.6 10 PT 1 / 8 8.2 4
PL 6 - 02 -NI - W 9.4 21.1 26 13.9 15.2 14 PT 1 / 4 17 4
PL 6 - 03 - NI - W 9.8 21.2 26 13.9 15.6 17 PT 3 / 8 20.4 4
PL 8 - 01 - NI - W 8 7 21.5 28 13.6 20.1 22.1 10 PT 1 / 8 12.1 5.4
PL 8 - 02 - NI - W 9.5 22 28.5 19.9 22 14 PT 1 / 4 18.3 5.4
PL 8 - 03 - NI - W 9.3 22.3 29 20 22 17 PT 3 / 8 22.9 5.4
PL 8 - 04 - NI - W 11.8 25.2 31.5 20 21.8 21 PT 1 / 2 36.1 5.4
PL 10 - 01 - NI - W 10 6.9 23 31 16.7 24.2 27.2 10 PT 1 / 8 20.8 5
PL 10 - 02 - NI - W 9.6 25.2 33 24 27.1 14 PT 1 / 4 22.2 5
PL 10 - 03 - NI - W 9.4 24.9 33 24.1 27.1 17 PT 3 / 8 27.4 5
PL 10 - 04 - NI - W 12 27 35 24.2 27 21 PT 1 / 2 38.6 5
PL 12 - 02 - NI - W 12 12 23.2 32.5 19.6 24.6 27.7 14 PT 1 / 4 28.8 5
PL 12 - 03 - NI - W 9.6 26.6 35 24.8 28.4 17 PT 3 / 8 34 8
PL 12 - 04 - NI - W 9.6 26 35 24.9 28.3 21 PT 1 / 2 45.2 8

PL - G
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 4 - M 3 - W 4 3 13.6 17 8 13.7 15.5 8 M 3 X 0.5 3 1.1
PL 4 - M 5 - W 4 13.3 17 13.7 15.5 8 M 5 X 0.8 3.2 2
PL 4 - M 6 - W 4 16.2 20.5 13.7 15.5 10 M 6 X 1.0 4.6 2.5
PL 4 - 01 - G - W 7.5 17.5 21.8 13.2 15.5 10 G 1 / 8 6.4 4
PL 4 - 02 - G - W 8.5 19 23.3 13.2 15.5 14 G 1 / 4 14 4
PL 4 - 03 - G - W 8.5 19.5 23.3 13.2 15.5 17 G 3 / 8 20 4
PL 6 - M 5 - W 6 4 14.1 19 10 13.8 16.2 8 M 5 X 0.8 4 2
PL 6 - M 6 - W 4 15.7 20.6 13.8 16.5 10 M 6 X 1.0 5.4 2.5
PL 6 - 01 - G - W 7.5 18.8 24.4 13.9 16.5 10 G 1 / 8 7.4 4
PL 6 - 02 - G - W 8.5 20.1 25 13.9 17.2 14 G 1 / 4 6.2 4
PL 6 - 03 - G - W 8.5 20.2 25 13.9 17.2 17 G 3 / 8 18.4 4
PL 8 - 01 - G - W 8 7.5 22.1 29 13.6 15.6 23.3 10 G 1 / 8 9.8 5.4
PL 8 - 02 - G - W 8.5 20.6 29 15.6 23.3 14 G 1 / 4 14.8 5.4
PL 8 - 03 - G - W 8.5 21.3 29 15.6 23.3 17 G 3 / 8 19.4 5.4
PL 8 - 04 - G - W 10 23.3 30 15.6 23.3 21 G 1 / 2 30.4 5.4
PL 10 - 02 - G - W 10 10 25.1 34.1 16.7 21.3 27.9 14 G 1 / 4 17.6 5
PL 10 - 03 - G - W 8.5 23.7 32.7 21.3 27.9 17 G 3 / 8 24 5
PL 10 - 04 - G - W 10 25.1 34.1 21.3 27.9 21 G 1 / 2 31.8 5
PL 12 - 02 - G - W 12 10 29.7 37.1 19.6 23.5 29.7 14 G 1 / 4 20.6 5
PL 12 - 03 - G - W 8.5 25.5 35.7 23.5 29.7 17 G 3 / 8 27 8
PL 12 - 04 - G - W 10 26.9 37.2 23.5 29.7 21 G 1 / 2 34.8 8

PL - G + NI
Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Mass (g) Orifice
PL 3 - M 3 - NI - W 3 3 15.2 19.5 8 12.7 15 8 M 3 X 0.5 3.8 1.1
PL 3 - M 5 - NI - W 3.2 13.3 17.2 8 14.5 8 M 5 X 0.8 3.8 2
PL 3 - M 6 - NI - W 4 16.2 20.5 12.7 15 10 M 6 X 1.0 5.6 2
PL 4 - M 3 - NI - W 4 3.5 13.6 17 8 13.6 15 8 M 3 X 0.5 3.9 1.1
PL 4 - M 5 - NI - W 4 13.3 17 13.6 15 8 M 5 X 0.8 4.1 2
PL 4 - M 6 - NI - W 4 16.2 20.5 13.6 15 10 M 6 X 1.0 5 2.5
PL 4 - 01 - NI - W 7.5 17.5 21.8 12.9 15.2 10 G 1 / 8 7.3 4
PL 4 - 02 G - NI - W 8.5 19 23.3 12.9 15.2 14 G 1 / 4 14.9 4
PL 4 - 03 G - NI - W 8.5 19.5 23.3 12.9 15.2 17 G 3 / 8 20.9 4
PL 6 - M 5 - NI - W 6 4 14.1 19 10 13.7 15.7 8 M 5 X 0.8 4.8 2
PL 6 - M 6 - NI - W 6.8 15.7 20.6 13.7 15.6 10 M 6 X 1.0 6.2 2.5
PL 6 - 01 G - NI - W 7.5 18.8 23 13.8 17.2 10 G 1 / 8 8.2 4
PL 6 - 02 G - NI - W 8.5 20.1 25 13.8 17.2 14 G 1 / 4 7 4
PL 6 - 03 G - NI - W 8.5 20.2 25 13.8 17.2 17 G 3 / 8 19.2 4
PL 8 - 01 G - NI - W 8 7.5 22.1 29 13.6 15.6 23.3 10 G 1 / 8 12.1 5.4
PL 8 - 02 G - NI - W 8.5 20.6 29 15.6 23.3 14 G 1 / 4 17.1 5.4
PL 8 - 03 G - NI - W 8.5 21.3 29 15.6 23.3 17 G 3 / 8 21.7 5.4
PL 8 - 04 G - NI - W 10 23.3 30 15.6 23.3 21 G 1 / 2 32.7 5.4
PL 10 - 02 G - NI - W 10 10 25.1 34.1 16.7 19.8 26.9 14 G 1 / 4 21.4 5
PL 10 - 03 G - NI - W 8.5 23.7 32.7 19.8 26.9 17 G 3 / 8 27.8 5
PL 10 - 04 G- NI - W 10 25.1 34.1 19.8 26.9 21 G 1 / 2 35.6 5
PL 12 - 02 G - NI - W 12 10 29.7 37.1 19.6 22 28.2 14 G 1 / 4 28 5
PL 12 - 03 G - NI - W 8.5 25.5 35.7 22 28.2 17 G 3 / 8 34.4 8
PL 12 - 04 G - NI - W 10 26.9 37.2 22 28.2 21 G 1 / 2 42.2 8

PLL
Long Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLL 4 - M 5 - W 4 3.3 23.2 27.5 8 13.7 15.5 8 M 5 X 0.8 2
PLL 4 - 01 - W 13.5 28.4 32.7 13.7 15.5 10 PT 1 / 8 4
PLL 4 - 02 - W 16.1 31.6 35.9 13.7 15.5 14 PT 1 / 4 4
PLL 6 - M 5 - W 6 3.3 24.5 30.1 10 13.8 16.2 8 M 5 X 0.8 2
PLL 6 - 01 - W 13.5 29.7 35.3 13.9 16.5 10 PT 1 / 8 4
PLL 6 - 02 - W 16.1 32.9 38.5 14 15.7 14 PT 1 / 4 4
PLL 8 - 01 - W 8 14.5 37 44.4 13.6 20.2 22.6 10 PT 1 / 8 5
PLL 8 - 02 - W 18.1 38.1 45.5 20 22.5 14 PT 1 / 4 5
PLL 8 - 03 - W 16.6 37.6 45 20.1 22.5 17 PT 3 / 8 5
PLL 10 - 02 - W 10 19.6 45.2 54.2 16.7 24.1 27.6 15 PT 1 / 4 8
PLL 10 - 03 - W 19.6 45.3 54.3 24.2 27.6 17 PT 3 / 8 9.8
PLL 10 - 04 - W 22 47.6 56.6 24.3 27.5 21 PT 1 / 2 9.8
PLL 12 - 02 - W 12 19.6 47 57.3 19.6 24.8 28.9 15 PT 1 / 4 8
PLL 12 - 03 - W 19.6 47.1 57.4 24.9 28.9 17 PT 3 / 8 9.2
PLL 12 - 04 - W 22 49.4 59.6 25 28.9 21 PT 1 / 2 9.2

PLL + NI
Long Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLL 4 - M 5 - NI - W 4 3.3 23.2 27.5 8 13.4 15.2 8 M 5 X 0.8 2
PLL 4 - 01 - NI - W 13.5 28.4 32.7 13.4 15.2 10 PT 1 / 8 4
PLL 4 - 02 - NI - W 16.1 31.6 35.9 13.4 15.2 14 PT 1 / 4 4
PLL 6 - M 5 - NI - W 6 3.3 24.5 30.1 10 13.3 16 8 M 5 X 0.8 2
PLL 6 - 01 - NI - W 13.5 29.7 35.3 13.4 16 10 PT 1 / 8 4
PLL 6 - 02 - NI - W 16.1 32.9 38.5 13.5 16 14 PT 1 / 4 4
PLL 8 - 01 - NI - W 8 14.5 37 44.4 13.6 19.2 21.5 10 PT 1 / 8 5
PLL 8 - 02 - NI - W 18.1 38.1 45.5 19 21.5 14 PT 1 / 4 5
PLL 8 - 03 - NI - W 16.6 37.6 45 19.1 21.5 17 PT 3 / 8 5
PLL 10 - 02 - NI - W 10 19.6 45.2 54.2 16.7 23.1 26.6 15 PT 1 / 4 8
PLL 10 - 03 - NI - W 19.6 45.3 54.3 23.2 26.6 17 PT 3 / 8 9.8
PLL 10 - 04 - NI - W 22 47.6 56.6 23.3 26.6 21 PT 1 / 2 9.8
PLL 12 - 02 - NI - W 12 19.6 47 57.3 19.6 23.3 27.2 15 PT 1 / 4 8
PLL 12 - 03 - NI - W 19.6 47.1 57.4 23.3 27.2 17 PT 3 / 8 9.2
PLL 12 - 04 - NI - W 22 49.4 59.6 23.3 27.2 21 PT 1 / 2 9.2

PV
Union Elbow

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PV 4 - W 4 15.5 8 8 2.6 4.1
PV 6 - W 6 19.3 14 10 4.4 4.7
PV 8 - W 8 23 18.8 13.6 8.4 6.6
PV 10 - W 10 25.6 20.6 16.7 14.2 8.5
PV 12 - W 12 30.3 22.8 19.6 20.2 10.5

PV - NI
Union Elbow

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PV 4 - NI - W 4 15.1 8 8 3.5 4.1
PV 6 - NI - W 6 18.9 14 10 5.2 4.7
PV 8 - NI - W 8 22.6 18.8 13.6 10.7 6.6
PV 10 - NI - W 10 25.2 20.6 16.7 18 8.5
PV 12 - NI - W 12 29.9 22.8 19.6 27.6 10.5

PLF - G
Female Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLF 4 - M 5 - W 4 4 13.8 18 8 13.7 15.5 8 M 5 X 0.8 4
PLF 4 - 01 G - W 9.6 18.6 22.9 13.7 15.5 13 G 1 / 8 4
PLF 4 - 02 G - W 7 21.1 25.4 13.7 15.5 17 G 1 / 4 4
PLF 6 - M 5 - W 6 4 15 20.6 10 13.8 16.2 8 M 5 X 0.8 4
PLF 6 - 01 G - W 7 19.9 25.5 13.9 16.5 13 G 1 / 8 4
PLF 6 - 02 G - W 9.4 22.4 28 14 15.7 17 G 1 / 4 4
PLF 8 - 01 G - W 8 7 21.4 28.8 13.6 20.2 22.6 13 G 1 / 8 5.4
PLF 8 - 02 G - W 9.5 23.9 31.3 20 22.5 17 G 1 / 4 5.4
PLF 8 - 03 G - W 9.3 23.9 31.3 20.1 22.5 21 G 3 / 8 5.4
PLF 10 - 02 G - W 10 9.6 25.6 34.6 16.7 24.1 27.6 17 G 1 / 4 9.8
PLF 10 - 03 G - W 9.4 25.6 34.6 24.2 27.6 21 G 3 / 8 9.8
PLF 10 - 04 G - W 12 29.6 38.6 24.3 27.5 24 G 1 / 2 9.8
PLF 12 - 02 G - W 12 12 27.4 37.6 19.6 24.7 28.2 17 G 1 / 4 9.2
PLF 12 - 03 G - W 9.6 27.4 37.6 24.9 28.9 21 G 3 / 8 9.2
PLF 12 - 04 G - W 9.6 31.4 41.6 25 28.8 24 G 1 / 2 9.2

PLF - G + NI
Female Elbow

Unit : m / m

Model Tube dia. ØD A B L ØP C E H R Orifice
PLF 4 - M 5 - NI - W 4 4 13.8 18 8 13.4 15.2 8 M 5 X 0.8 4
PLF 4 - 01 G - NI - W 9.6 18.6 22.9 13.4 15.2 13 G 1 / 8 4
PLF 4 - 02 G - NI - W 7 21.1 25.4 13.4 15.2 17 G 1 / 4 4
PLF 6 - M 5 - NI - W 6 4 15 20.6 10 13.3 15.7 8 M 5 X 0.8 4
PLF 6 - 01 G - NI - W 7 19.9 25.5 13.4 16 13 G 1 / 8 4
PLF 6 - 02 G - NI - W 9.4 22.4 28 13.5 15.2 17 G 1 / 4 4
PLF 8 - 01 G - NI - W 8 7 21.4 28.8 13.6 19.2 21.6 13 G 1 / 8 5.4
PLF 8 - 02 G - NI - W 9.5 23.9 31.3 19 21.5 17 G 1 / 4 5.4
PLF 8 - 03 G - NI - W 9.3 23.9 31.3 19.1 21.5 21 G 3 / 8 5.4
PLF 10 - 02 G - NI - W 10 9.6 25.6 34.6 16.7 23.1 26.6 17 G 1 / 4 9.8
PLF 10 - 03 G - NI - W 9.4 25.6 34.6 23.2 26.6 21 G 3 / 8 9.8
PLF 10 - 04 G - NI - W 12 29.6 38.6 23.3 26.6 24 G 1 / 2 9.8
PLF 12 - 02 G - NI - W 12 12 27.4 37.6 19.6 23.1 26.6 17 G 1 / 4 9.2
PLF 12 - 03 G - NI - W 9.6 27.4 37.6 23.3 27.3 21 G 3 / 8 9.2
PLF 12 - 04 G - NI - W 9.6 31.4 41.6 23.4 27.2 24 G 1 / 2 9.2

POL
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 - W 4 8 6 PT 1 / 8 18 21 5 20.4 10.6 11.6 3
POL 4 - 02 - W 8.9 PT 1 / 4 20.3 24.8 6 22.4 12.9 20.4 4
POL 6 - 01 - W 6 10 6 PT 1 / 8 18 21 5 20.6 10.6 10.4 3
POL 6 - 02 - W 8.9 PT 1 / 4 20.3 24.8 6 22.6 12.9 19.4 4
POL 6 - 03 - W 8.7 PT 3 / 8 24 30.5 8 24.1 14.8 33.6 5
POL 8 - 01 - W 8 13.6 6 PT 1 / 8 17.9 21 5 25.4 10.6 12.2 3
POL 8 - 02 - W 8.9 PT 1 / 4 20.3 24.8 6 27.4 12.4 21.4 4
POL 8 - 03 - W 10 PT 3 / 8 25.4 30.5 8 29.7 15.2 35.6 5
POL 8 - 04 - W 13.2 PT 1 / 2 30.9 37.5 10 33.4 17.6 50 7
POL 10 - 02 - W 10 16.7 8.9 PT 1 / 4 20.3 24.8 6 31.6 12.6 24.2 4
POL 10 - 03 - W 10.2 PT 3 / 8 25.3 30.5 8 32 15.1 38.2 5
POL 10 - 04 - W 13.2 PT 1 / 2 30.9 37.5 10 33.4 17.6 57 7
POL 12 - 03 - W 12 19.6 10.1 PT 3 / 8 25.4 30.5 8 34 14.8 59.8 5
POL 12 - 04 - W 12.9 PT 1 / 2 31 37.5 10 36.5 18.3 62.6 7

POL - NI
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 - NI - W 4 8 6 PT 1 / 8 18 21 5 20.1 10.6 12 3
POL 4 - 02 - NI - W 8.9 PT 1 / 4 20.3 24.8 6 22.1 12.9 21 4
POL 6 - 01 - NI - W 6 10 6 PT 1 / 8 18 21 5 20.2 10.6 11.2 3
POL 6 - 02 - NI - W 8.9 PT 1 / 4 20.3 24.8 6 22.2 12.9 20.2 4
POL 6 - 03 - NI - W 8.7 PT 3 / 8 24 30.5 8 24 14.8 34.4 5
POL 8 - 01 - NI - W 8 13.6 6 PT 1 / 8 17.9 21 5 24.4 10.6 14.5 3
POL 8 - 02 - NI - W 8.9 PT 1 / 4 20.3 24.8 6 26.4 12.4 23.7 4
POL 8 - 03 - NI - W 10 PT 3 / 8 25.4 30.5 8 28.7 15.2 37.9 5
POL 8 - 04 - NI - W 13.2 PT 1 / 2 30.9 37.5 10 33.4 17.6 50 7
POL 10 - 02 - NI - W 10 16.7 8.9 PT 1 / 4 20.3 24.8 6 30.6 12.6 28 4
POL 10 - 03 - NI - W 10.2 PT 3 / 8 25.3 30.5 8 31 15.1 42 5
POL 10 - 04 - NI - W 13.2 PT 1 / 2 30.9 37.5 10 32.5 17.6 60.8 7
POL 12 - 03 - NI - W 12 19.6 10.1 PT 3 / 8 25.4 30.5 8 33.1 14.8 67.2 5
POL 12 - 04 - NI - W 12.9 PT 1 / 2 31 37.5 10 35.5 18.3 70 7

POL - G
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 G - W 4 8 5 G 1 / 8 19.4 21.9 5 20.4 12 11.6 3
POL 4 - 02 G - W 7.1 G 1 / 4 21.4 25 6 22.4 14 20 4
POL 6 - 01 G - W 6 10 7 G 1 / 8 18.5 21.9 5 20.6 11 10.6 3
POL 6 - 02 G - W 9.1 G 1 / 4 20.4 25 6 22.6 13 19.2 4
POL 6 - 03 G - W 10 G 3 / 8 25.4 30.5 8 24.1 13.2 32.4 5
POL 8 - 01 G - W 8 13.6 7 G 1 / 8 18.4 21.9 5 25.4 11.1 12.4 3
POL 8 - 02 G - W 9.1 G 1 / 4 20.4 25 6 27.4 12.5 21.2 4
POL 8 - 03 G - W 10 G 3 / 8 25.4 30.5 8 29.7 15.2 34.3 5
POL 8 - 04 G - W 13.2 G 1 / 2 30.9 37.5 10 33.4 17.6 50 7
POL 10 - 02 G - W 10 16.7 9.1 G 1 / 4 20.4 25 6 31.6 12.7 24 4
POL 10 - 03 G - W 10.2 G 3 / 8 25.3 30.5 8 32 15.1 37 5
POL 10 - 04 G - W 11.2 G 1 / 2 29.9 35.5 10 33.4 16.6 54.4 7
POL 12 - 03 G - W 12 19.6 10.1 G 3 / 8 25.4 30.5 8 34 14.8 58.5 5
POL 12 - 04 G - W 10.9 G 1 / 2 30 35.5 10 36.5 17.3 60 7

POL - G + NI
Hex. Holed Unlversal Elbow

Unit : m / m

Model Tube dia. ØD ØP A R B L H E 1 E 2 Mass (g) Orifice
POL 4 - 01 G - NI - W 4 8 5 G 1 / 8 19.4 21.9 5 20.1 12 12.2 3
POL 4 - 02 G - NI - W 7.1 G 1 / 4 21.4 25 6 22.1 14 20.6 4
POL 6 - 01 G - NI - W 6 10 7 G 1 / 8 18.5 21.9 5 20.2 11 11.4 3
POL 6 - 02 G - NI - W 9.1 G 1 / 4 20.4 25 6 22.2 13 20 4
POL 6 - 03 G - NI - W 10 G 3 / 8 25.4 30.5 8 24 13.2 33.2 5
POL 8 - 01 G - NI - W 8 13.6 7 G 1 / 8 18.4 21.9 5 24.4 11.1 14.7 3
POL 8 - 02 G - NI - W 9.1 G 1 / 4 20.4 25 6 26.4 12.5 23.5 4
POL 8 - 03 G - NI - W 10 G 3 / 8 25.4 30.5 8 28.7 15.2 36.7 5
POL 8 - 04 G - NI - W 13.2 G 1 / 2 30.9 37.5 10 33.4 17.6 50 7
POL 10 - 02 G - NI - W 10 16.7 9.1 G 1 / 4 20.4 25 6 30.6 12.7 27.6 4
POL 10 - 03 G - NI - W 10.2 G 3 / 8 25.3 30.5 8 31 15.1 40.8 5
POL 10 - 04 G - NI - W 11.2 G 1 / 2 29.9 35.5 10 32.5 16.6 58.2 7
POL 12 - 03 G - NI - W 12 19.6 10.1 G 3 / 8 25.4 30.5 8 33.1 14.8 66 5
POL 12 - 04 G - NI - W 10.9 G 1 / 2 30 35.5 10 35.5 17.3 67.4 7

PE
Union Tee

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PE 4 - W 4 15.4 12.5 8 3.8 4.1
PE 6 - W 6 16.3 13.1 10 6.4 6.1
PE 8 - W 8 23 18.8 13.6 12.4 8.2
PE 10 - W 10 26.2 19.6 16.7 20.8 10.3
PE 12 - W 12 30.1 22.5 19.6 29 12.2

PE - NI
Union Tee

Unit : m / m

Model Tube dia. ØD E C ØP Mass (g) Orifice
PE 4 - NI - W 4 14 13.8 8 4.7 4.1
PE 6 - NI - W 6 17.7 14.4 10 7.2 6.1
PE 8 - NI - W 8 21.6 20.1 13.6 14.7 8.2
PE 10 - NI - W 10 24.8 20.9 16.7 24.6 10.3
PE 12 - NI - W 12 28.7 23.8 19.6 36.4 12.2

EB
T Bracket

Unit : m / m

Model A B 1 B 2 G H
EB 4 15.5 12 15 3 8.4
EB 6 18 14.5 17.5 3 10.4
EB 8 22 18.2 21.2 3 14.6
EB 10 26 21.4 25 3 17.6
EB 12 28.5 23.9 27.4 3 20.3

PE + EB
Union Tee + Bracket

Unit : m / m

Model Tube dia. ØD ØP C E B 1 B 2 G H
PE 4 - W + EB 4 4 8 13.2 15.9 15.5 7.7 3 9.2
PE 6 - W + EB 6 6 10 13.9 17.7 18 9 3 10.4
PE 8 - W + EB 8 8 13.6 18.8 23.5 22 11 3 14.7
PE 10 - W + EB 10 10 16.7 20.7 26.8 26 12.9 3 18.2
PE 12 - W + EB 12 12 19.6 23.5 31.4 28.5 14.2 3 21.5

PEG
Different Diam. Union Tee

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 E C ØP 1 ØP 2 Orifice
PEG 6 - 4 - W 4 6 15.4 12.5 8 10 3
PEG 8 - 6 - W 6 8 16.3 13.1 10 13.6 4.5
PEG 10 - 8 - W 8 10 23 18.8 13.6 16.7 6
PEG 12 - 10 - W 10 12 26.2 19.6 16.7 19.6 8.5

PEG - NI
Different Diam. Union Tee

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 E C ØP 1 ØP 2 Orifice
PEG 6 - 4 - NI - W 4 6 15.1 12.2 8 10 3
PEG 8 - 6 - NI - W 6 8 24.9 12.6 10 13.6 4.5
PEG 10 - 8 - NI - W 8 10 23.9 17.8 13.6 16.7 6
PEG 12 - 10 - NI - W 10 12 24.6 18.6 16.7 19.6 8.5

PY
Union Y

Unit : m / m

Model Tube dia. ØD C J B ØP Mass (g) Orifice
PY 4 - W 4 18.2 9 31.5 8 8 4
PY 6 - W 6 21.9 12 36.2 10 10 7
PY 8 - W 8 27 15.5 46.8 13.6 13.6 13.8
PY 10 - W 10 32.6 19 52.9 16.7 16.7 22.4
PY 12 - W 12 38.4 21 61 19.6 19.6 31.6

PY - NI
Union Y

Unit : m / m

Model Tube dia. ØD C J B ØP Mass (g) Orifice
PY 4 - NI - W 4 17.8 9 30.7 8 8 4.9
PY 6 - NI - W 6 21.5 12 35.4 10 10 7.8
PY 8 - NI - W 8 26.6 15.5 46 13.6 13.6 16.1
PY 10 - NI - W 10 32.2 19 52.1 16.7 16.7 26.2
PY 12 - NI - W 12 38 21 60.2 19.6 19.6 39

YB
Y Bracket

Unit : m / m

Model A B 1 B 2 G H
YB 4 16 9.8 12.9 3 8.4
YB 6 19 10.2 13.2 3 11
YB 8 22 14.1 17.2 3 14.5
YB 10 26 16.3 20 3 17.6
YB 12 29 19.3 22.8 3 20.2

PT + YB
Union Y + Bracket

Unit : m / m

Model Tube dia. ØD ØP E 1 E 2 H 1 H 2 B J C G
PY 4 - W + YB 4 4 8 16 8.4 22.5 9.3 31.8 9.6 13.2 3
PY 6 - W + YB 6 6 10 19 11 24 11.2 35.2 12.3 13.9 3
PY 8 - W + YB 8 8 13.6 22 14.5 32.7 14.4 47.1 16 18.8 3
PY 10 - W + YB 10 10 16.7 26 17.6 37.2 16.3 53.5 19.3 20.7 3
PY 12 - W + YB 12 12 19.6 29 20.2 43.2 19.7 62.9 22.1 23.6 3

PW
Different Diam. Union Y

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C J B ØP 1 ØP 2 Orifice
PW 6 - 4 - W 4 6 13.9 12.3 35.1 8 10 3
PW 8 - 6 - W 6 8 18 16 46.6 10 13.6 4.5
PW 10 - 8 - W 8 10 20.7 19.3 53.1 13.6 16.7 6
PW 12 - 10 - W 10 12 23.5 22.1 62.2 16.7 19.6 8.5

PW - NI
Different Diam. Union Y

Unit : m / m

Model Tube dia. ØD 1 Tube dia. ØD 2 C J B ØP 1 ØP 2 Orifice
PW 6 - 4 - NI - W 4 6 13.4 12.3 34.3 8 10 3
PW 8 - 6 - NI - W 6 8 17 16 45.2 10 13.6 4.5
PW 10 - 8 - NI - W 8 10 19.7 19.3 51.2 13.6 16.7 6
PW 12 - 10 - NI - W 10 12 21.9 22.1 59.7 16.7 19.6 8.5

PB
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 4 - M 3 - W 4 15.8 14.2 8 3 M 3 X 0.5 8 15.2 13.7 3.2 1.1
PB 4 - M 5 - W 4.8 M 5 X 0.8 8 15.7 13.6 4.8 2
PB 4 - M 6 - W 4 M 6 X 1.0 10 16.2 14.2 4.4 2.5
PB 4 - 01 - W 7 PT 1 / 8 10 17.4 13.1 7.6 4.2
PB 4 - 02 - W 9.6 PT 1 / 4 14 20 15 16.4 4.2
PB 4 - 03 - W 9.6 PT 3 / 8 17 20 15 19.5 4.2
PB 6 - M 5 - W 6 17.7 13.8 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 - W 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 - W 7 PT 1 / 8 10 18.3 14.6 9.6 4
PB 6 - 02 - W 9.6 PT 1 / 4 14 21.6 17 18.4 4
PB 6 - 03 - W 9.6 PT 3 / 8 17 21.7 17 21.6 4
PB 8 - 01 - W 8 23.2 14.7 13.6 7 PT 1 / 8 10 21.5 18 13.6 5.4
PB 8 - 02 - W 7 PT 1 / 4 10 21.8 18.6 19.8 5.4
PB 8 - 03 - W 9.6 PT 3 / 8 14 22.3 17.2 24.6 5.4
PB 8 - 04 - W 9.6 PT 1 / 2 17 22.7 18.1 38 5.4
PB 10 - 01 - W 10 26.8 16 16.7 9.6 PT 1 / 8 15 22.9 20.7 23.8 5
PB 10 - 02 - W 9.6 PT 1 / 4 15 24.7 19.2 25.4 5
PB 10 - 03 - W 9.6 PT 3 / 8 17 24.7 19.3 30.4 5
PB 10 - 04 - W 9.6 PT 1 / 2 21 27 19.6 42 5
PB 12 - 02 - W 12 29.9 19.5 19.6 9.6 PT 1 / 4 15 27.4 21.3 34 8
PB 12 - 03 - W 9.6 PT 3 / 8 17 27.4 21.4 36 8
PB 12 - 04 - W 12 PT 1 / 2 21 29.4 23.1 47.2 8

PB - NI
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 3 - M 3 - NI - W 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.3 1.1
PB 3 - M 5 - NI - W 3.3 M 5 X 0.8 8 15.5 13.8 3.3 2
PB 3 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 14.2 5.2 2
PB 4 - M 3 - NI - W 4 15.7 14.1 8 3 M 3 X 0.5 8 15.2 14.2 3.2 1.1
PB 4 - M 5 - NI - W 4.8 M 5 X 0.8 8 15.7 13.6 4.6 2
PB 4 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 13.7 4.4 2.5
PB 4 - 01 - NI - W 7 PT 1 / 8 10 17.4 13.1 8.5 4.2
PB 4 - 02 - NI - W 9.6 PT 1 / 4 14 20 15 17.3 4.2
PB 4 - 03 - NI - W 9.6 PT 3 / 8 17 20 15 19.5 4.2
PB 6 - M 5 - NI - W 6 17.5 13.7 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 - NI - W 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 - NI - W 7 PT 1 / 8 10 18.3 14.6 10.4 4
PB 6 - 02 - NI - W 9.6 PT 1 / 4 14 21.6 17 19.2 4
PB 6 - 03 - NI - W 9.6 PT 3 / 8 17 21.7 17 20.6 4
PB 8 - 01 - NI - W 8 23.1 14.6 13.6 7 PT 1 / 8 10 21.5 18 13.1 5.4
PB 8 - 02 - NI - W 7 PT 1 / 4 10 21.8 18.6 15.9 5.4
PB 8 - 03 - NI - W 9.6 PT 3 / 8 14 22.3 17.2 22.1 5.4
PB 8 - 04 - NI - W 9.6 PT 1 / 2 17 22.7 18.1 26.9 5.4
PB 10 - 01 - NI - W 10 26.6 15.7 16.7 9.6 PT 1 / 8 15 22.9 20.7 23.5 5
PB 10 - 02 - NI - W 9.6 PT 1 / 4 15 24.7 19.2 34.2 5
PB 10 - 03 - NI - W 9.6 PT 3 / 8 17 24.7 19.3 45.8 5
PB 10 - 04 - NI - W 9.6 PT 1 / 2 21 27 19.6 45.8 5
PB 12 - 02 - NI - W 12 29.8 19.3 19.6 9.6 PT 1 / 4 15 27.4 21.3 42 8
PB 12 - 03 - NI - W 9.6 PT 3 / 8 17 27.4 21.4 43.4 8
PB 12 - 04 - NI - W 12 PT 1 / 2 21 29.4 23.1 54.6 8

PB - G
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 4 - M 3 - W 4 15.8 14.2 8 3 M 3 X 0.5 8 15.2 13.7 3.2 1.1
PB 4 - M 5 - W 4.8 M 5 X 0.8 8 15.7 13.6 4.8 2
PB 4 - M 6 - W 4 M 6 X 1.0 10 16.2 14.2 4.4 2.5
PB 4 - 01 G - W 15.9 13.2 7.5 G 1 / 8 10 17.5 13.7 7.6 4.2
PB 4 - 02 G - W 8.5 G 1 / 4 14 19 14.7 15.2 4.2
PB 4 - 03 G - W 8.5 G 3 / 8 17 20.4 19.4 18.4 4.2
PB 6 - M 5 - W 6 17.7 13.8 10 4.8 M 5 X 0.8 8 17 15.5 6.6 2
PB 6 - M 6 - W 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 G - W 7.5 G 1 / 8 10 18.8 15 9.6 4
PB 6 - 02 G - W 8.5 G 1 / 4 14 20.4 18.2 17.2 4
PB 6 - 03 G - W 8.5 G 3 / 8 17 20.8 17.9 20.4 4
PB 8 - 01 G - W 8 23.2 14.7 13.6 7.5 G 1 / 8 10 22 18.7 12.4 5.4
PB 8 - 02 G - W 8.5 G 1 / 4 14 21 18.4 18.6 5.4
PB 8 - 03 G - W 8.5 G 3 / 8 17 21.8 19.7 21.2 5.4
PB 8 - 04 G - W 10 G 1 / 2 21 23.6 20 34.4 5.4
PB 10 - 02 G - W 10 26.2 20.9 16.7 8.5 G 1 / 4 15 23.9 20.5 24.4 5
PB 10 - 03 G - W 8.5 G 3 / 8 17 23.8 20.4 29 5
PB 10 - 04 G - W 10 G 1 / 2 21 25.1 20.1 39 5
PB 12 - 03 G - W 12 29.9 19.45 19.6 8.5 G 3 / 8 17 25.6 22.5 36.4 8
PB 12 - 04 G - W 10 G 1 / 2 21 27 23 44.2 8

PB - G + NI
Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PB 3 - M 3 - NI - W 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.3 1.1
PB 3 - M 5 - NI - W 3.3 M 5 X 0.8 8 15.5 13.8 3.3 2
PB 3 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 14.2 5.2 2
PB 4 - M 3 - NI - W 4 15.7 14.1 8 3 M 3 X 0.5 8 15.2 14.2 3.2 1.1
PB 4 - M 5 - NI - W 4.8 M 5 X 0.8 8 15.7 13.6 4.6 2
PB 4 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 13.7 4.4 2.5
PB 4 - 01 G - NI - W 15.6 12.9 7.5 G 1 / 8 10 17.5 13.7 8.5 4.2
PB 4 - 02 G - NI - W 8.5 G 1 / 4 14 19 14.7 16.1 4.2
PB 4 - 03 G - NI - W 8.5 G 3 / 8 17 20.4 19.4 17.8 4.2
PB 6 - M 5 - NI - W 6 17.4 13.7 10 4.8 M 5 X 0.8 8 15.5 17 6.6 2
PB 6 - M 6 - NI - W 4 M 6 X 1.0 10 17.5 15.5 5.3 2.5
PB 6 - 01 G - NI - W 7.5 G 1 / 8 10 18.8 15 10.4 4
PB 6 - 02 G - NI - W 8.5 G 1 / 4 14 20.4 18.2 19.5 4
PB 6 - 03 G - NI - W 8.5 G 3 / 8 17 20.8 17.9 21.2 4
PB 8 - 01 G - NI - W 8 23.1 14.6 13.6 7.5 G 1 / 8 10 22 18.7 14.7 5.4
PB 8 - 02 G - NI - W 8.5 G 1 / 4 14 21 18.4 14.7 5.4
PB 8 - 03 G - NI - W 8.5 G 3 / 8 17 21.8 19.7 20.9 5.4
PB 8 - 04 G - NI - W 10 G 1 / 2 21 23.6 20 23.5 5.4
PB 10 - 02 G - NI - W 10 26.1 20.8 16.7 8.5 G 1 / 4 15 23.9 20.5 28.2 5
PB 10 - 03 G - NI - W 8.5 G 3 / 8 17 23.8 20.4 32.8 5
PB 10 - 04 G - NI - W 10 G 1 / 2 21 23.6 20 42.8 5
PB 12 - 03 G - NI - W 12 29.8 19.3 19.6 8.5 G 3 / 8 17 25.6 22.5 43.8 8
PB 12 - 04 G - NI - W 10 G 1 / 2 21 27 23 51.6 8

PD
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 4 - M 3 - W 4 15.9 13.2 8 4 M 3 X 0.5 8 16.2 14.2 3.2 1.1
PD 4 - M 5 - W 3.3 M 5 X 0.8 8 15.5 13.8 4.8 2
PD 4 - M 6 - W 4 M 6 X 1.0 10 16.2 14.2 4.5 2.5
PD 4 - 01 - W 7 PT 1 / 8 10 17.2 13.7 7.6 4
PD 4 - 02 - W 9.6 PT 1 / 4 14 20.2 15.2 16.6 4
PD 4 - 03 - W 9.6 PT 3 / 8 17 20.2 15.2 19.6 4
PD 6 - M 5 - W 6 18.1 9.8 10 4.8 M 5 X 0.8 8 16.5 15.7 6.6 2
PD 6 - M 6 - W 13.9 4 M 6 X 1.0 10 17.5 15.5 5.5 2.5
PD 6 - 01 - W 14.3 7 PT 1 / 8 10 18.4 14.4 9.6 4
PD 6 - 02 - W 9.6 PT 1 / 4 14 21.7 16.9 18.2 4
PD 6 - 03 - W 9.6 PT 3 / 8 17 21.2 16.8 22 4
PD 8 - 01 - W 8 23.3 15.6 13.6 7 PT 1 / 8 10 21.4 17.5 14 5
PD 8 - 02 - W 9.6 PT 1 / 4 14 22.2 16.5 20 5.4
PD 8 - 03 - W 9.6 PT 3 / 8 17 22.1 17.9 24.8 5.4
PD 8 - 04 - W 7 PT 1 / 2 21 22.2 17.8 38.6 5.4
PD 10 - 01 - W 10 26.6 17.5 16.7 7 PT 1 / 8 15 24.7 19.5 24.4 5
PD 10 - 02 - W 9.6 PT 1 / 4 15 24.5 19.6 25.8 8
PD 10 - 03 - W 20.7 12 PT 3 / 8 17 27.5 21.3 30.8 9.8
PD 10 - 04 - W 12.5 PT 1 / 2 21 27.5 21.1 42 9.8
PD 12 - 02 - W 12 31.4 23.5 19.6 9.6 PT 1 / 4 15 26.5 21.3 31.6 5
PD 12 - 03 - W 9.6 PT 3 / 8 17 26.5 21.5 36.6 6.5
PD 12 - 04 - W 12 PT 1 / 2 21 26.5 21.7 47.8 6.5

PD - NI
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 3 - M 3 - NI - W 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.6 1.1
PD 3 - M 5 - NI - W 3.3 M 5 X 0.8 8 15.5 13.8 3.6 2
PD 3 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 14.2 5.4 2
PD 4 - M 3 - NI - W 4 15.3 12.8 8 4 M 3 X 0.5 8 16.2 14.2 4.1 1.1
PD 4 - M 5 - NI - W 3.3 M 5 X 0.8 8 15.5 13.7 5.7 2
PD 4 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 14.2 5.4 2.5
PD 4 - 01 - NI - W 7 PT 1 / 8 10 17.2 13.7 8.5 4
PD 4 - 02 - NI - W 9.6 PT 1 / 4 14 20.2 15.2 17.5 4
PD 4 - 03 - NI - W 9.6 PT 3 / 8 17 20.2 15.2 20.5 4
PD 6 - M 5 - NI - W 6 17.6 9.4 10 4.8 M 5 X 0.8 8 16.5 15.7 7.4 2
PD 6 - M 6 - NI - W 13.5 4 M 6 X 1.0 10 17.5 15.5 6.3 2.5
PD 6 - 01 - NI - W 13.9 7 PT 1 / 8 10 18.4 14.4 10.4 4
PD 6 - 02 - NI - W 9.6 PT 1 / 4 14 21.7 16.9 19 4
PD 6 - 03 - NI - W 9.6 PT 3 / 8 17 21.2 16.8 22.8 4
PD 8 - 01 - NI - W 8 22.8 15.2 13.6 7 PT 1 / 8 10 21.4 17.5 16.3 5
PD 8 - 02 - NI - W 9.6 PT 1 / 4 14 22.2 16.5 22.3 5.4
PD 8 - 03 - NI - W 9.6 PT 3 / 8 17 22.1 17.9 27.1 5.4
PD 8 - 04 - NI - W 26.1 17.1 7 PT 1 / 2 21 22.2 17.8 40.9 5.4
PD 10 - 01 - NI - W 10 26.1 17.1 16.7 7 PT 1 / 8 15 24.7 19.5 28.2 5
PD 10 - 02 - NI - W 20.3 9.6 PT 1 / 4 15 24.5 19.6 29.6 8
PD 10 - 03 - NI - W 12 PT 3 / 8 17 27.5 21.3 34.6 9.8
PD 10 - 04 - NI - W 12.5 PT 1 / 2 21 27.5 21.1 45.8 9.8
PD 12 - 02 - NI - W 12 29.9 22 19.6 9.6 PT 1 / 4 15 26.5 21.3 39 5
PD 12 - 03 - NI - W 9.6 PT 3 / 8 17 26.5 21.5 44 6.5
PD 12 - 04 - NI - W 12 PT 1 / 2 21 26.5 21.7 55.2 6.5

PD - G
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 4 - M 3 - W 4 15.4 12.7 8 4 M 3 X 0.5 8 16.2 14.2 3.2 1.1
PD 4 - M 5 - W 15.9 13.2 3.3 M 5 X 0.8 8 15.5 13.8 4.8 2
PD 4 - M 6 - W 15.9 13.2 4 M 6 X 1.0 10 16.2 14.2 4.5 2.5
PD 4 - 01 G - W 15.7 12.7 4 G 1 / 8 10 17.2 15.7 7.6 4
PD 4 - 02 G - W 5 G 1 / 4 14 20.2 16.4 15.4 4
PD 4 - 03 G - W 5 G 3 / 8 17 20.2 16.4 18.4 4
PD 6 - M 5 - W 6 18.1 9.8 10 4.8 M 5 X 0.8 8 16.5 15.7 6.6 2
PD 6 - M 6 - W 17.7 13.9 4 M 6 X 1.0 10 17.5 15.5 5.5 2.5
PD 6 - 01 G - W 18.1 14.3 4 G 1 / 8 10 18.4 16.4 9.6 4
PD 6 - 02 G - W 5 G 1 / 4 14 21.7 18.1 17 4
PD 6 - 03 G - W 5 G 3 / 8 17 21.2 18 20.8 4
PD 8 - 01 G - W 8 23.3 15.6 13 4 G 1 / 8 10 21.4 19.5 18.6 5
PD 8 - 02 G - W 5 G 1 / 4 10 22.2 17.7 18.8 5.4
PD 8 - 03 G - W 5 G 3 / 8 14 22.1 19.1 23.6 5.4
PD 8 - 04 G - W 18.8 10 G 1 / 2 17 22.2 18.5 35.2 5.4
PD 10 - 02 G - W 10 26.6 17.5 16 5 G 1 / 4 15 24.5 18.1 25 8
PD 10 - 03 G - W 7.2 G 3 / 8 17 27.5 21.6 31.2 9.8
PD 10 - 04 G - W 20.7 10 G 1 / 2 21 27.5 20.1 39 9.8
PD 12 - 02 G - W 12 31.4 23.5 19 10 G 1 / 4 15 26.5 21.9 30.8 5
PD 12 - 03 G - W 8.5 G 3 / 8 17 26.5 21.3 35.2 6.5
PD 12 - 04 G - W 10 G 1 / 2 21 26.5 21.9 44.8 6.5

PD - G + NI
Branch Tee

Unit : m / m

Model Tube dia. ØD E C ØP A R H B L Mass (g) Orifice
PD 3 - M 3 - NI - W 3 15.4 12.7 8 3 M 3 X 0.5 8 15.2 13.7 3.6 1.1
PD 3 - M 5 - NI - W 3.3 M 5 X 0.8 8 15.5 13.8 3.6 2
PD 3 - M 6 - NI - W 4 M 6 X 1.0 10 16.2 14.2 5.4 2
PD 4 - M 3 - NI - W 4 15.4 12.7 8 4 M 3 X 0.5 8 16.2 14.2 4.1 1.1
PD 4 - M 5 - NI - W 15.6 12.9 3.3 M 5 X 0.8 8 15.5 13.7 5.7 2
PD 4 - M 6 - NI - W 15.6 12.9 4 M 6 X 1.0 10 16.2 14.2 5.4 2.5
PD 4 - 01 G - NI - W 15.3 12.3 4 G 1 / 8 10 17.7 15.7 8.5 4
PD 4 - 02 G - NI - W 5 G 1 / 4 14 19.1 16.4 16.3 4
PD 4 - 03 G - NI - W 5 G 3 / 8 17 16.4 16.4 20.1 4
PD 6 - M 5 G - NI - W 6 17.6 9.36 10 4.8 M 5 X 0.8 8 16.5 15.7 7.4 2
PD 6 - M 6 G - NI - W 17.3 13.5 4 M 6 X 1.0 10 17.5 15.5 6.3 2.5
PD 6 - 01 G - NI - W 17.7 13.9 4 G 1 / 8 10 18.9 16.4 10.4 4
PD 6 - 02 G - NI - W 5 G 1 / 4 14 20.5 18.1 17.8 4
PD 6 - 03 G - NI - W 5 G 3 / 8 17 20.1 18 21.6 4
PD 8 - 01 G - NI - W 8 22.9 15.2 13.6 4 G 1 / 8 10 21.9 19.5 20.9 5
PD 8 - 02 G - NI - W 5 G 1 / 4 10 21.1 17.7 21.1 5.4
PD 8 - 03 G - NI - W 5 G 3 / 8 14 21 19.1 25.9 5.4
PD 8 - 04 G - NI - W 22.6 17.8 10 G 1 / 2 17 23.5 18.5 37.5 5.4
PD 10 - 02 G - NI - W 10 26.2 17.5 16.7 5 G 1 / 4 15 23.4 18.1 28.8 8
PD 10 - 03 G - NI - W 7.2 G 3 / 8 17 25.5 21.6 35 9.8
PD 10 - 04 G - NI - W 25.8 19.8 10 G 1 / 2 21 25.1 20.1 42.8 9.8
PD 12 - 02 G - NI - W 12 29.9 22 19.6 10 G 1 / 4 15 26.9 21.9 38.2 5
PD 12 - 03 G - NI - W 8.5 G 3 / 8 17 25.5 21.3 42.6 6.5
PD 12 - 04 G - NI - W 10 G 1 / 2 21 26.9 21.9 55.2 6.5

PX
Branch Y

Unit : m / m

Model Tube dia. ØD ØP A R H B J Orifice
PX 4 - M 5 - W 4 8 3.5 M 5 X 0.8 10 38.2 9.6 2
PX 4 - 01 - W 7 PT 1 / 8 10 39.9 9.6 2
PX 4 - 02 - W 9.6 PT 1 / 4 14 43 9.6 2
PX 6 - M 5 - W 6 10 3.5 M 5 X 0.8 12 41.2 12.3 2
PX 6 - 01 - W 7 PT 1 / 8 12 43.4 12.3 4.5
PX 6 - 02 - W 9.6 PT 1 / 4 14 46 12.3 4.5
PX 6 - 03 - W 9.6 PT 3 / 8 17 46 12.3 4.5
PX 8 - 01 - W 8 13.6 7 PT 1 / 8 15 54.8 16 5
PX 8 - 02 - W 9.6 PT 1 / 4 15 57.4 16 6.2
PX 8 - 03 - W 9.6 PT 3 / 8 17 56.4 16 6.2
PX 10 - 02 - W 10 16.7 9.6 PT 1 / 4 19 62.9 19.3 8
PX 10 - 03 - W 9.6 PT 3 / 8 19 62.9 19.3 8
PX 10 - 04 - W 12 PT 1 / 2 21 65.3 19.3 8
PX 12 - 02 - W 12 19.6 9.6 PT 1 / 4 21 73 22.1 8
PX 12 - 03 - W 9.6 PT 3 / 8 21 73 22.1 10
PX 12 - 04 - W 12 PT 1 / 2 21 74.5 22.1 10

PX - NI
Branch Y

Unit : m / m

Model Tube dia. ØD ØP A R H B J Orifice
PX 4 - M 5 - NI - W 4 8 3.5 M 5 X 0.8 10 37.9 9.6 2
PX 4 - 01 - NI - W 7 PT 1 / 8 10 39.6 9.6 2
PX 4 - 02 - NI - W 9.6 PT 1 / 4 14 42.7 9.6 2
PX 6 - M 5 - NI - W 6 10 3.5 M 5 X 0.8 12 40.7 12.3 2
PX 6 - 01 - NI - W 7 PT 1 / 8 12 42.9 12.3 4.5
PX 6 - 02 - NI - W 9.6 PT 1 / 4 14 45.5 12.3 4.5
PX 6 - 03 - NI - W 9.6 PT 3 / 8 17 45.5 12.3 4.5
PX 8 - 01 - NI - W 8 13.6 7 PT 1 / 8 15 53.8 16 5
PX 8 - 02 - NI - W 9.6 PT 1 / 4 15 56.4 16 6.2
PX 8 - 03 - NI - W 9.6 PT 3 / 8 17 55.4 16 6.2
PX 10 - 02 - NI - W 10 16.7 9.6 PT 1 / 4 19 61.9 19.3 8
PX 10 - 03 - NI - W 9.6 PT 3 / 8 19 61.9 19.3 8
PX 10 - 04 - NI - W 12 PT 1 / 2 21 64.3 19.3 8
PX 12 - 02 - NI - W 12 19.6 9.6 PT 1 / 4 21 71.4 22.1 8
PX 12 - 03 - NI - W 9.6 PT 3 / 8 21 71.4 22.1 10
PX 12 - 04 - NI - W 12 PT 1 / 2 21 72.9 22.1 10

PM
Bulkhead Union

Unit : m / m

Model Tube dia. ØD M A B ØP C E H G Mass (g) Orifice
PM 4 - W 4 M 10 X 1.0 8.2 26.9 8 12.4 2.4 10 4 8.8 3
PM 6 - W 6 M 12 X 1.0 9.3 30.3 10 14.6 5.4 14 4 9.4 4.8
PM 8 - W 8 M 16 X 1.0 10.4 39.9 13.6 18.7 9 19 4 18.6 6.8
PM 10 - W 10 M 20 X 1.0 11.8 43.8 16.7 20.8 12 24 5 36.6 8.5
PM 12 - W 12 M 22 X 1.0 12.1 48.9 19.6 23.5 15.9 27 5 48.8 10.5

PM - NI
Bulkhead Union

Unit : m / m

Model Tube dia. ØD M A B ØP C E H G Mass (g) Orifice
PM 4 - NI 4 M 10 X 1.0 7 24.6 8 11.2 2.4 10 4 9.7 3
PM 6 - NI 6 M 12 X 1.0 8.1 28 10 13.4 5.4 14 4 10.2 4.8
PM 8 - NI 8 M 16 X 1.0 9.3 37.6 13.6 17.5 9 19 4 20.9 6.8
PM 10 - NI 10 M 20 X 1.0 10.6 41.5 16.7 19.6 12 24 5 40.4 8.5
PM 12 - NI 12 M 22 X 1.0 10.9 46.6 19.6 22.3 15.9 27 5 56.2 10.5

PMF - G
Bulkhead Female Straight

Unit : m / m

Model Tube dia. ØD A E G B C M H R Mass (g) Orifice
PMF 4 - 01 G - W 4 8 5.9 4 25.2 12.4 M 12 X 1.0 14 G 1 / 8 18.8 3
PMF 6 - 01 G - W 6 9 7.8 4 28.8 14.3 M 14 X 1.0 17 G 1 / 8 29.5 4.8
PMF 6 - 02 G - W 10 7.8 4 29.8 14.3 M 14 X 1.0 17 G 1 / 4 29 4.8
PMF 8 - 01 G - W 8 9 9.8 4 31.6 18.3 M 16 X 1.0 17 G 1 / 8 30.8 6.8
PMF 8 - 02 G - W 10 9.8 4 32.6 18.3 M 16 X 1.0 19 G 1 / 4 38.2 6.8
PMF 8 - 03 G - W 11 9.8 4 33.6 18.3 M 16 X 1.0 21 G 3 / 8 51.2 6.8
PMF 10 - 02 G - W 10 10 11.8 5 36 20.9 M 20 X 1.0 21 G 1 / 4 59 8.5
PMF 10 - 03 G - W 10 11.8 5 36 20.9 M 20 X 1.0 24 G 3 / 8 68 8.5
PMF 12 - 03 G - W 12 10 13.8 5 38.7 24.3 M 22 X 1.0 24 G 3 / 8 73.1 10.5
PMF 12 - 04 G - W 14 13.8 5 42.7 24.3 M 22 X 1.0 24 G 1 / 2 71.8 10.5

PMF - G + NI
Bulkhead Female Straight

Unit : m / m

Model Tube dia. ØD A E G B C M H R Mass (g) Orifice
PMF 4 - 01 G - NI 4 8 5.9 4 25.2 12.4 M 12 X 1.0 14 G 1 / 8 19 3
PMF 6 - 01 G - NI 6 9 7.8 4 28.8 14.3 M 14 X 1.0 17 G 1 / 8 30.5 4.8
PMF 6 - 02 G - NI 10 7.8 4 29.8 14.3 M 14 X 1.0 17 G 1 / 4 30 4.8
PMF 8 - 01 G - NI 8 9 9.8 4 31.6 18.3 M 16 X 1.0 17 G 1 / 8 31.9 6.8
PMF 8 - 02 G - NI 10 9.8 4 32.6 18.3 M 16 X 1.0 19 G 1 / 4 39.2 6.8
PMF 8 - 03 G - NI 11 9.8 4 33.6 18.3 M 16 X 1.0 21 G 3 / 8 53.9 6.8
PMF 10 - 02 G - NI 10 10 11.8 5 36 20.9 M 20 X 1.0 21 G 1 / 4 63.5 8.5
PMF 10 - 03 G - NI 10 11.8 5 36 20.9 M 20 X 1.0 24 G 3 / 8 70 8.5
PMF 12 - 03 G - NI 12 10 13.8 5 38.7 24.3 M 22 X 1.0 24 G 3 / 8 76.8 10.5
PMF 12 - 04 G - NI 14 13.8 5 42.7 24.3 M 22 X 1.0 24 G 1 / 2 75.5 10.5

PHW
Double Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHW 4 - 01 - W 4 PT 1 / 8 8 43 39 16 8 15 14 22.5 14 14 38.4 3
PHW 4 - 02 - W PT 1 / 4 10 46 40 17 57.8 3
PHW 4 - 03 - W PT 3 / 8 12 48 41.5 18.5 62.2 3
PHW 6 - 01 - W 6 PT 1 / 8 8 43 39 16 10 17 14 24.5 14 14 35.8 4.6
PHW 6 - 02 - W PT 1 / 4 10 46 40 17 57.4 4.6
PHW 6 - 03 - W PT 3 / 8 12 48 41.5 18.5 77.6 4.6
PHW 8 - 01 - W 8 PT 1 / 8 8 46 42 17.5 13.6 18.5 15 28.5 17 17 39.8 5.1
PHW 8 - 02 - W PT 1 / 4 10 49 43 18.5 63.4 5.1
PHW 8 - 03 - W PT 3 / 8 12 50 43.5 19 67.4 5.1
PHW 8 - 04 - W PT 1 / 2 15 55 47 22.5 22 102.4 5.1
PHW 10 - 02 - W 10 PT 1 / 4 10 57.5 51.5 22 16.7 20.5 18 33 22 22 73.6 6.5
PHW 10 - 03 - W PT 3 / 8 12 58.5 52 22.5 86.8 6.5
PHW 10 - 04 - W PT 1 / 2 15 61.5 53.5 24 107.8 6.5
PHW 12 - 03 - W 12 PT 3 / 8 12 68 61.5 27 19.6 23.5 21 38.5 27 27 132.4 7.7
PHW 12 - 04 - W PT 1 / 2 15 71 63 28.5 156.2 7.7

PHT
Triple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHT 4 - 01 - W 4 PT 1 / 8 8 57 53 16 8 15 14 22.5 14 14 48.8 3
PHT 4 - 02 - W PT 1 / 4 11 60 54 17 73.4 3
PHT 4 - 03 - W PT 3 / 8 12 62 55.5 18.5 17 74.6 3
PHT 6 - 01 - W 6 PT 1 / 8 8 57 53 16 10 17 14 24.5 14 14 45 4.6
PHT 6 - 02 - W PT 1 / 4 11 60 54 17 74.8 4.6
PHT 6 - 03 - W PT 3 / 8 12 62 55.5 18.5 17 103.4 4.6
PHT 8 - 01 - W 8 PT 1 / 8 8 61 57 17.5 13.6 18.5 15 28.5 17 17 51 5.1
PHT 8 - 02 - W PT 1 / 4 11 64 58 18.5 81.4 5.1
PHT 8 - 03 - W PT 3 / 8 12 65 58.5 19 85.4 5.1
PHT 8 - 04 - W PT 1 / 2 15 70 62 22.5 22 126.8 5.1
PHT 10 - 02 - W 10 PT 1 / 4 11 75.5 69.5 22 16.7 20.5 18 33 22 22 101.4 6.5
PHT 10 - 03 - W PT 3 / 8 12 76.5 70 22.5 117.2 6.5
PHT 10 - 04 - W PT 1 / 2 15 79.5 71.5 24 138.4 6.5
PHT 12 - 03 - W 12 PT 3 / 8 12 89 82.5 27 19.6 23.5 21 38.5 27 27 132.8 7.7
PHT 12 - 04 - W PT 1 / 2 15 92 84 28.5 209 7.7

PHU
Quardruple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHU 4 - 01 - W 4 PT 1 / 8 7 78.6 75.1 16 8 15 14 22.5 14 14 59.2 3
PHU 4 - 02 - W PT 1 / 4 9.6 84 79.2 17 90.8 3
PHU 4 - 03 - W PT 3 / 8 9.6 102.1 97.3 18.5 92 3
PHU 6 - 01 - W 6 PT 1 / 8 7 78.6 75.1 16 10 17 14 24.5 14 14 54.2 4.6
PHU 6 - 02 - W PT 1 / 4 9.6 84 79.2 17 92.2 4.6
PHU 6 - 03 - W PT 3 / 8 9.6 102.1 97.3 18.5 129.2 4.6
PHU 8 - 01 - W 8 PT 1 / 8 7 78.3 74.8 17.5 13.6 18.5 17 28.5 17 17 62.2 5.1
PHU 8 - 02 - W PT 1 / 4 9.6 84 79.2 18.5 99.4 5.1
PHU 8 - 03 - W PT 3 / 8 9.4 102.4 97.7 19 104.4 5.1
PHU 8 - 04 - W PT 1 / 2 12 120.7 114.7 22.5 22 154.4 5.1
PHU 10 - 02 - W 10 PT 1 / 4 9.6 94.2 89.4 22 16.7 20.5 22 33 22 22 127.6 6.5
PHU 10 - 03 - W PT 3 / 8 9.6 102 97.2 22.5 147.6 6.5
PHU 10 - 04 - W PT 1 / 2 12 120.7 114.7 24 168.8 6.5
PHU 12 - 03 - W 12 PT 3 / 8 9.6 105.5 100.7 27 19.6 23.5 27 38.5 27 27 168.4 7.7
PHU 12 - 04 - W PT 1 / 2 12 117.5 111.5 28.5 261 7.7

PHR
Quintuple Universal Elbow

Unit : m / m

Model Tube dia. ØD R A B L 1 L 2 ØP C J E H 1 H 2 Mass (g) Orifice
PHR 4 - 01 - W 4 PT 1 / 8 7 93.7 90.2 16 8 15 14 22.5 14 14 69.6 3
PHR 4 - 02 - W PT 1 / 4 9.6 100 95.2 17 108.2 3
PHR 4 - 03 - W PT 3 / 8 9.6 122.4 117.6 18.5 109.4 3
PHR 6 - 01 - W 6 PT 1 / 8 7 93.7 90.2 16 10 17 14 24.5 14 14 63.4 4.6
PHR 6 - 02 - W PT 1 / 4 9.6 100 95.2 17 109.6 4.6
PHR 6 - 03 - W PT 3 / 8 9.6 122.4 117.6 18.5 155 4.6
PHR 8 - 01 - W 8 PT 1 / 8 7 93.3 89.8 17.5 13.6 18.5 17 28.5 17 17 73.4 5.1
PHR 8 - 02 - W PT 1 / 4 9.6 100 95.2 18.5 117.4 5.1
PHR 8 - 03 - W PT 3 / 8 9.4 122.8 118.1 19 123.4 5.1
PHR 8 - 04 - W PT 1 / 2 12 145 139 22.5 22 182 5.1
PHR 10 - 02 - W 10 PT 1 / 4 9.6 112.6 107.8 22 16.7 20.5 22 33 22 22 153.8 6.5
PHR 10 - 03 - W PT 3 / 8 9.6 122.2 117.4 22.5 178 6.5
PHR 10 - 04 - W PT 1 / 2 12 145 139 24 199.2 6.5
PHR 12 - 03 - W 12 PT 3 / 8 9.6 126.6 121.8 27 19.6 23.5 27 38.5 27 27 204 7.7
PHR 12 - 04 - W PT 1 / 2 12 142 136 28.5 313 7.7

Note
G : BSPP Thread
NI : Release Ring ( Metallic Body )

Online Inquiry
