Hydraulic Shock Absorbers FC Series
FC1410 / FC1410-NC
PRODUCT INFO
- Adjustable type, black anodized
- stroke 10 mm
- M 14 * PITCH 1.5 (1.0)
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC1410 | M14 * PITCH 1.5 ( 1.0 ) |
10 | 15 | 2.9 ~ 120 | 3.2 | 27000 | -10~70 | |
| FC1410-NC | M14 * PITCH 1.5 ( 1.0 ) |
10 | 15 | 2.9 ~ 120 | 3.2 | 27000 | -10~70 |
OPTIONAL ACCESSORIES
FC2016 / FC2016-NC
PRODUCT INFO
- Adjustable type, black anodized
- stroke 16 mm
- M 20 * PITCH 1.5
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2016 | M 20 * PITCH 1.5 | 16 | 28 | 5.4 ~ 224 | 3.2 | 33,600 | 9.8 ~ 20 | -10~70 |
| FC2016-NC | M 20 * PITCH 1.5 | 16 | 28 | 5.4 ~ 224 | 3.2 | 33,600 | 9.8 ~ 20 | -10~70 |
OPTIONAL ACCESSORIES
FC2020 / FC2020-NC
PRODUCT INFO
- Adjustable type, black anodized
- stroke 20 mm
- M 20 * PITCH 1.5
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2020 | M 20 * PITCH 1.5 | 20 | 35 | 6.8 ~ 280 | 3.2 | 42,000 | 9 ~ 23 | -10~70 |
| FC2020-NC | M 20 * PITCH 1.5 | 20 | 35 | 6.8 ~ 280 | 3.2 | 42,000 | 9 ~ 23 | -10~70 |
OPTIONAL ACCESSORIES

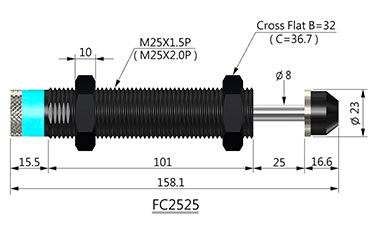

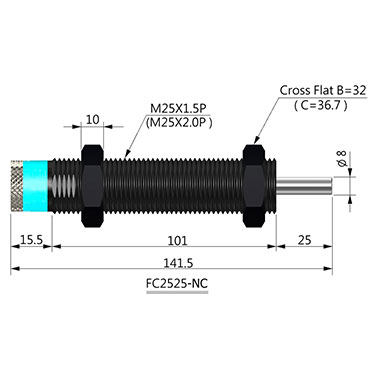

FC2525 / FC2525-NC
PRODUCT INFO
- Adjustable type, black anodized
- stroke 25 mm
- M 25 * PITCH 1.5 ( 2.0 )
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- NC no cap
- Weight: 381 grams ; NC Weight: 376 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2525 | M 25 * P 1.5 ( 2.0 ) |
25 | 78 | 15~ 624 | 3.2 | 70,200 | 9.6 ~ 28 | -10~70 |
| FC2525-NC | M 25 * P 1.5 ( 2.0 ) |
25 | 78 | 15~ 624 | 3.2 | 70,200 | 9.6 ~ 28 | -10~70 |
OPTIONAL ACCESSORIES
FC2540
PRODUCT INFO
- Adjustable type, black anodized
- stroke 40 mm
- M 25 * PITCH 1.5( 2.0 )
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- Weight: 480 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2540 | M 25 * PITCH 1.5 ( 2.0 ) |
40 | 122 | 23.8~ 976 | 3.2 | 87,840 | 13.7 ~ 41 | -10~70 |
OPTIONAL ACCESSORIES

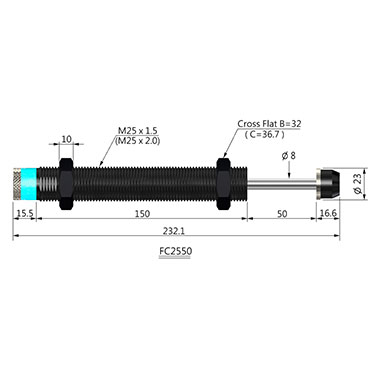

FC2550
PRODUCT INFO
- Adjustable type, black anodized
- stroke 50 mm
- M 25 * PITCH 1.5( 2.0 )
- POLYBAG PACKING, EACH WITH 2 NUTS
- Stop collar is optional
- Weight: 490 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2550 | M 25 * PITCH 1.5 ( 2.0 ) |
50 | 140 | 27.3 ~ 1120 | 3.2 | 100,800 | 13 ~ 28 | -10~70 |
OPTIONAL ACCESSORIES
FC2725 / FC2725-NC
PRODUCT INFO
- Adjustable type, black anodized
- stroke 25 mm
- M 27 * PITCH 3.0 ( 1.5 )
- INNER BOX PACKING, EACH WITH 2 NUTS
- Stop collar is optional, and is not provided for pitch 3.0
- NC no cap
- Weight: 367 grams ; NC Weight: 362 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC2725 | M 27 * PITCH 3.0 ( 1.5 ) |
25 | 78 | 15~ 624 | 3.2 | 70,200 | 8 ~ 27 | -10~70 |
| FC2725-NC | M 27 * PITCH 3.0 ( 1.5 ) |
25 | 78 | 15~ 624 | 3.2 | 70,200 | 8 ~ 27 | -10~70 |
FC3625
PRODUCT INFO
- Adjustable type, black anodized
- stroke 25 mm
- M 36 * PITCH 1.5
- packed in kraft box, each with 2 nuts
- Weight: 1030 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC3625 | M 36 * PITCH 1.5 | 25 | 110 | 21 ~ 880 | 3.2 | 52,800 | 15.8 ~ 45 | -10~70 |
OPTIONAL ACCESSORIES
FC3650
PRODUCT INFO
- Adjustable type, black anodized
- stroke 50 mm
- M 36 * PITCH 1.5
- packed in kraft box, each with 2 nuts
- Weight: 1200 grams
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| FC3650 | M 36 * PITCH 1.5 | 50 | 220 | 43 ~ 1,760 | 3.2 | 105,600 | 16.5 ~ 49.5 | -10~70 |
OPTIONAL ACCESSORIES
