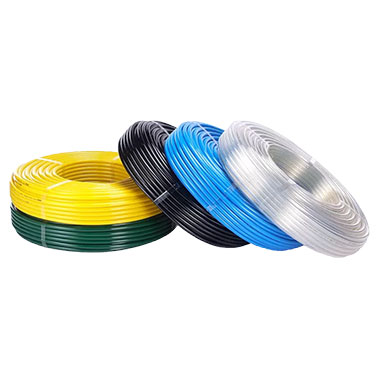

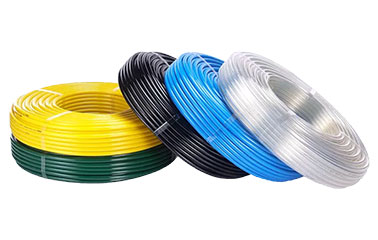

PUS Polyether Polyurethane Tubing
Feature
- Highly flexible with a small bending radius, making it ideal for installation in confined spaces.
- Excellent kink resistance and abrasion resistance, outperforming conventional plastic tubing.
- Low gas permeability reduces the risk of leakage and contamination.
- Excellent flexibility and shape memory allow the tubing to withstand repeated bending.
- PU Ester is a general-purpose pneumatic tubing material designed for standard industrial automation equipment and pneumatic piping systems.

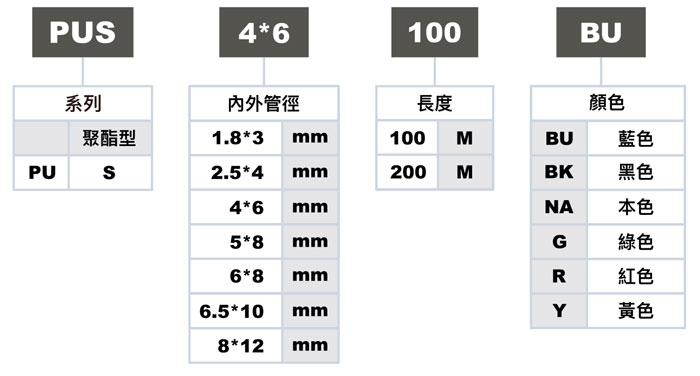

Ordering Code
Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 23°C |
Burst Pressure at 23°C |
Min. Bending Radius |
Weight (g/m) |
| PUS-1.8*3 |
1.8 mm |
3 mm |
0.6 mm |
20 bar |
60 bar |
10 mm |
5.6 |
| PUS-2.5*4 |
2.5 mm |
4 mm |
0.75 mm |
15 bar |
45 bar |
15 mm |
9.4 |
| PUS-2*4 |
2 mm |
4 mm |
1 mm |
22 bar |
66 bar |
15 mm |
11.6 |
| PUS-3*5 |
3 mm |
5 mm |
1 mm |
16 bar |
48 bar |
20 mm |
15.4 |
| PUS-4*6 |
4 mm |
6 mm |
1 mm |
14 bar |
42 bar |
25 mm |
19.3 |
| PUS-5*8 |
5 mm |
8 mm |
1.5 mm |
15 bar |
45 bar |
30 mm |
37.7 |
| PUS-5.5*8 |
5.5 mm |
8 mm |
1.25 mm |
12 bar |
36 bar |
40 mm |
32.6 |
| PUS-5.7*8 |
5.7 mm |
8 mm |
1.15 mm |
11 bar |
33 bar |
40 mm |
30.4 |
| PUS-6.5*10 |
6.5 mm |
10 mm |
1.75 mm |
14 bar |
42 bar |
40 mm |
55.8 |
| PUS-7*10 |
7 mm |
10 mm |
1.5 mm |
11 bar |
33 bar |
50 mm |
49.2 |
| PUS-7.5*10 |
7.5 mm |
10 mm |
1.25 mm |
9 bar |
27 bar |
60 mm |
42.2 |
| PUS-7.7*10 |
7.7 mm |
10 mm |
1.15 mm |
8 bar |
24 bar |
65 mm |
39.3 |
| PUS-8*12 |
8 mm |
12 mm |
2 mm |
13 bar |
39 bar |
50 mm |
77.2 |
| PUS-9*12 |
9 mm |
12 mm |
1.5 mm |
9 bar |
27 bar |
70 mm |
92.7 |
| PUS-11*14 |
11 mm |
14 mm |
1.5 mm |
8 bar |
24 bar |
100 mm |
72.4 |
| PUS-11*16 |
11 mm |
16 mm |
2.5 mm |
12 bar |
36 bar |
75 mm |
130.3 |
| PUS-12*16 |
12 mm |
16 mm |
2 mm |
9 bar |
27 bar |
100 mm |
108.1 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 75°F |
Burst Pressure at 75°F |
Min. Bending Radius |
Length |
| PUS-06618 |
0.066 |
1/8" |
0.030 inch |
220 psi |
660 psi |
3/16" |
200 M |
| PUS-094532 |
0.094 |
5/32" |
0.031 inch |
143 psi |
430 psi |
3/8" |
200 M |
| PUS-107316 |
0.107 |
3/16" |
0.040 inch |
165 psi |
495 psi |
3/8" |
200 M |
| PUS-16014 |
0.160 |
1/4" |
0.045 inch |
143 psi |
430 psi |
1/2" |
100 M |
| PUS-187516 |
0.187 |
5/16" |
0.062 inch |
165 psi |
495 psi |
1/2" |
100 M |
| PUS-25038 |
0.250 |
3/8" |
0.062 inch |
132 psi |
396 psi |
1" |
100 M |
| PUS-32012 |
0.320 |
1/2" |
0.090 inch |
148 psi |
444 psi |
1 1/8" |
100 M |
| PUS-375916 |
0.375 |
9/16" |
0.094 inch |
143 psi |
430 psi |
1 3/8" |
100 M |
