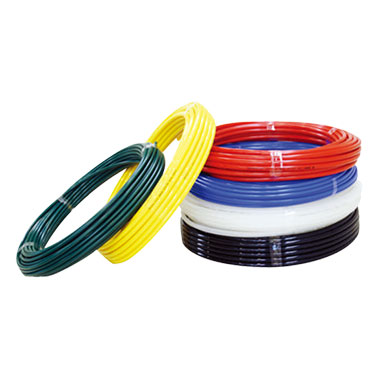

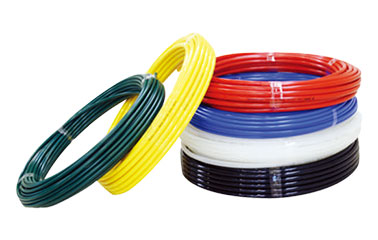

PA6 Nylon Tubing
Feature
- Excellent chemical compatibility with common industrial oils and media.
- Excellent impact resistance and rigidity.
- Excellent resistance to heat, abrasion, oil, solvents, and chemicals

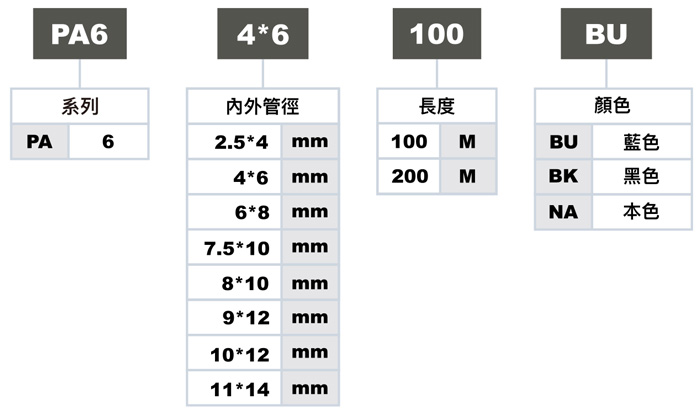

Ordering Code
Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 23°C |
Burst Pressure at 23°C |
Min. Bending Radius |
Weight (g/m) |
| PA6-2*4 |
2 mm |
4 mm |
1 mm |
55 bar |
165 bar |
25 mm |
10.8 |
| PA6-2.5*4 |
2.5 mm |
4 mm |
0.75 mm |
38 bar |
114 bar |
30 mm |
8.8 |
| PA6-3*5 |
3 mm |
5 mm |
1 mm |
42 bar |
126 bar |
30 mm |
14.4 |
| PA6-4*6 |
4 mm |
6 mm |
1 mm |
33 bar |
99 bar |
45 mm |
18.1 |
| PA6-6*8 |
6 mm |
8 mm |
1 mm |
24 bar |
72 bar |
65 mm |
25.3 |
| PA6-7*10 |
7 mm |
10 mm |
1.5 mm |
29 bar |
87 bar |
75 mm |
46.0 |
| PA6-7.5*10 |
7.5 mm |
10 mm |
1.25 mm |
23 bar |
69 bar |
80 mm |
39.5 |
| PA6-8*10 |
8 mm |
10 mm |
1 mm |
18 bar |
54 bar |
110 mm |
32.5 |
| PA6-9*12 |
9 mm |
12 mm |
1.5 mm |
23 bar |
69 bar |
105 mm |
56.9 |
| PA6-10*12 |
10 mm |
12 mm |
1 mm |
15 bar |
45 bar |
165 mm |
39.7 |
| PA6-11*14 |
11 mm |
14 mm |
1.5 mm |
20 bar |
60 bar |
180 mm |
67.7 |
| PA6-12*15 |
12 mm |
15 mm |
1.5 mm |
18 bar |
54 bar |
170 mm |
73.1 |
| PA6-13*16 |
13 mm |
16 mm |
1.5 mm |
15 bar |
45 bar |
140 mm |
78.5 |
| PA6-14*18 |
14 mm |
18 mm |
2 mm |
19 bar |
57 bar |
180 mm |
115.6 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 75°F |
Burst Pressure at 75°F |
Min. Bending Radius |
Weight (lb/ft) |
| PA6-09118 |
0.091 |
1/8" |
0.02 inch |
425 psi |
1700 psi |
1/2" |
0.003 |
| PA6-07318 |
0.073 |
1/8" |
0.03 inch |
625 psi |
2500 psi |
1/2" |
0.004 |
| PA6-106532 |
0.106 |
5/32" |
0.03 inch |
475 psi |
1900 psi |
5/8" |
0.005 |
| PA6-140316 |
0.140 |
3/16" |
0.02 inch |
300 psi |
1200 psi |
1 1/4" |
0.006 |
| PA6-118316 |
0.118 |
3/16" |
0.03 inch |
450 psi |
1800 psi |
7/8" |
0.009 |
| PA6-18014 |
0.180 |
1/4" |
0.04 inch |
300 psi |
1200 psi |
1 1/4" |
0.012 |
| PA6-17014 |
0.170 |
1/4" |
0.04 inch |
325 psi |
1300 psi |
1 1/4" |
0.014 |
| PA6-233516 |
0.233 |
5/16" |
0.04 inch |
300 psi |
1200 psi |
1 1/2" |
0.017 |
| PA6-27538 |
0.275 |
3/8" |
0.05 inch |
300 psi |
1200 psi |
1 3/4" |
0.025 |
| PA6-25038 |
0.250 |
3/8" |
0.06 inch |
450 psi |
1800 psi |
1 1/2" |
0.030 |
| PA6-37512 |
0.375 |
1/2" |
0.06 inch |
300 psi |
1200 psi |
3" |
0.043 |
| PA6-50058 |
0.500 |
5/8" |
0.06 inch |
175 psi |
700 psi |
5" |
0.056 |
| PA6-59434 |
0.594 |
3/4" |
0.08 inch |
175 psi |
700 psi |
8 3/8" |
0.081 |
