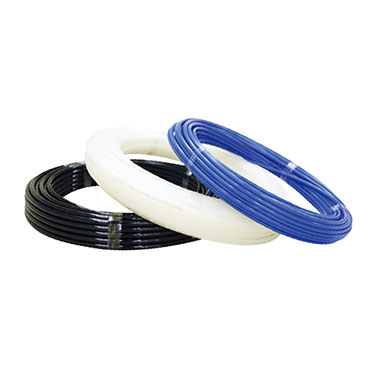

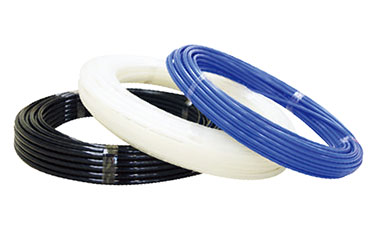

PA12 Nylon Tubing
Feature
- Low moisture absorption and excellent chemical resistance.
- Excellent heat and light stability.
- Excellent dimensional stability ensures consistent dimensions during long-term service./li>

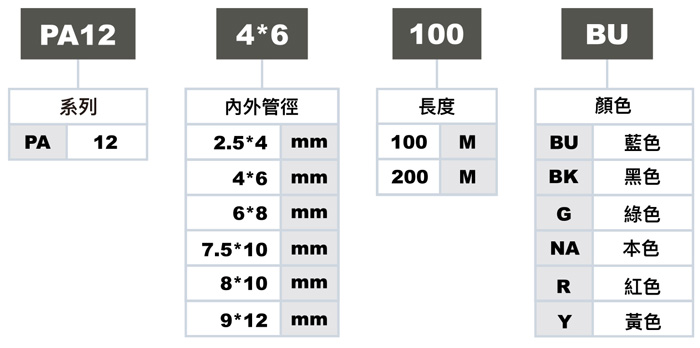

Ordering Code
Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 23°C |
Burst Pressure at 23°C |
Min. Bending Radius |
Weight (g/m) |
| PA6-2*4 |
2 mm |
4 mm |
1 mm |
44 bar |
132 bar |
15 mm |
9.7 |
| PA6-2.5*4 |
2.5 mm |
4 mm |
0.75 mm |
31 bar |
93 bar |
20 mm |
7.8 |
| PA6-2.7*4 |
2.7 mm |
4 mm |
0.65 mm |
26 bar |
78 bar |
25 mm |
7.0 |
| PA6-3*5 |
3 mm |
5 mm |
1 mm |
33 bar |
99 bar |
30 mm |
12.9 |
| PA6-4*6 |
4 mm |
6 mm |
1 mm |
27 bar |
81 bar |
35 mm |
16.1 |
| PA6-6*8 |
6 mm |
8 mm |
1 mm |
19 bar |
57 bar |
40 mm |
22.5 |
| PA6-7*10 |
7 mm |
10 mm |
1.5 mm |
24 bar |
72 bar |
45 mm |
41 |
| PA6-7.5*10 |
7.5 mm |
10 mm |
1.25 mm |
19 bar |
57 bar |
50 mm |
35.2 |
| PA6-8*10 |
8 mm |
10 mm |
1 mm |
15 bar |
45 bar |
60 mm |
29 |
| PA6-9*12 |
9 mm |
12 mm |
1.5 mm |
19 bar |
57 bar |
70 mm |
50.7 |
| PA6-10*12 |
10 mm |
12 mm |
1 mm |
12 bar |
36 bar |
85 mm |
35.4 |
| PA6-10*14 |
10 mm |
14 mm |
2 mm |
22 bar |
66 bar |
90 mm |
77.2 |
| PA6-11*14 |
11 mm |
14 mm |
1.5 mm |
16 bar |
48 bar |
88 mm |
60.3 |
| PA6-12*14 |
12 mm |
14 mm |
1 mm |
10 bar |
30 bar |
85 mm |
41.8 |
| PA6-12*15 |
12 mm |
15 mm |
1.5 mm |
15 bar |
45 bar |
100 mm |
65.2 |
| PA6-12*16 |
12 mm |
16 mm |
2 mm |
19 bar |
57 bar |
150 mm |
90.1 |
| PA6-14*18 |
14 mm |
18 mm |
2 mm |
17 bar |
51 bar |
190 mm |
103 |
| PA6-16*20 |
16 mm |
20 mm |
2 mm |
15 bar |
45 bar |
180 mm |
115.9 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 75°F |
Burst Pressure at 75°F |
Min. Bending Radius |
Weight (lb/ft) |
| PA12-07918 |
0.079 |
1/8" |
0.02 inch |
420 psi |
1680 psi |
3/8" |
0.003 |
| PA12-09318 |
0.093 |
1/8" |
0.02 inch |
250 psi |
1000 psi |
1/2" |
0.002 |
| PA12-106532 |
0.106 |
5/32" |
0.03 inch |
300 psi |
1200 psi |
1/2" |
0.005 |
| PA12-138316 |
0.138 |
3/16" |
0.02 inch |
250 psi |
1000 psi |
5/8" |
0.006 |
| PA12-15014 |
0.150 |
1/4" |
0.05 inch |
500 psi |
2000 psi |
3/4" |
0.014 |
| PA12-17014 |
0.170 |
1/4" |
0.04 inch |
310 psi |
1240 psi |
7/8" |
0.012 |
| PA12-18014 |
0.180 |
1/4" |
0.04 inch |
250 psi |
1000 psi |
7/8" |
0.010 |
| PA12-232516 |
0.232 |
5/16" |
0.04 inch |
250 psi |
1000 psi |
1 1/8" |
0.015 |
| PA12-25038 |
0.250 |
3/8" |
0.06 inch |
400 psi |
1600 psi |
1" |
0.027 |
| PA12-27538 |
0.275 |
3/8" |
0.05 inch |
250 psi |
1000 psi |
1 1/8" |
0.023 |
| PA12-37512 |
0.375 |
1/2" |
0.06 inch |
250 psi |
1000 psi |
3 1/2" |
0.038 |
| PA12-50058 |
0.500 |
5/8" |
0.06 inch |
210 psi |
840 psi |
4 1/4" |
0.049 |
