Auxiliary Components

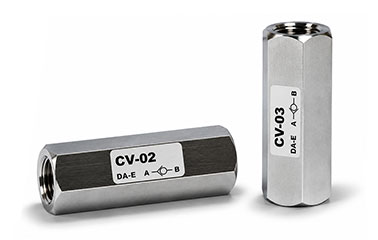

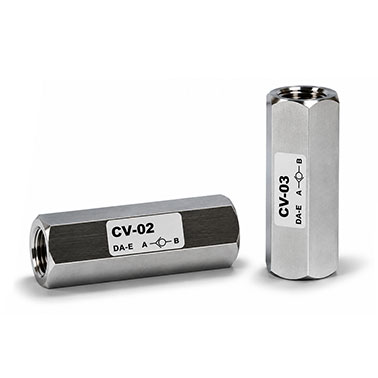

CV Check Valve

Feature

  • Standardized Specifications, Strict Quality Control, Ensuring Consistent and Reliable Performance
  • Maintains stable outlet air pressure while allowing airflow in only one direction to prevent backflow.
    It is also suitable for vacuum pressure retention and piping systems operating under low-pressure conditions.

Ordering Code

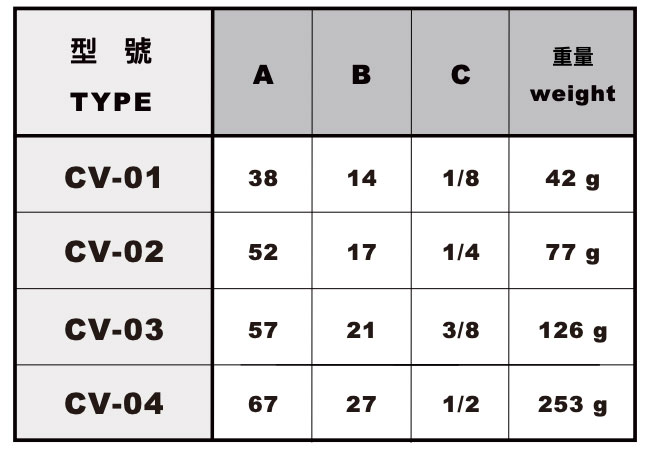

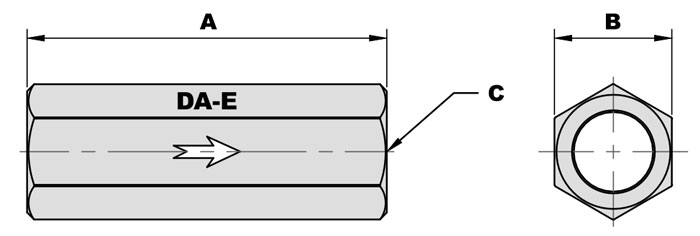

Dimensions

Specification

Type Material Fluid Max. Operating Pressure Min. Operating Pressure Min. Operating Pressure Operating Temperature
CV-01 Nickel-Plated Brass AIR 0.9 MPa 10 kPa 10 kPa 0~60°C ( With no freezing )
CV-02
CV-03
CV-04
