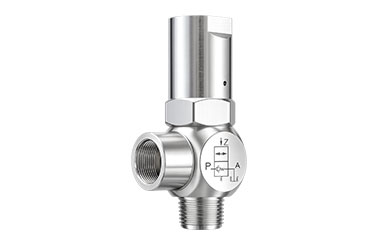

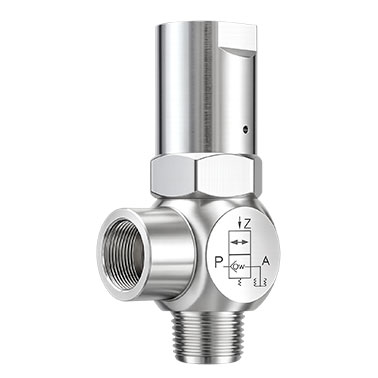

PCV Pilot Operated Check Valve
Feature
- High and Low Temperature Resistance with Stable Pressure Performance.
- Made of aluminum alloy, offering lightweight construction and good corrosion resistance.
- Standard threaded port design for easy piping and installation.
- Push-in pilot port design saves installation space and improves installation efficiency.
- Enables rapid cylinder stopping and precise positioning while effectively preventing reverse airflow.
Ordering Code

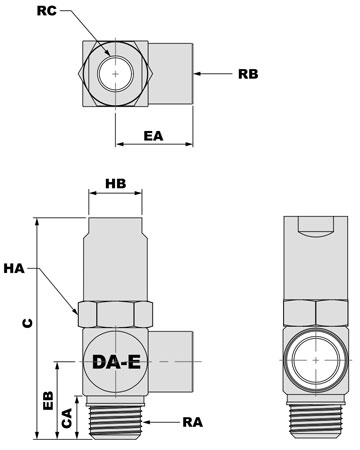

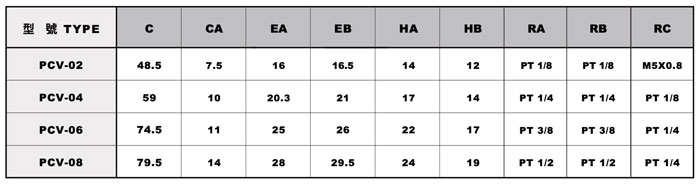

Dimensions
Specification
| Type |
Nominal Size |
Operating Frequency |
Material |
Pressure Range |
Operating Temperature |
| PCV-02 |
1/8" |
60 cycles/min |
Aluminum Alloy |
0.15 ~ 1.0 MPa |
-5~60°C / 23~140°F |
| PCV-04 |
1/4" |
60 cycles/min |
Aluminum Alloy |
0.15 ~ 1.0 MPa |
-5~60°C / 23~140°F |
| PCV-06 |
3/8" |
40 cycles/min |
Aluminum Alloy |
0.15 ~ 1.0 MPa |
-5~60°C / 23~140°F |
| PCV-08 |
1/2" |
40 cycles/min |
Aluminum Alloy |
0.15 ~ 1.0 MPa |
-5~60°C / 23~140°F |

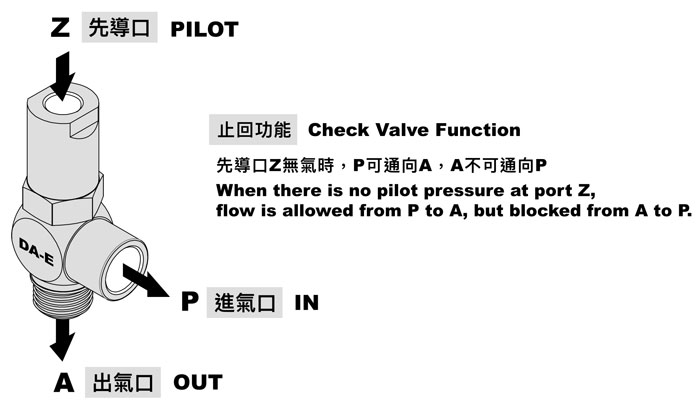

Usage Diagram

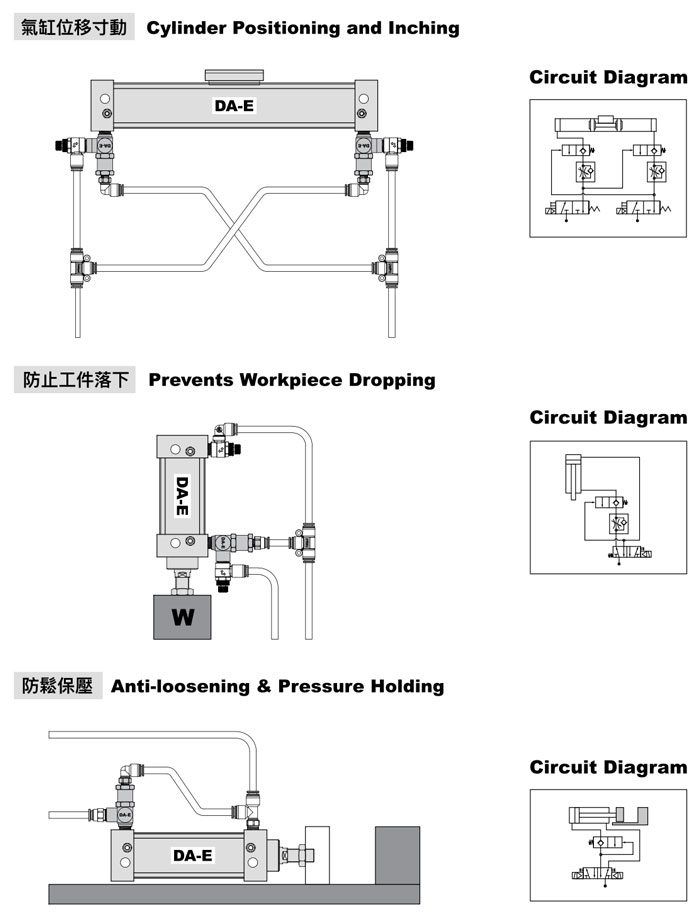

Application Diagram
