Crouzet Position Detector / Amplifier

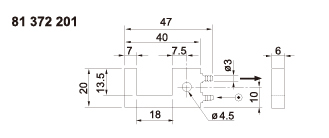

Dimensions
| Part No. | 81 371 401 | 81 372 201 | 81 374 402 | 81502230 | 81505230 |
|---|---|---|---|---|---|
| Sensor type | Proximity | Gap formula | Gap formula | Common type | Common type |
| Symbol | Forward | Negative | |||
 |
 |
 |
 |
 |
|
| Detection distance mm | 6 • 10 | 18 | 100 | – | – |
| 18 mm Gap Sensor | – | – | – | – | – |
| Air pressure bar | 0.5 → 2.5 | 0.5 → 2.5 | 0.5 → 2.5 | – | – |
| Minimum output pressure mbar | 1 | 5 | 5 | – | – |
| End of life （ Stationary part ） | ● | ● | ● | ||
| Operating temperature ° C | -20 + 70 | -20 + 70 | -20 + 70 | – | – |
| Flow consume / Supply 0.5b NI / h | 800 | 70 | 100 | – | – |
| Pressure 2.5b NI / h | 2500 | 2200 | 700 | – | – |
| Barbed connector for connection of the half pipe （ NFE 49100 ） mm |
ø 2.7 x 4 | ø 2.7 x 4 | ø 2.7 x 4 | – | – |
| Get pressure mb | – | – | – | 10 → 20 | 10 → 20 |
| Working pressure bar | – | – | – | 2 → 8 | 2 → 8 |
| Path mm | – | – | – | 2.5 | 2.5 |
| Average Flow consume NI / min | – | – | – | 5 | 5 |
| Within one hour to allow over-cut the amount of mb | – | – | – | 800 | 800 |
| Operating temperature ° C | – | – | – | -5 + 50 | -5 + 50 |
| Mechanical life work times | – | – | – | 3 x 10 6 | 3 x 10 6 |
| Weight g | 36 g | 9 g | 63 g | 150 g | 150 g |
