Three Guide Rod Pneumatic Cylinder - BN-6D
Feature
- Bores : 63 ~ 125 ( mm ) 。
- When used according to the accuracy of demand, whether to lift or guide rod bearing portion type rotating platform type are designed with a 「sliding bearing」 two 「linear ball bearings」.
- Full series are attached magnetically.

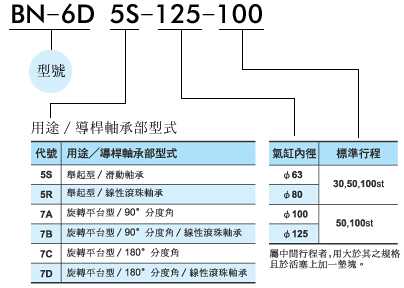

Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 63 , 80 , 100 , 125 |
| Pipe diameter size | No solenoid valve : Rc 1 / 4 , 3 / 8 With solenoid valve : φ 8 ~ φ 12 |
| Fluid | Air |
| Working pressure range | 0.1 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR rubber bumper |
| Sensor | RCB |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD 。 | ||
