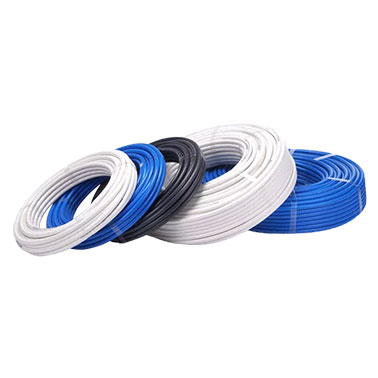

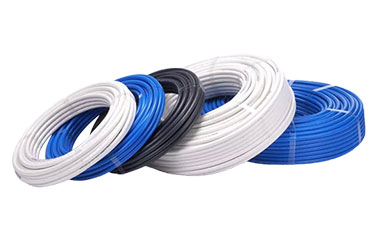

PU Flame-Retardant Tube
Feature
- Flame-retardant outer layer provides effective surface protection.
- The outer material meets the UL 94 V-0 flammability rating and features self-extinguishing performance.
- The inner tube is made of PU, making it suitable for compressed air and other pneumatic conveying applications.
- The PU inner tube maintains the flexibility and dynamic bending stability required for pneumatic piping.

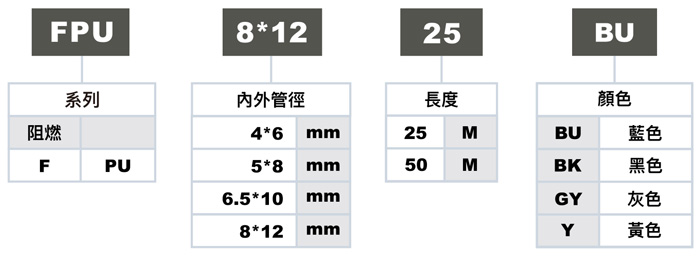

Ordering Code

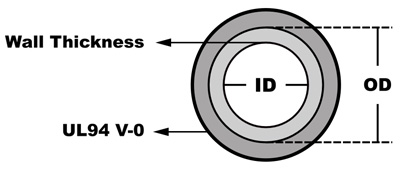

Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Inner Wall Thickness |
Jacket Thickness |
Working Pressure at 23°C |
Min. Bending Radius |
Length (m) |
| FPU-4*6 |
4 mm |
6 mm |
1 mm |
1 mm |
12 bar |
15 mm |
25 / 50 |
| FPU-5*8 |
5 mm |
8 mm |
1.5 mm |
1 mm |
12 bar |
20 mm |
25 / 50 |
| FPU-6.5*10 |
6.5 mm |
10 mm |
1.75 mm |
1 mm |
10 bar |
25 mm |
25 / 50 |
| FPU-8*12 |
8 mm |
12 mm |
2 mm |
1 mm |
10 bar |
30 mm |
25 / 50 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Inner Wall Thickness |
Jacket Thickness |
Working Pressure at 23°C |
Min. Bending Radius |
Length (ft) |
| FPU-15614 |
0.156 |
1/4" |
0.05 inch |
0.04 inch |
180 psi |
1/2" |
100 / 250 |
| FPU-196516 |
0.196 |
5/16" |
0.06 inch |
0.04 inch |
175 psi |
3/4" |
100 / 250 |
| FPU-25038 |
0.250 |
3/8" |
0.06 inch |
0.04 inch |
150 psi |
1" |
100 / 250 |
| FPU-32812 |
0.328 |
1/2" |
0.09 inch |
0.04 inch |
150 psi |
1 1/8" |
100 / 250 |
