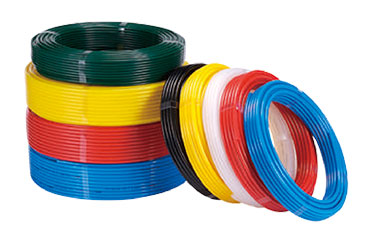

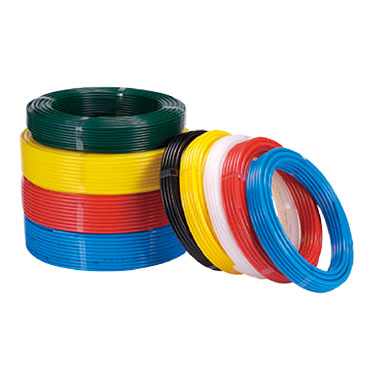

PE Low-Density Polyethylene Tube
Feature
- Excellent flexibility and broad chemical resistance.
- Excellent electrical insulation properties.
- Lightweight PE tubing, ideal for fixed piping applications or installations where tubing movement with machinery is not required.

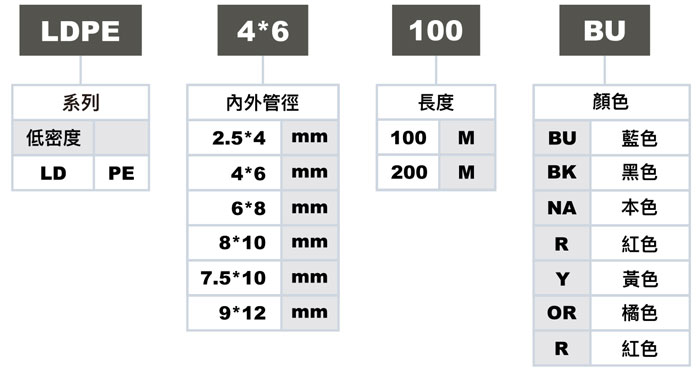

Ordering Code

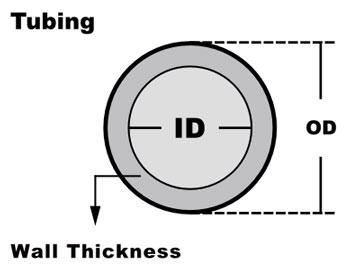

Dimensions
Metric Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 23°C |
Burst Pressure at 23°C |
Min. Bending Radius |
Weight (g/m) |
| LDPE-2*4 |
2 mm |
4 mm |
1 mm |
21 bar |
63 bar |
15 mm |
8.9 |
| LDPE-2.5*4 |
2.5 mm |
4 mm |
0.75 mm |
14 bar |
42 bar |
25 mm |
7.3 |
| LDPE-4*6 |
4 mm |
6 mm |
1 mm |
12 bar |
36 bar |
40 mm |
14.9 |
| LDPE-6*8 |
6 mm |
8 mm |
1 mm |
9 bar |
27 bar |
70 mm |
20.9 |
| LDPE-7.5*10 |
7.5 mm |
10 mm |
1.25 mm |
9 bar |
27 bar |
70 mm |
32.6 |
| LDPE-7*10 |
7 mm |
10 mm |
1.5 mm |
11 bar |
33 bar |
75 mm |
38.0 |
| LDPE-8*10 |
8 mm |
10 mm |
1 mm |
7 bar |
21 bar |
115 mm |
26.8 |
| LDPE-9*12 |
9 mm |
12 mm |
1.5 mm |
9 bar |
27 bar |
105 mm |
47.0 |
| LDPE-10*12 |
10 mm |
12 mm |
1 mm |
5 bar |
15 bar |
165 mm |
32.8 |
Inch Size Specification
| TYPE |
Tube I.D. |
Tube O.D. |
Wall Thickness |
Working Pressure at 75°F |
Burst Pressure at 75°F |
Min. Bending Radius |
Weight (lb/ft) |
| LDPE-06218 |
0.062 |
1/8" |
0.03 inch |
305 psi |
915 psi |
1/8" |
0.004 |
| LDPE-08018 |
0.080 |
5/32" |
0.02 inch |
250 psi |
750 psi |
1/8" |
0.003 |
| LDPE-106232 |
0.106 |
2/32" |
0.003 inch |
180 psi |
540 psi |
1" |
0.004 |
| LDPE-12514 |
0.125 |
1/4" |
0.06 inch |
350 psi |
1050 psi |
1" |
0.015 |
| LDPE-17014 |
0.170 |
1/4" |
0.04 inch |
150 psi |
450 psi |
1 1/4" |
0.011 |
| LDPE-187516 |
0.187 |
5/16" |
0.06 inch |
150 psi |
450 psi |
1 1/4" |
0.020 |
| LDPE-232516 |
0.232 |
5/16" |
0.04 inch |
150 psi |
450 psi |
1 1/2" |
0.014 |
| LDPE-25038 |
0.250 |
3/8" |
0.06 inch |
190 psi |
570 psi |
2" |
0.025 |
| LDPE-27538 |
0.275 |
3/8" |
0.05 inch |
150 psi |
450 psi |
2 1/2" |
0.021 |
| LDPE-37512 |
0.375 |
1/2" |
0.06 inch |
125 psi |
375 psi |
2 1/2" |
0.035 |
| LDPE-50058 |
0.500 |
5/8" |
0.06 inch |
100 psi |
300 psi |
3" |
0.046 |
| LDPE-62534 |
0.625 |
3/4" |
0.06 inch |
100 psi |
300 psi |
4" |
0.056 |
