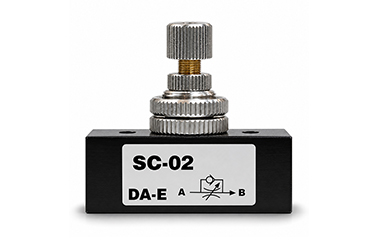

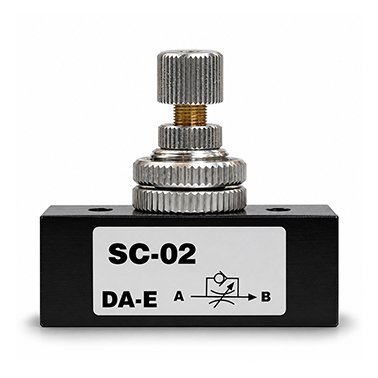

SC Aluminum Speed Controller
Feature
- Precisely regulates airflow to ensure stable speed control of pneumatic components, making it suitable for various pneumatic control systems.
- Compact in design and easy to adjust, providing stable and precise flow control.
- Aluminum alloy body provides a lightweight and durable construction for various pneumatic applications.
Ordering Code

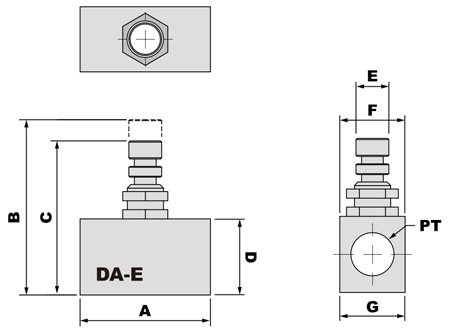

Dimensions
| Type |
A |
B |
C |
D |
E |
F |
G |
PT |
| SC-01 |
46 |
48 |
44 |
19 |
11 |
19 |
19 |
1/8 |
| SC-02 |
46 |
48 |
44 |
19 |
11 |
19 |
19 |
1/4 |
| SC-03 |
56 |
63 |
54 |
25.5 |
13 |
24.7 |
25.5 |
3/8 |
| SC-04 |
56 |
63 |
54 |
25.5 |
13 |
24.7 |
25.5 |
1/2 |
Specification
| Type |
Nominal Size |
Operating Fluid |
Pressure Range |
Operating Temperature |
Weight |
| SC-01 |
1/8" |
AIR |
0~9.9 kgf/cm² |
0~60°C / 32~140°F |
72 g |
| SC-02 |
1/4" |
70 g |
| SC-03 |
3/8" |
110 g |
| SC-04 |
1/2" |
104 g |
