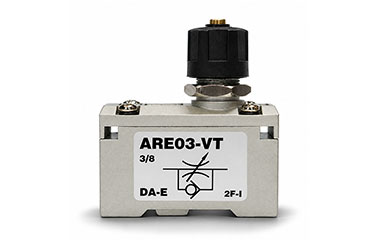

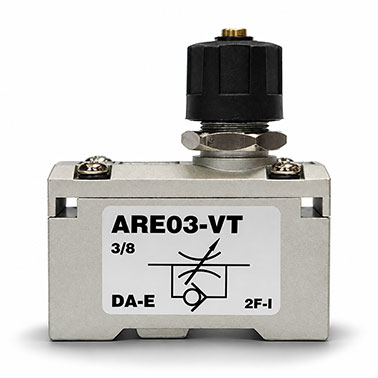

ARE Large-Flow Speed Controller
Feature
- Compact design for easy installation and flexible integration with various types of machinery and equipment.
- Suitable for low-flow applications, providing easy adjustment and stable speed control.

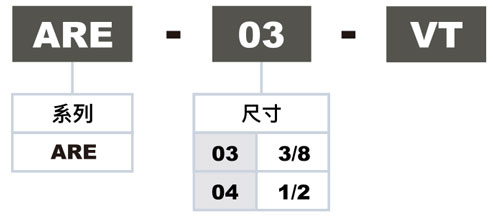

Ordering Code

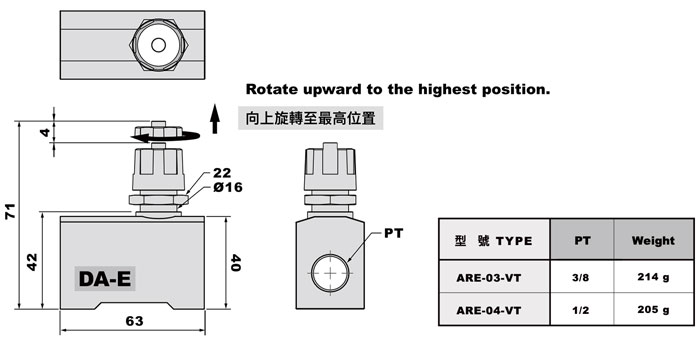

Dimensions
Specification
| TYPE | Material | Applicable Fluid | Max. Pressure | Temperature Range |
|---|---|---|---|---|
| ARE-03-VT | Aluminum Alloy | Air | 1 MPa | -5~60°C (With no freezing) |
| ARE-04-VT |
| TYPE | Free Flow Direction | Controlled Flow Direction | ||||
|---|---|---|---|---|---|---|
| Flow Rate (L/min) |
Sonic Conductance (dm³) |
Critical Pressure Ratio | Flow Rate (L/min) |
Sonic Conductance (dm³) |
Critical Pressure Ratio | |
| ARE-03-VT | 1670 | 4.6 | 0.35 | 1670 | 4.6 | 0.2 |
| ARE-04-VT | 1670 | 4.6 | 0.35 | 1670 | 4.6 | 0.2 |

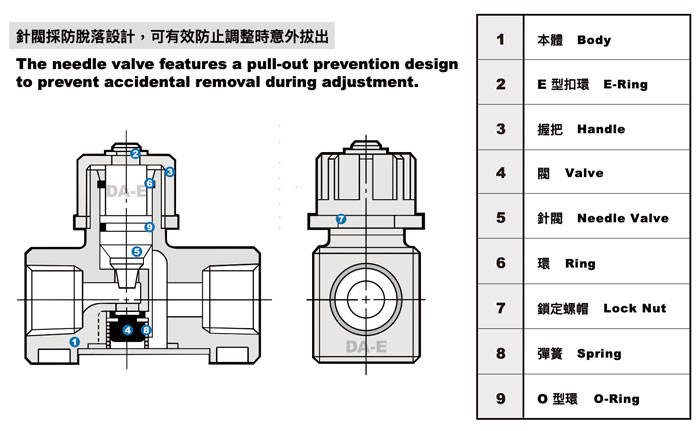

Construction Diagram

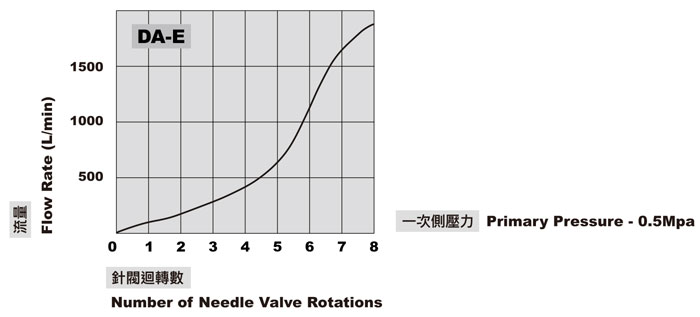

Technical Charts
