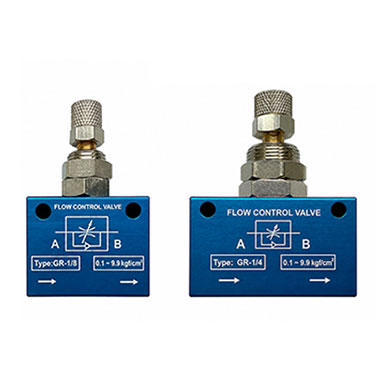

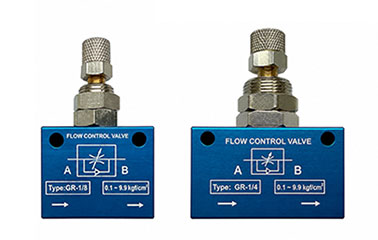

GR One-Way Precision Flow Control Valve
Feature
- Airflow can be adjusted according to application requirements for easy speed control of pneumatic components.
- Simple flow adjustment allows quick setting of the required airflow.
- Provides stable flow control for smooth operation of pneumatic components.
- Simple construction and easy installation make it suitable for various pneumatic control circuits.
Ordering Code

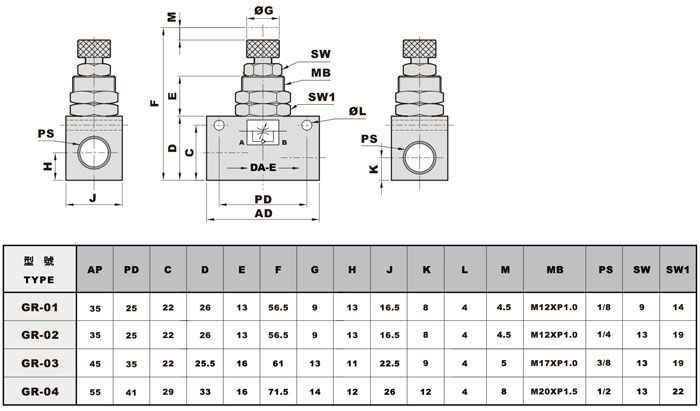

Dimensions
Specification
| TYPE |
Nominal Size |
Maximum Flow Rate (L/min) |
Applicable Fluid |
Operating Temperature |
Weight |
| A→B |
B→A |
| GR-01 |
1/8" |
0~100 |
250 |
Air |
0~60°C / 32~140°F |
60 g |
| GR-02 |
1/4" |
0~650
|
850 |
40 g |
| GR-03 |
3/8" |
0~650
|
1000 |
100 g |
| GR-04 |
1/3" |
0~1000
|
1500 |
180 g |

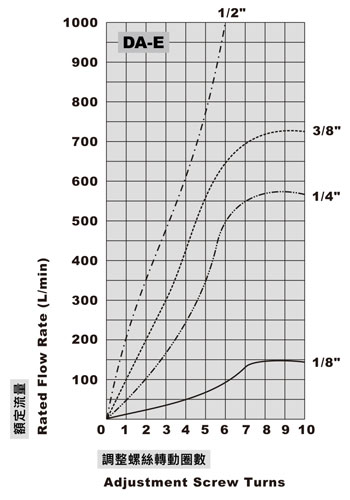

Technical Charts
