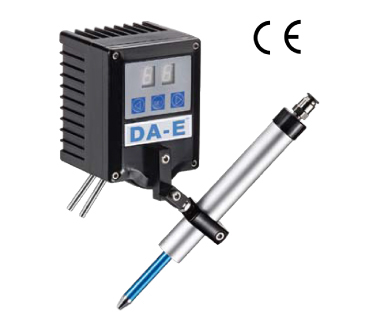

PCI - 045 Programmable Cooling Systems Perspective
Feature
- Automatic nozzle positioning, improve production efficiency.
- Increased tool life, better quality parts.
- Saving energy, improving the safety of operating personnel.
- While promoting a cleaner and healthier environment.
Ordering Code
Specification
| Model | PCI - 045 | ||||
|---|---|---|---|---|---|
| Voltage | DC 24 V | ||||
| Maximum current | 2 A | ||||
| Mounting direction | Right ( Left ) | ||||
| Maximum angle | 45 ˚ | ||||
| Minimum set angle | 1 ˚ | ||||
| Set step number | 30 Step | ||||
| Coolant nozzles | 2 | ||||
| Coolant specification | Ø 4 X Ø 6 X 60 L | ||||
| Ambient and media temperature | -5 ˚ ~ 60 ˚ | ||||
| Housing material | Aluminum alloy | ||||
Nozzle Selection
Equipped with CS - 50 telescopic nozzle MQL MQL system can be improved in CNC machining centers need to use its nozzle located in the front-end tool, the tool length is not the moment to replace the nozzle without operator readjusted.
Optional Accessories
Installation Example
Application Examples
