MTH Oil Converter ( Oil Cylinder )
Feature
- Selection ISO VG32 hydraulic oil.
- Displacement amount to 50% volume of the reserve amount better.
- To the oil does not exceed the upper limit position of principle.
- Installation position in the vertical direction, and it must be higher than the actuating cylinders.
Ordering Code
| 1 Series | MTH: standard MTR: speed type |
| 2 Cylinder bore | ø 80 , ø 100 , ø 150 |
| 3 Conversion bobbin length | |
| 4 Fixed cylinder | LB: tripod-shaped FB: mounting plate |
Specification
| Model | MTH - 80 | MTH - 100 | MTH-150 | MTR - 80 | MTR - 100 |
|---|---|---|---|---|---|
| Pressure caliber | 3 / 8 PT | 3 / 8 PT | 1 / 2 PT | 3 / 8 PT | 3 / 8 PT |
| Hydraulic caliber | 3 / 8 PT | 3 / 8 PT | 1 / 2 PT | 1 / 2 PT | 1 / 2 PT |
| Working pressure | 9.9 / kgf / cm 2 | ||||
| Ensure pressure | 15 / kgf / cm 2 | ||||
| Adjustment flow | \ | \ | 0 - 70 I / min | 0 - 125 I / min | |
| Maximum flow | 80 I / min | 100 I / min | 125 I / min | 100 I / min | 125 I / min |
| Fluid | Hydraulic actuator oil ISO VG32 | ||||

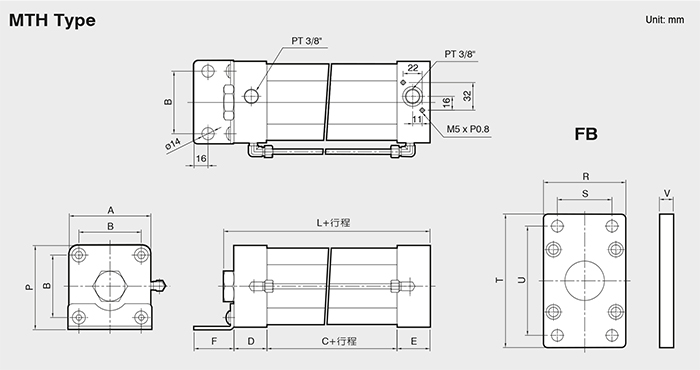

Dimensions
| Bore / Size |
A | B | C | D | E | F | G | H | L | P | R | S | T | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTH 80 | 95 | 72 | 30 | 38 | 38 | 46 | 118 | 98 | 95 | 63 | 154 | 126 | 16 | ||
| MTH 100 | 110 | 89 | 30 | 38 | 38 | 46 | 118 | 113 | 115 | 75 | 186 | 150 | 16 | ||
| MTH 150 | 170 | 130 | 50 | 40 | 40 | 60 | 185 | 177 | 170 | 130 | 245 | 210 | 16 | ||
| MTR 80 | 95 | 72 | 30 | 38 | 45 | 46 | 38 | 50 | 118 | 98 | 95 | 63 | 154 | 126 | 16 |
| MTR 100 | 110 | 89 | 30 | 38 | 45 | 46 | 38 | 50 | 118 | 113 | 115 | 75 | 186 | 150 | 16 |
