SR Hydraulic Steady Speed
Feature
- Pneumatic systems to replace the hydraulic system to reduce costs.
- Forward speed can be adjusted, and have scored indication.
- Small size, easy installation.
Ordering Code
Dimensions Fig.
| Type |
SR - 30 |
SR - 60 |
SR - 100 |
| A |
30 |
60 |
100 |
| B |
170 |
217 |
298 |
| Stroke |
30 |
60 |
100 |
| Return way |
Spring return |
| Load |
30 ~ 200 kg |
| Speed |
0.5 mm / sec ~ 30 mm / sec |
| Operating temperature |
0 ° C ~ 80 ° C |

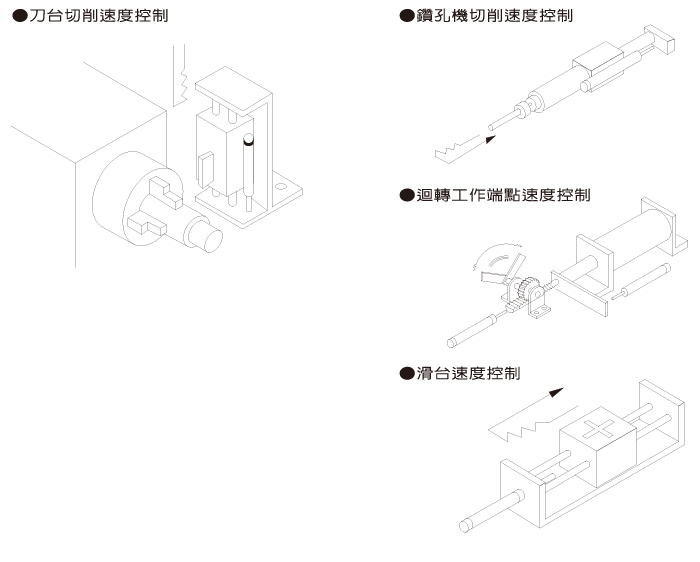

Use Example
