SH Manual Valve
Ordering Code

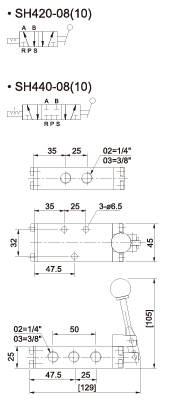

Dimensions
Specification
| Usually flag | SH 310 - 08（ 10 ） | SH 320 - 08（ 10 ） | SH 410 - 08（ 10 ） | SH 420 - 08（ 10 ） | SH 430 - 08（ 10 ） | SH 440 - 08（ 10 ） |
|---|---|---|---|---|---|---|
| Number of positions | Three two | Three two | Five two | Five two | Five three | Five three |
| Switch mode | Spring return | Manual reset | Spring return | Manual reset | Spring return | Manual reset |
| Port size | 08 = PT 1 / 4 " 10 = PT 3 / 8 " | |||||
| Effective area | 28 mm 2（ 1.56 CV ） | |||||
| Fluid | Air | |||||
| Pressure range | 0 ~ 9 kgf / cm 2 | |||||
| Operating temperature | 5 ~ 60 ° C （ 41 ~ 140 ° F ） | |||||
| Withstanding pressure | 10.5 kgf / cm 2 | |||||
| Operating angle | 20 ° | |||||
| Weight | 318 g | 282 g | 380 g | 346 g | 385 g | 368 g |
