V. R. L. A. Scroll Actuated Valve ( 1 / 8 )

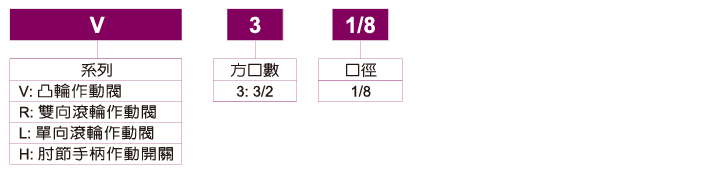

Ordering Code
Dimensions
Specification
| Usually flag | V - 3 - 1 / 8 | R - 3 - 1 / 8 | L - 3 - 1 / 8 | H - 3 - 1 / 8 |
|---|---|---|---|---|
| Port size | （ 1 / 8 ） | |||
| Number of positions | （ 2 / 2 ） （ 3 / 2 ） | |||
| Fluid | Air | |||
| Working pressure | 0 ~ 8 kgf / cm 2 | |||
| Operating temperature | 0 ~ 60 ° C | |||
| Maximum flow | NC : 300 L / min ，NO : 320 L / min | |||
| Weight | 52 g | 64 g | 68 g | 58 g |
