OR Patented Gas-Liquid Or Gate
Feature
- Patented two-fluid or gate.
Pressure flow channel unidirectional rubber piston design.
Advantageously the gas flow smoothly.
None of the noise generated pressure flow.
More effective to prevent liquid reflux.
For high-speed spindle center effluent and the like.

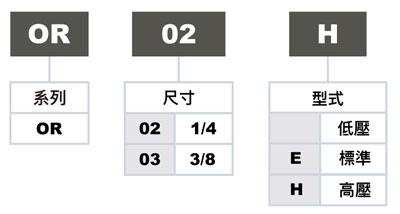

Ordering Code

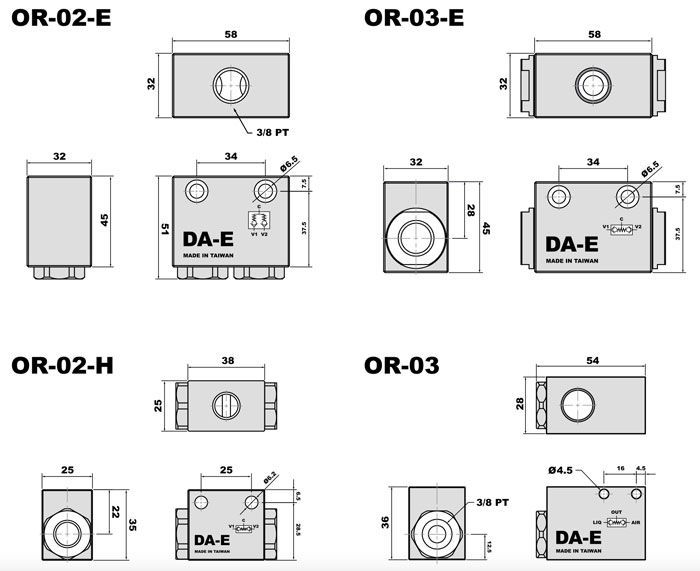

Dimensions

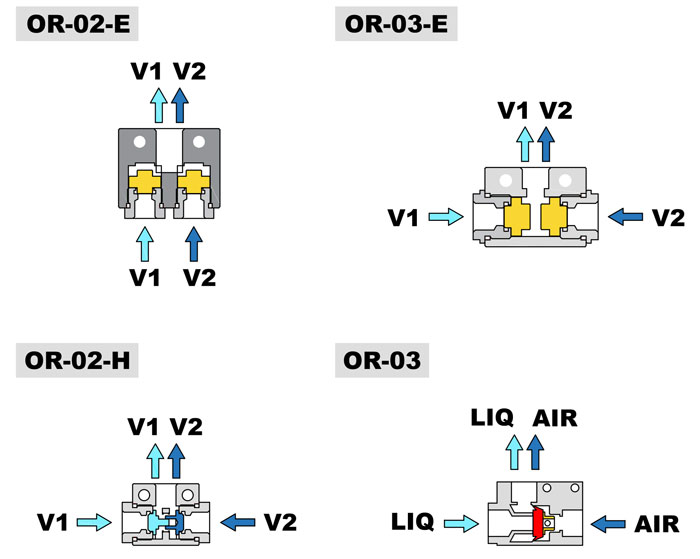

Schematic Diagram
Specification
| Type |
Nominal Size |
Port Size |
Material |
Pressure Range |
Fluid Temperature |
| OR-02-E |
1/4" |
8 mm |
SUS304 / Aluminum Alloy |
1~100 bar |
-10~60°C / 14~140°F |
| OR-02-H |
1/4" |
8 mm |
SUS304 |
1~210 bar |
-10~60°C / 14~140°F |
| OR-03 |
3/8" |
8 mm |
Aluminum Alloy |
1~40 bar |
-10~60°C / 14~140°F |
| OR-03-E |
3/8" |
10 mm |
SUS304 / Aluminum Alloy |
1~100 bar |
-10~60°C / 14~140°F |
