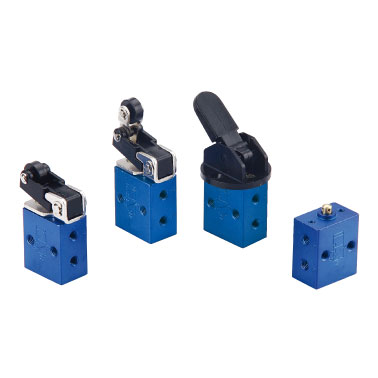

V. R. L. H. Mechanically Actuated Valves
Ordering Code
Dimensions
Specification
| Usually flag | V 2 M 5 | R 2 M 5 | L 2 M 5 | H 2 M 5 | V 3 M 5 | R 3 M 5 | L 3 M 5 | H 3 M 5 |
|---|---|---|---|---|---|---|---|---|
| Port size | （ M 5 ） | |||||||
| Number of positions | （ 2 / 2 ） | （ 3 / 2 ） | ||||||
| Fluid | Air | |||||||
| Working pressure | 0 ~ 8 kgf / cm 2 | |||||||
| Operating temperature | 0 ~ 60 ° C | |||||||
| Maximum flow | 110 NI / min | |||||||
| Weight | 34 g | 48 g | 52 g | 42 g | 34 g | 48 g | 52 g | 42 g |
