T. E. J. Patented Mechanical Actuation Valve
Feature
- Adjust the distance and angle.
- Actuation range, suitable for non-linear or special mechanical structure.
Ordering Code

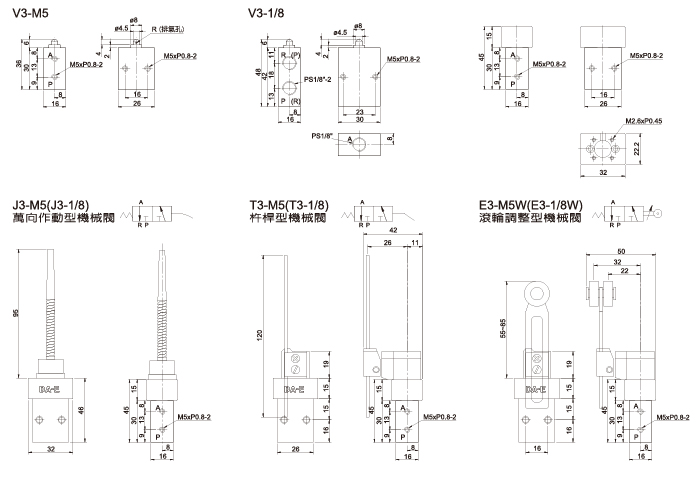

Dimensions
Specification
| Usually flag |
T 3 M 5 |
E 3 M 5 |
J 3 M 5 |
T 3 - 1 / 8 |
E 3 - 1 / 8 |
J 3 - 1 / 8 |
| Port size |
M 5 |
1 / 8 |
| Number of positions |
（ 2 / 2 ） （ 3 / 2 ） |
| Fluid |
Air |
| Working pressure |
0 ~ 8 kgf / cm 2 |
| Operating temperature |
0 ~ 60 ° C |
| Maximum flow |
110 NI / min |
NC : 300 L / min ，NO : 320 L / min |
| Weight |
118 g |
128 g |
72 g |
135 g |
145 g |
92 g |
