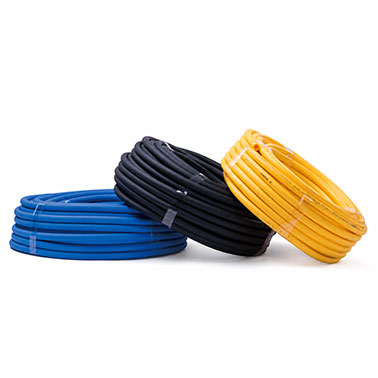

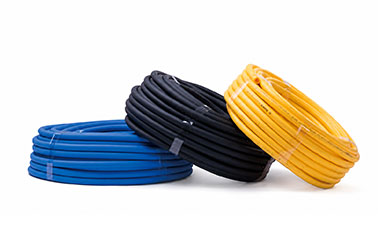

Cold-Resistant Reinforced PVC Hose
Feature
- Three-layer reinforced construction helps control diameter expansion under working pressure, maintaining hose dimensional stability.
- Formulated with a cold-resistant PVC compound to maintain excellent flexibility in low-temperature environments.
- Optimized material formulation and reinforced construction provide both low-temperature flexibility and the pressure resistance required for pneumatic systems.
- Low memory characteristics make it suitable for applications requiring repeated pulling, coiling, or repositioning of air supply lines.

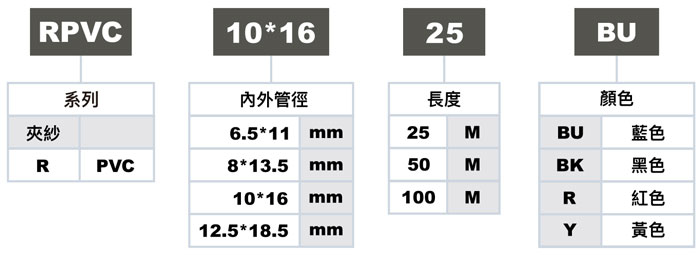

Ordering Code
Dimensions
Metric Size Specification
| TYPE | Tube I.D. | Tube O.D. | Inner Wall Thickness | Working Pressure at 23°C | Weight (g/m) |
Length (m) |
|---|---|---|---|---|---|---|
| RPVC-6.5*11 | 6.5 mm | 11 mm | 2.25 mm | 20 bar | 80 | 50 / 100 |
| RPVC-8*13.5 | 8 mm | 13.5 mm | 2.75 mm | 20 bar | 121 | 50 / 100 |
| RPVC-10*16 | 10 mm | 16 mm | 3 mm | 20 bar | 159 | 25 / 50 |
| RPVC-12.5*18.5 | 12.5 mm | 18.5 mm | 3 mm | 20 bar | 190 | 25 / 50 |
Inch Size Specification
| TYPE | Tube I.D. | Tube O.D. | Inner Wall Thickness | Working Pressure at 75°F | Weight (lb/ft) |
Length (ft) |
|---|---|---|---|---|---|---|
| RPVC-14433 | 1/4" | 0.433 | 0.09 inch | 300 psi | 0.054 | 100 / 500 |
| RPVC-516531 | 5/16" | 0.531 | 0.11 inch | 300 psi | 0.081 | 100 / 500 |
| RPVC-38590 | 3/8" | 0.590 | 0.11 inch | 300 psi | 0.092 | 100 / 500 |
| RPVC-12728 | 1/2" | 0.728 | 0.11 inch | 300 psi | 0.128 | 100 / 300 |
