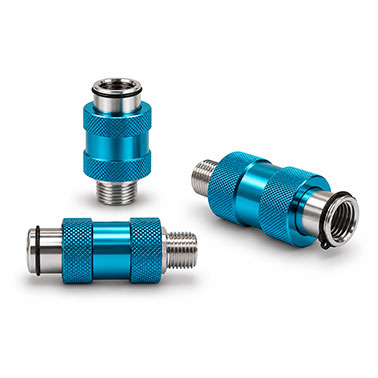

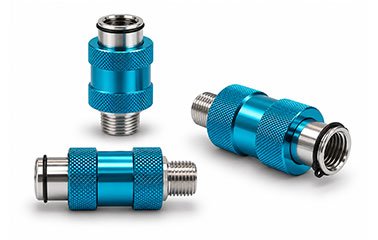

HSV Slide Valve
Feature
- Manual slide operation provides quick and easy control of air supply and exhaust.
- Anodized aluminum alloy body provides excellent wear and corrosion resistance.
- Compact design and easy installation, with multiple male and female thread connection options, suitable for various pneumatic equipment and piping systems.

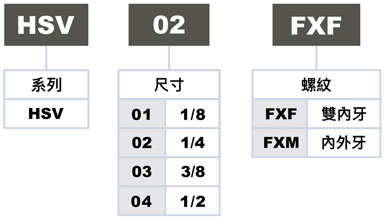

Ordering Code

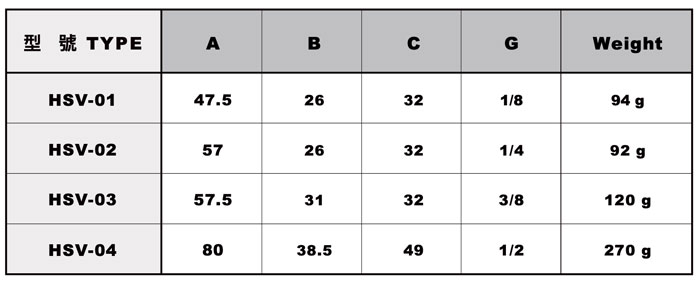

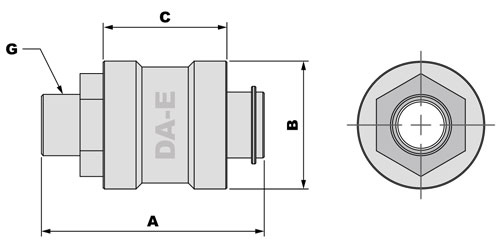

Dimensions
Specification
| TYPE |
Thread |
Material |
Applicable Fluid |
Pressure Range |
Temperature Range |
| HSV-01 |
PT 1/8 |
Aluminum Alloy |
AIR |
0-10 kgf/cm² |
0~60°C / 32~140°F |
| HSV-02 |
PT 1/4 |
| HSV-03 |
PT 3/8 |
| HSV-04 |
PT 1/2 |
