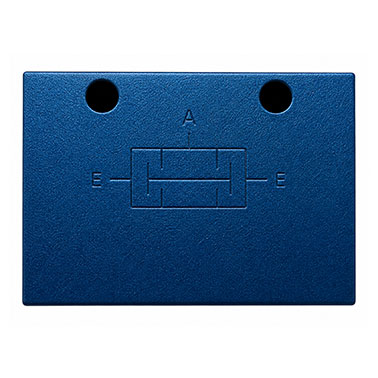

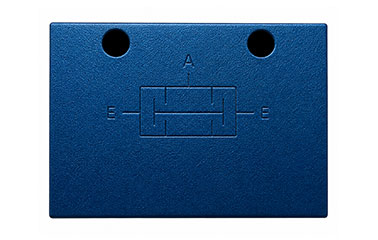

AND Dual-Pressure Valve
Feature
- Standardized Specifications, Strict Quality Control, Ensuring Consistent and Reliable Performance
Ordering Code

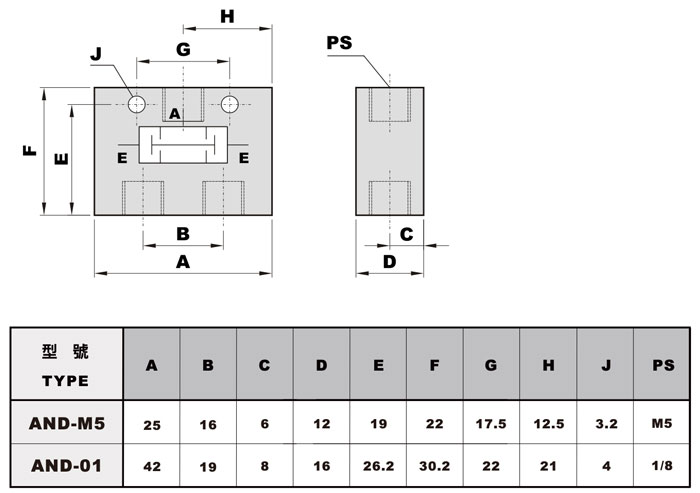

Dimensions
This AND valve has two input ports ( E1 and E2 ). Both inputs must receive a signal before the output port ( A ) generates a signal. It is used in pneumatic logic and safety circuits.
Specification
| TYPE | Nominal Size | Flow Rate (L/min) | Weight |
|---|---|---|---|
| AND-M5 | M5 | 110 | 20 g |
| AND-01 | 1/8 | 550 | 40 g |
