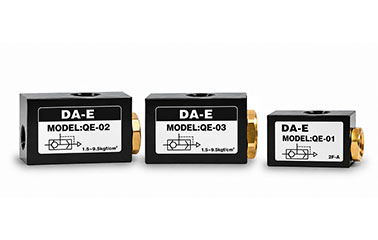

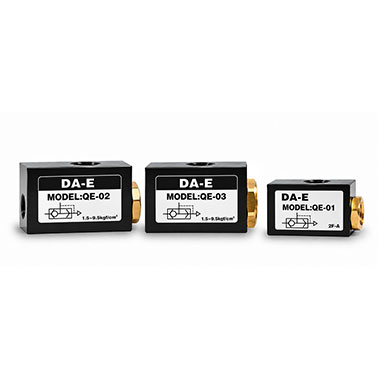

QE Quick Exhaust Valve
Feature
- Rapidly exhausts residual air from the cylinder to increase cylinder operating speed.
- Reduces exhaust back pressure and piping resistance for faster and smoother cylinder operation.
- Can be installed close to the cylinder to shorten the exhaust path and improve exhaust efficiency.
- Simple construction and fast response, suitable for high-frequency pneumatic control systems.
Ordering Code

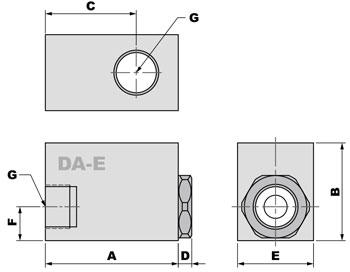

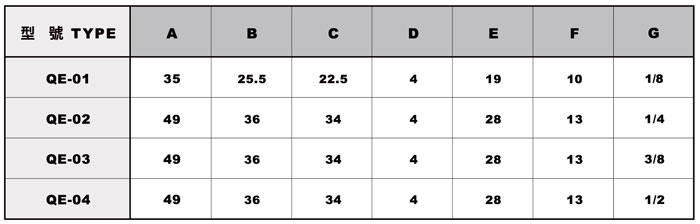

Dimensions
Specification
| TYPE |
Thread |
Material |
Applicable Fluid |
Pressure Range |
Temperature Range |
| QE-01 |
PT 1/8 |
Aluminum Alloy |
AIR |
0-10 kgf/cm² |
0~60°C / 32~140°F |
| QE-02 |
PT 1/4 |
| QE-03 |
PT 3/8 |
| QE-04 |
PT 1/2 |
