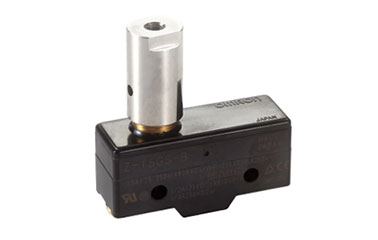

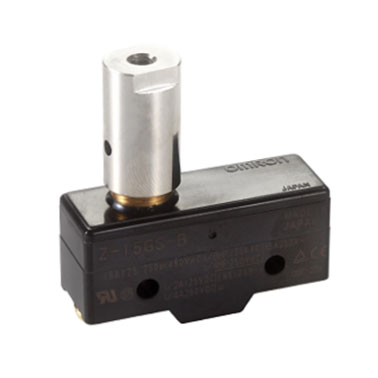

A05-680 Pressure Switch
Feature
- Standardized Specifications, Strict Quality Control, Ensuring Consistent and Reliable Performance
- Converts pneumatic pressure signals into electrical switching signals.
Featuring a wide operating pressure range and compact design, it is suitable for pressure detection, pressure confirmation, and automatic control circuits in pneumatic systems.
Ordering Code

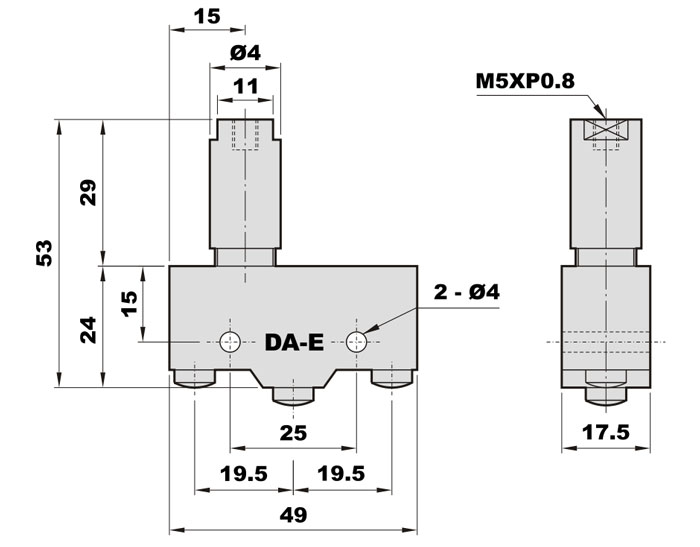

Dimensions
Specification
| TYPE |
Nominal Size |
Operating Pressure |
Allowable Voltage (V) |
Weight |
| A-05-680 |
M5XP0.8 |
0.5~10.2 kgf/cm² |
250 V |
60 g |
