U Series To The Oil Cooler
Feature
- Do not turn off the gas supply and refueling stop line.
- A fine mist to the oil supply effectively protect and extend the life of parts.

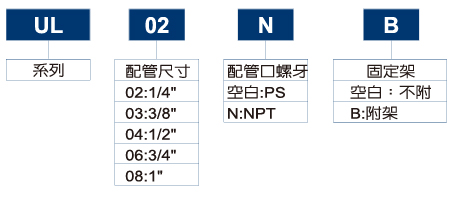

Ordering Code
Dimensions
Specification
| Model | UL - 02 | UL - 03 | UL - 04 | UL - 06 | UL - 08 |
|---|---|---|---|---|---|
| Pipe size | 1 / 4 " | 3 / 8 " | 1 / 2 " | 3 / 4 " | 1 " |
| Fluid | Compressed air | ||||
| Body material | Engineering plastics | Aluminum die-casting | |||
| Cup material | Engineering plastics （ Standard equipment ） | Engineering plastics | |||
| Operating pressure | 0.5 ~ 8.0 kgf / cm 2 | 0.5 ~ 9.9 kgf / cm 2 | |||
| The maximum intake pressure | 8.0 kgf / cm 2 | 12 kgf / cm 2 | |||
| Maximum flow （ I / min ） |
2449 | 2525 | 4310 | 8400 | 9000 |
| Ambient temperature | 370 g | -10 C ° ~ 60 ° C | |||
| Oil recommendation rating | ISO - VG 32 | ||||
| Cup oil capacity | 50 cc | 125 cc | 235 cc | ||
| Weight | 165 g | 490 g | 480 g | 1095 g | 1085 g |
