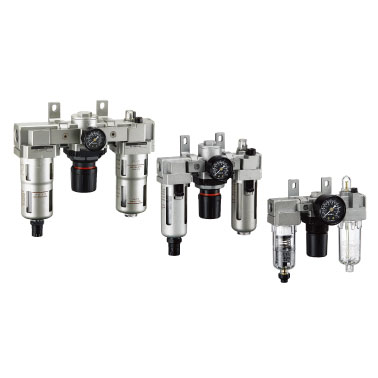

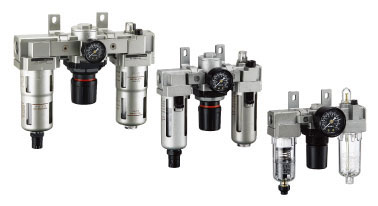

PC F.R.L Combination Unit
Feature
- Quick and efficient removal of water and particles
- Quick and easy replacement of 10 μm / 5 μm filter elements

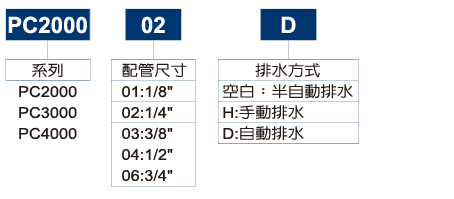

Ordering Code
Dimensions
Specification
| TYPE | PC 2000 - 01 | PC 2000 - 02 | PC 3000 - 02 | PC 3000 - 03 | PC 4000 - 04 | PC 4000 - 06 |
|---|---|---|---|---|---|---|
| Port Size | G 1 / 8 | G 1 / 4 | G 1 / 4 | G 3 / 8 | G 1 / 2 | G 3 / 4 |
| Maximum Supply Pressure | 15 kgf / cm2 | |||||
| Max. Operating Pressure | 9.9 kgf / cm2 | |||||
| Min. Operating Pressure | N.C. - 1.5 kgf/cm2 | |||||
| Regulating Range | 0.5 ~ 8.5 kgf / cm2 | |||||
| Port Size for Pressure Gauge | G 1 / 8 | G 1 / 8 | G 1 / 8 | G 1 / 8 | G 1 / 4 | G 1 / 4 |
| Max. Air Flow Rate | 500 NL / min | 500 NL / min | 1700 NL / min | 1700 NL / min | 5600 NL / min | 6200 NL / min |
| Ambient & Media Temperature | -5 ~ 60 °C ( With no freezing ) | |||||
| Filtration Rating | Standard: 5 µm Option: 2 µm, 10 µm |
|||||
| Recommended Oil | ISO VG32 | |||||
| Bowl Material | Polycarbonate | |||||
| Weight | 520 g | 520 g | 1200 g | 1200 g | 2260 g | 2260 g |
* For Round Pressure Gauges Only
