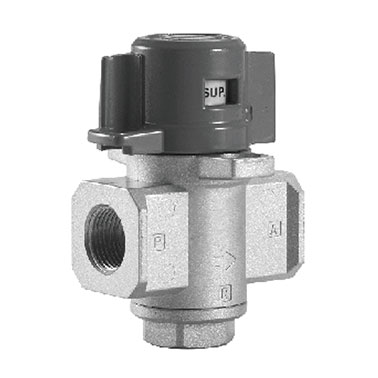

PHS 3-port Residual Pressure Relief Valve

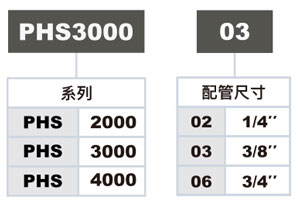

Ordering Code

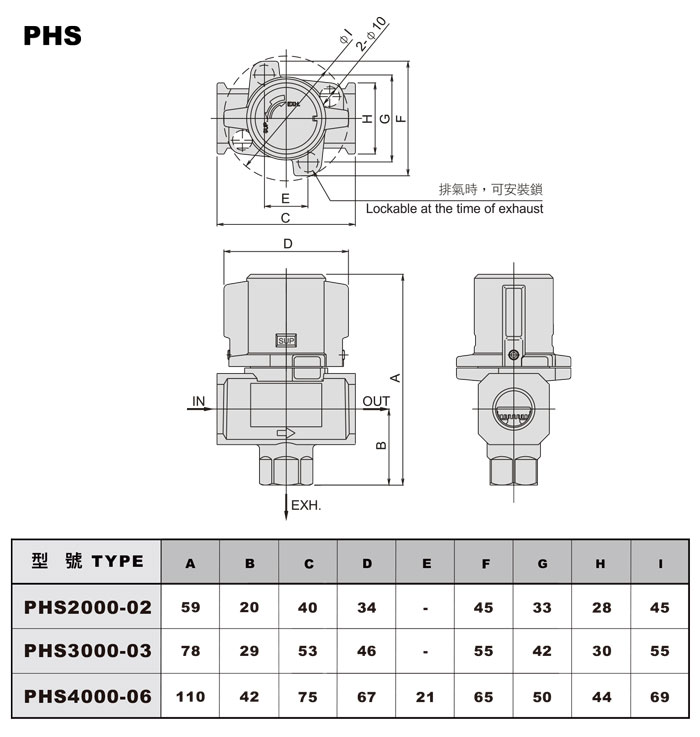

Dimensions
Specification
| TYPE |
PHS2000 |
PHS3000 |
PHS4000 |
| IN / OUT Bore Size |
G 1/4 |
G 3/8 |
G 3/4 |
| EXH Bore Size |
G 1/8 |
G 1/4 |
G 1/2 |
| IN → OUT Effective Area |
14 mm2 |
31 mm2 |
77 mm2 |
| OUT → EXH Effective Area |
16 mm2 |
29 mm2 |
49 mm2 |
| IN → OUT Cv |
0.76 |
1.68 |
1.73 |
| OUT → EXH Cv |
0.87 |
1.57 |
2.66 |
