PL Lubricator
Feature
- Provides a fine oil mist for effective lubrication, protecting components and extending service life
Ordering Code

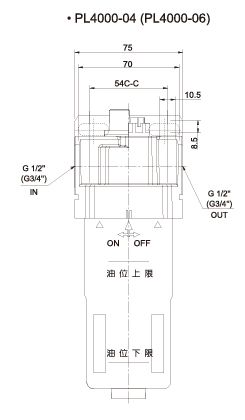

Dimensions
Specification
| TYPE |
PL2000-01 |
PL2000-02 |
PL3000-02 |
PL3000-03 |
PL4000-04 |
PL4000-06 |
| PORT SIZE |
G 1/8 |
G 1/4 |
G 1/4 |
G 3/8 |
G 1/2 |
G 3/4 |
| Maximum Supply Pressure |
15 kgf/cm2 |
| Max. Operating Pressure |
9.9 kgf/cm2 |
| Min. Flow Rate |
15 NL/min |
| Rate Flow ( ANR ) |
15 ℓ/min |
15 ℓ/min |
30 ℓ/min |
40 ℓ/min |
50 ℓ/min |
50 ℓ/min |
| Fluid |
Air |
| Ambient & Media Temperature |
-5 ~ 60 °C ( With no freezing ) |
| Recommended Oil |
ISO VG32 |
| Bowl Material |
Polycarbonate |
| Weight |
140 g |
140 g |
640 g |
640 g |
700 g |
700 g |
