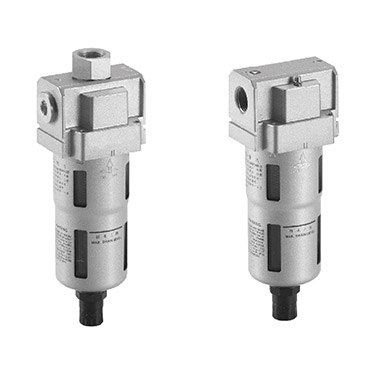

PAD Auto Drain Valve
Feature
- Automatic drain. No manual operation required.
- Standard steel protective guard for enhanced dust protection, durability, and reliability.

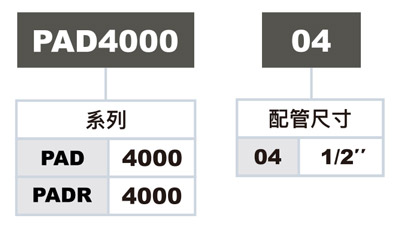

Ordering Code

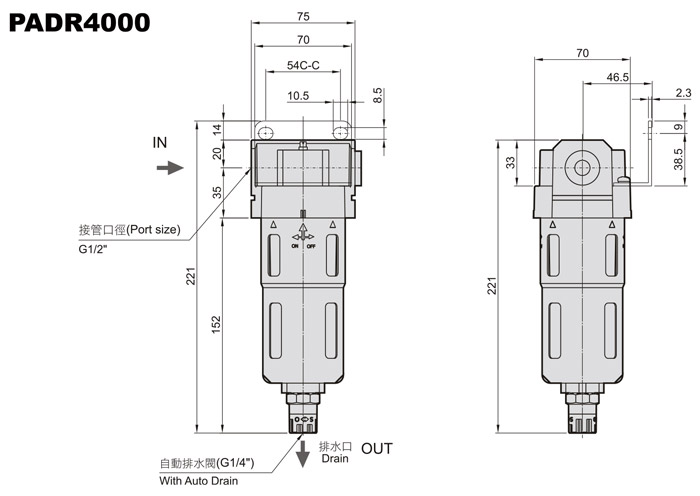

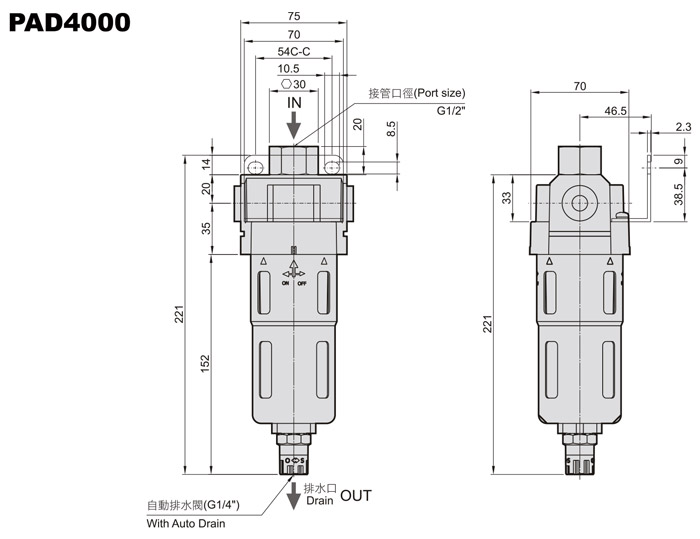

Dimensions
Specification
| TYPE |
PAD4000 |
PADR4000 |
| PORT SIZE |
G 1/2 |
| Maximum Supply Pressure |
15 kgf/cm2 |
| Max. Operating Pressure |
10 kgf/cm2 |
| Regulating Range |
1 ~ 9.5 kgf/cm2 |
| Ambient & Media Temperature |
-5 ~ 60°C ( With no freezing )
|
| Drain Port Size |
G 1/4 |
| Weight |
680 g |
620 g |
