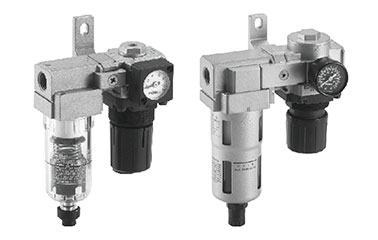

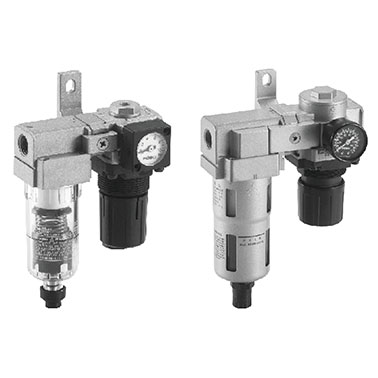

PC20 F.R.L Combination Unit
Feature
- Quick and efficient removal of water and particles
- Quick and easy replacement of 10 μm / 5 μm filter elements

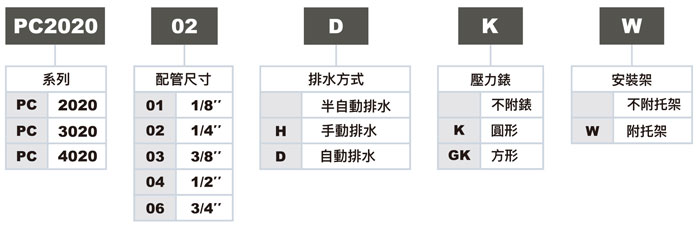

Ordering Code

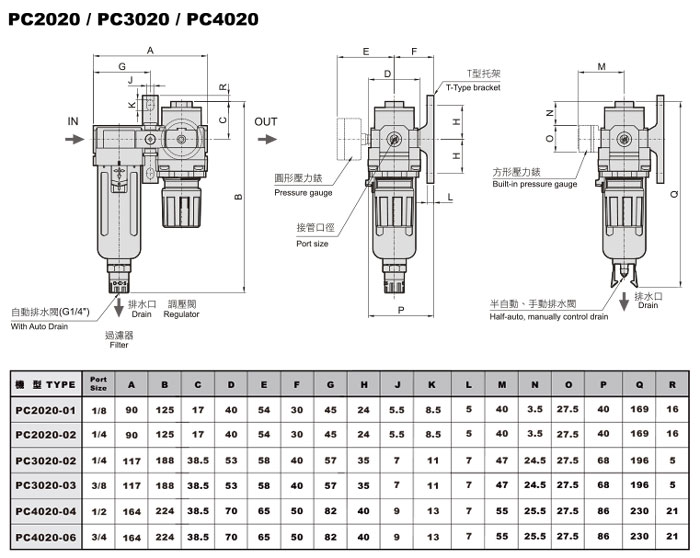

Dimensions
Specification
| TYPE | PC2020-01 | PC2020-02 | PC3020-02 | PC3020-03 | PC4020-04 | PC4020-06 |
|---|---|---|---|---|---|---|
| Port Size | G 1 / 8 | G 1 / 4 | G 1 / 4 | G 3 / 8 | G 1 / 2 | G 3 / 4 |
| Maximum Supply Pressure | 15 kgf / cm2 | |||||
| Max. Operating Pressure | 9.9 kgf / cm2 | |||||
| Min. Operating Pressure | N.C. - 1.5 kgf / cm2 | |||||
| Regulating Range | 0.5 ~ 8.5 kgf / cm2 | |||||
| Port Size for Pressure Gauge | G 1 / 8 | G 1 / 8 | G 1 / 8 | G 1 / 8 | G 1 / 4 | G 1 / 4 |
| Fluid | Air | |||||
| Ambient & Media Temperature | -5 ~ 60 °C ( With no freezing ) | |||||
| Filtration Rating | Standard: 5 µm Option: 2 µm, 10 µm |
|||||
| Recommended Oil | ISO VG32 | |||||
| Bowl Material | Polycarbonate | |||||
| Weight | 350 g | 350 g | 750 g | 750 g | 1500 g | 1500 g |
* For Round Pressure Gauges Only
