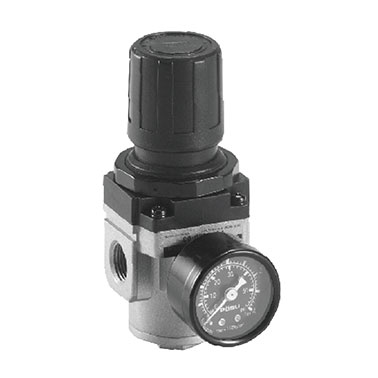

PRP Direct Acting Precision Regulator

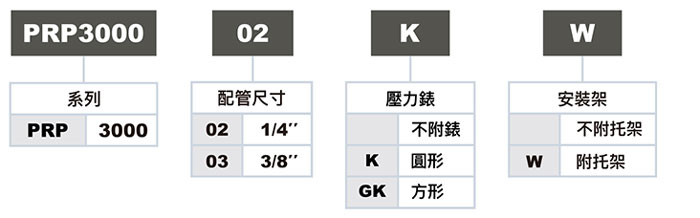

Ordering Code

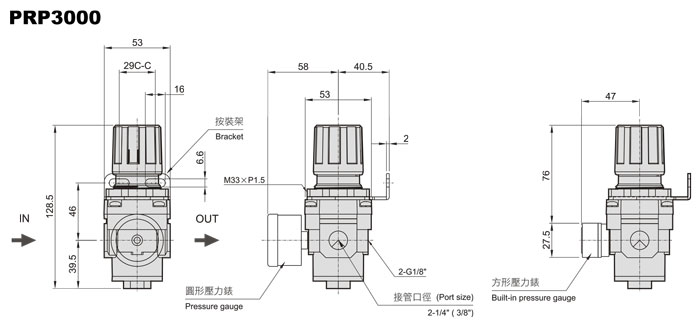

Dimensions
Specification
| TYPE | PRP3000-02 | PRP3000-03 |
|---|---|---|
| PORT SIZE | G 1/4 | G 3/8 |
| Maximum Supply Pressure | 12 kgf/cm2 | |
| Max. Operating Pressure | 8 kgf/cm2 | |
| Regulating Range | 0.05 ~ 6 kgf/cm2 | |
| Port Size For Pressure Gauge | G 1/8 | |
| Fluid | Air | |
| Ambient & Media Temperature | -5 ~ 60°C (With no freezing) | |
| Setting Sensitivity | 0.01 kgf/cm2 | |
| Weight | 400 g | |
