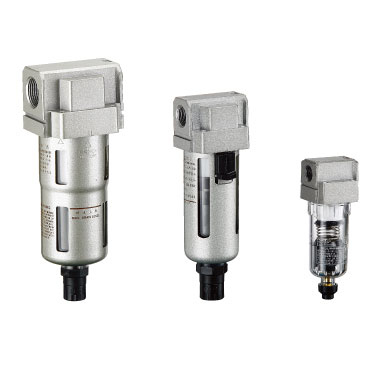

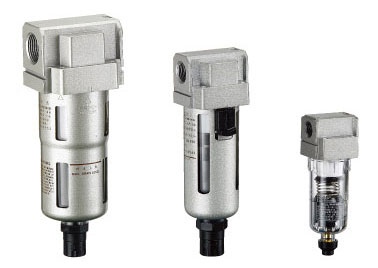

PF Air Filter
Feature
- Quick and efficient removal of water and particles
- Quick and easy replacement of 10 μm / 5 μm filter elements

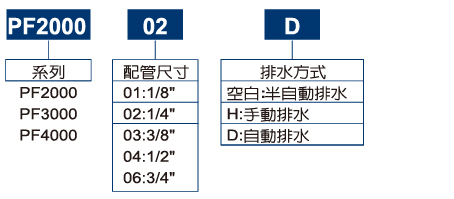

Ordering Code

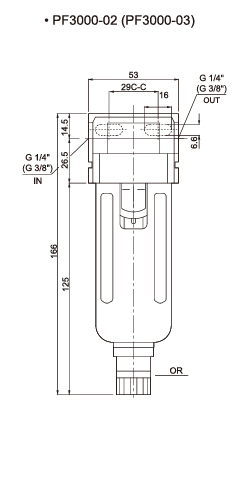

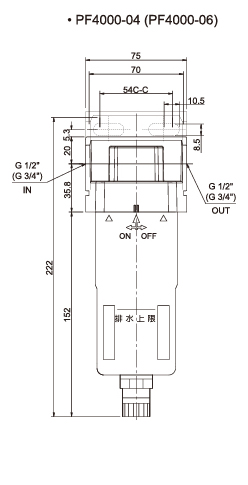

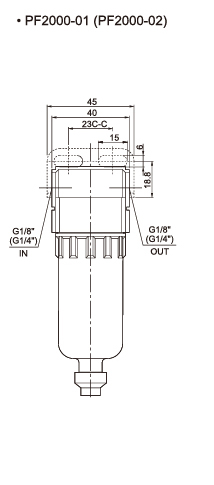

Dimensions
Specification
| TYPE |
PF2000-01 |
PF2000-02 |
PF3000-02 |
PF3000-03 |
PF4000-04 |
PF4000-06 |
| Port Size |
G 1 / 8 |
G 1 / 4 |
G 1 / 4 |
G 3 / 8 |
G 1 / 2 |
G 3 / 4 |
| Maximum Supply Pressure |
15 kgf / cm2 |
| Max. Operating Pressure |
9.9 kgf / cm2 |
| Min. Operating Pressure |
N.C. - 1.5 kgf/cm2 |
| Regulating Range |
0.5 ~ 8.5 kgf / cm2 |
| Max. Air Flow Rate |
500 NL / min |
500 NL / min |
1700 NL / min |
1700 NL / min |
6200 NL / min |
8200 NL / min |
| Fluid |
Air |
| Ambient & Media Temperature |
-5 ~ 60 °C (With no freezing) |
| Nominal Filtration Rating |
PF: 5 µm / PFM: 1 µm (95% filtration efficiency) |
| Bowl Capacity |
15 cm3 |
15 cm3 |
20 cm3 |
20 cm3 |
45 cm3 |
45 cm3 |
| Bowl Material |
Polycarbonate |
| Weight |
150 g |
150 g |
300 g |
300 g |
600 g |
600 g |
